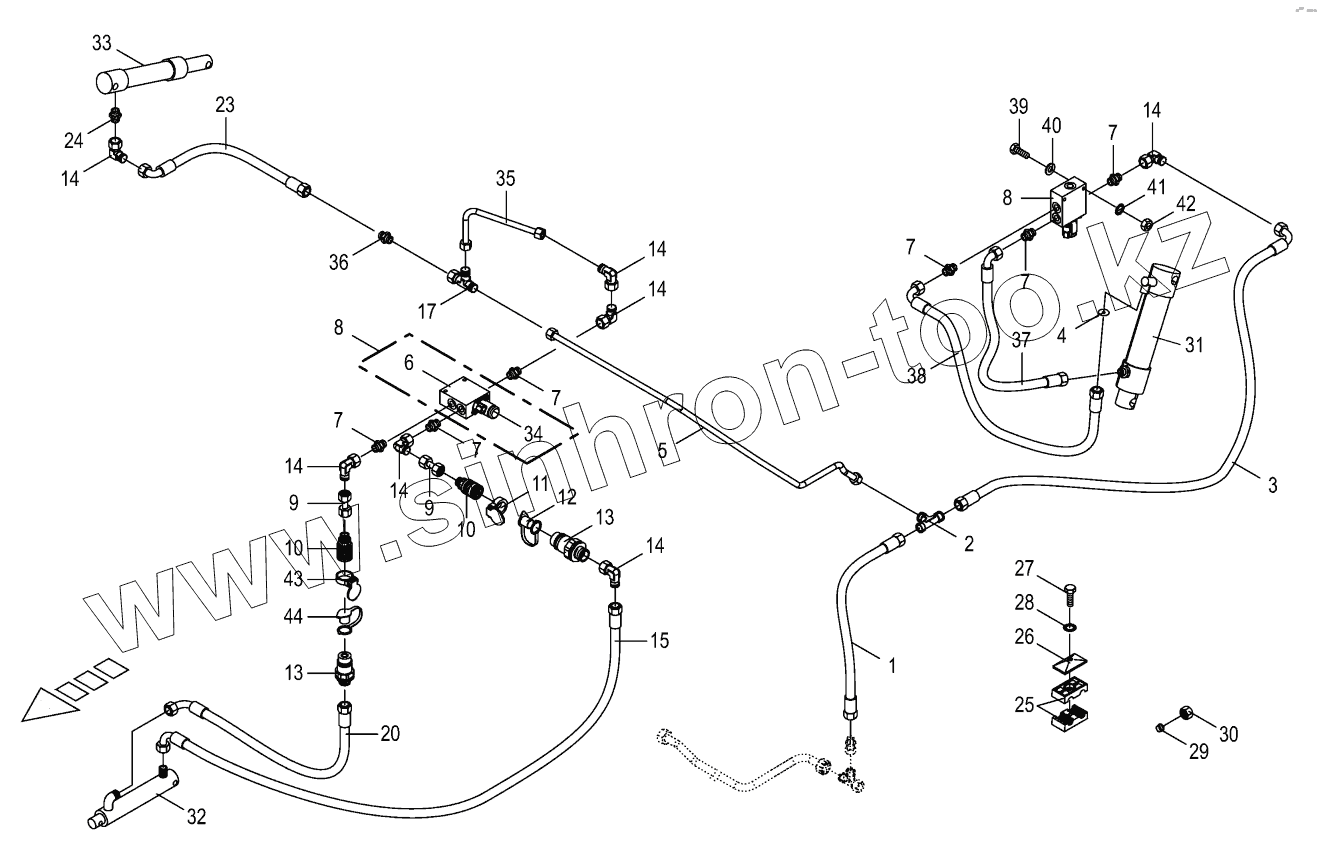

  5. Charge pressure line - part 2

Каталог запасных частей к технике: KRONE BIG-X-850-1. Charge pressure line - part 2

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
270006090
270082610
270034060
1
2
3
4
5
6
7
7
7
7
7
7
8
8
9
9
10
10
11
12
13
13
14
14
14
14
14
14
14
15
17
20
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
Позиция на иллюстрации Заводской номер детали Название детали
270006090 270006090 Sealing set
270082610 270082610 Sealing set
270034060 270034060 Sealing set
1 270038410 High pressure hose line
2 9210711 T connector
3 9212581 High pressure hose line
4 3320143 Throttling disc
5 202251930 Hyd. line
6 270077920 Housing
7 9196300 Male connector
8 270077900 4/2-Directional-control valve
9 2307430 Double nipple
10 9193230 Sleeve
11 9199940 Cover-red
12 9211711 Dust cap-red
13 9193220 Connector plug
14 9210671 Angle lug
15 9200830 High pressure hose line
17 9210791 Adjustable L connection
20 270003320 High pressure hose line
23 270071070 High pressure hose line
24 9209011 Male connector
25 9251050 Tube clamp-2 halves
26 9251340 Cover plate
27 9010092 Hex head bolt
28 9099081 Detent edged washer
29 9210461 Cutting ring
30 9212060 Nozzle disc cap
31 270092210 Hydraulic cylinder
32 270077930 Hydraulic cylinder
33 270013700 Hydraulic cylinder
34 270077910 4/2-Directional-control valve
35 200283960 Hydraulic line -incl. nozzle disc cap, cutting ring
36 9210541 Connector
37 9200950 High pressure hose line
38 270038460 High pressure hose line
39 9002440 Hex head bolt
40 9104111 Washer
41 9099061 Detent edged washer
42 9082080 Hex nut
43 9166020 Cover-blue
44 9212631 Dust cap-blue
