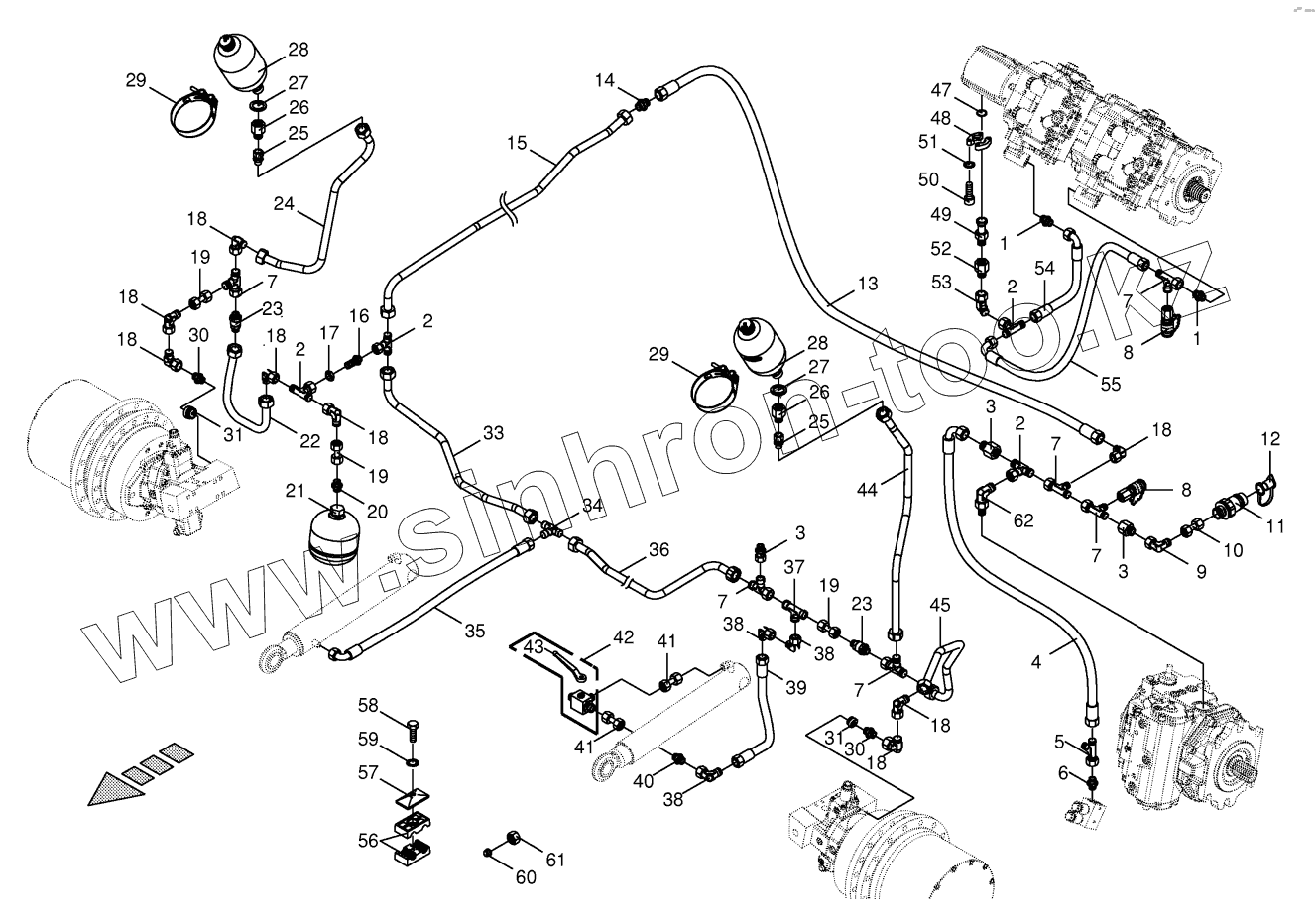

  5. Charge pressure line - part 1

Каталог запасных частей к технике: KRONE BIG-X-850-1. Charge pressure line - part 1

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
2
2
2
3
3
3
4
5
6
7
7
7
7
7
7
8
8
9
10
11
12
13
14
15
16
17
18
18
18
18
18
18
18
18
19
19
19
20
21
22
23
23
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
33
34
35
36
37
38
38
38
39
40
41
41
42
43
44
45
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
Позиция на иллюстрации Заводской номер детали Название детали
1 9211741 Male connector
2 900000320 T connector
3 9209020 Reducer fitting
4 9210041 High pressure hose line
5 9210791 Adjustable L connection
6 9210602 Male connector
7 9212380 Adjustable L connection
8 9196960 Connector f.mini-test equipm.
9 9210671 Angle lug
10 2307430 Double nipple
11 9211450 Connector plug
12 9212631 Dust cap-blue
13 270041050 High pressure hose line
14 9211700 Connector
15 200281710 Hydraulic line -incl. nozzle disc cap, cutting ring
16 9212510 Straight 2-way connector
17 9210951 Hex nut-low form
18 9211730 Angle lug
19 2307470 Double nipple
20 9211440 Male connector
21 9196070 Pressure accumulator
22 200281630 Hydraulic line -incl. nozzle disc cap, cutting ring
23 9211690 Non-return valve
24 200281690 Hydraulic line -incl. nozzle disc cap, cutting ring
25 900017890 Reducer fitting
26 900017870 Unscrewing connection
27 900018430 Sealing ring
28 270078420 Hydraulic - reservoir
29 270009260 Joint bolt-hose clamp
30 9193280 Male connector
31 270077120 Non-return valve
33 200281640 Hydraulic line -incl. nozzle disc cap, cutting ring
34 270039750 T-reduction
35 270071120 High pressure hose line
36 200281650 Hydraulic line -incl. nozzle disc cap, cutting ring
37 9193150 T-reduction
38 9210651 Angle lug
39 9200940 High pressure hose line
40 9210531 Connector
41 2307440 Double nipple
42 9193091 Ball valve
43 9196640 Hand lever-incl. screw, washer
44 200281700 Hydraulic line -incl. nozzle disc cap, cutting ring
45 200281660 Hydraulic line -incl. nozzle disc cap, cutting ring
47 270039240 Flange gasket
48 9208571 SAE-flange section-2 halves
49 270000710 SAE-flange adapter
50 9031082 Allen screw
51 9099070 Detent edged washer
52 9196590 Reducer fitting
53 900015240 Angle lug -45°
54 9209812 High pressure hose line
55 9200960 High pressure hose line
56 9251550 Tube clamp-2 halves
57 9251340 Cover plate
58 9002010 Hex head bolt
59 9099081 Detent edged washer
60 9211831 Cutting ring
61 9211820 Nozzle disc cap
62 900019830 Elbow union
