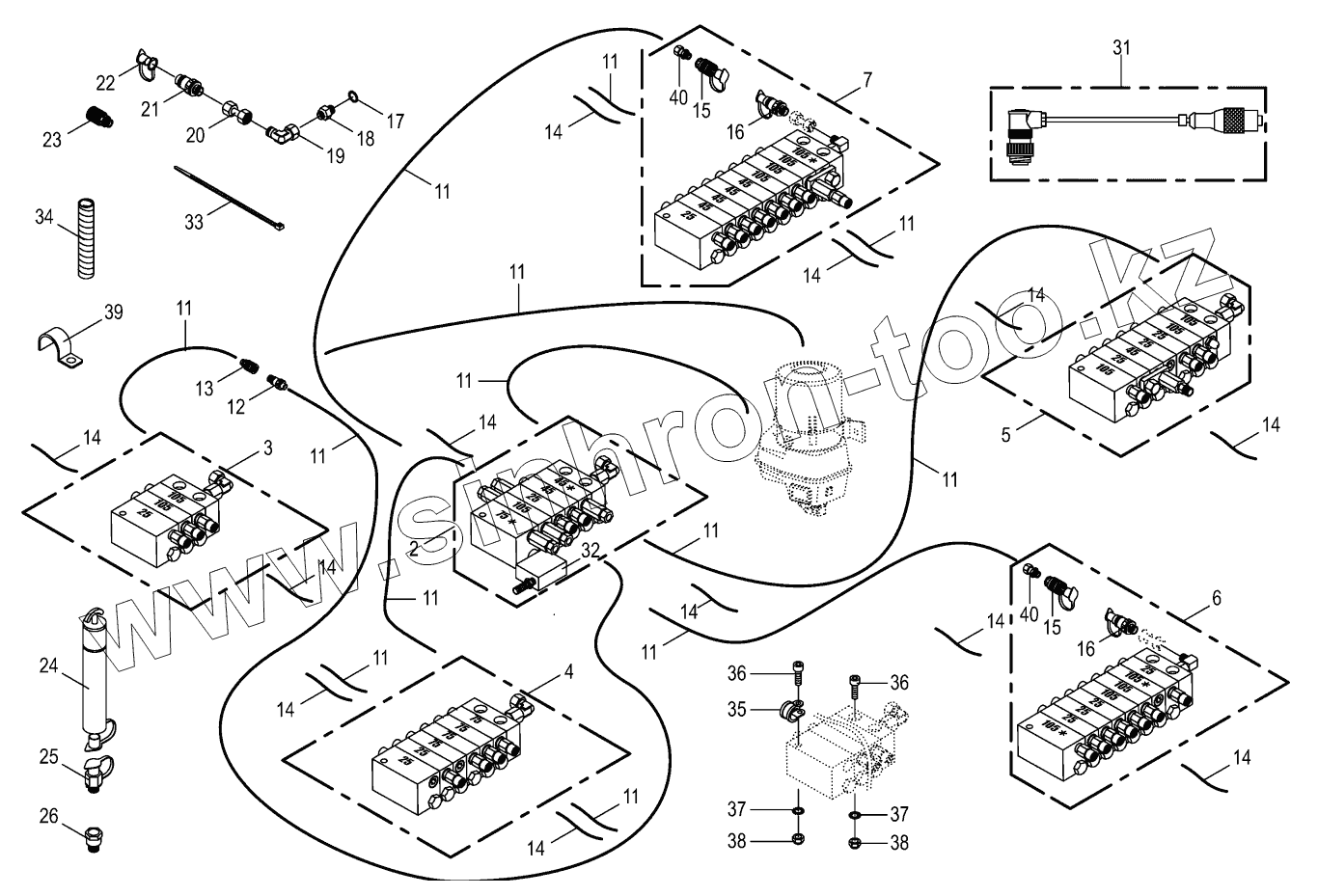

Каталог запасных частей к технике: KRONE BIG-X-850-1. Central lubrication

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
270016961
270012430
2
3
4
5
6
7
11
11
11
11
11
11
11
11
11
11
11
11
11
12
13
14
14
14
14
14
14
14
14
14
14
14
14
15
15
16
16
17
18
19
20
21
22
23
24
25
26
31
32
33
34
35
35
35
36
36
37
37
38
38
39
40
40
Позиция на иллюстрации Заводской номер детали Название детали
270016961 270016961 Mobilux EP2
270012430 270012430 Cable band
2 270114580 Main distributor without lines MX-F5/8
3 270058120 Combination of distributors-cracker
4 270028280 Combination of distributors-steering axle
5 270056980 Combination of distributors-ejection system / drive
6 270111290 Distri. for. unit or line MX-F 8/14
7 270089130 Combination of distributors - feed system
11 9404740 High pressure hose-Id.-no.= 1m
12 9404730 Connector plug
13 9404720 Sleeve
14 9389330 Plastic tube filled with grease-Id.-no.= 1m
15 270074940 Sleeve
16 270074950 Connector plug
17 9377360 Gasket ring
18 2132810 Reducing piece
19 9210671 Angle lug
20 2307430 Double nipple
21 9211450 Connector plug
22 9211711 Dust cap-red
23 9211300 Sleeve
24 9403930 Filling cylinder
25 9403920 Filling connection
26 270019980 Connector
31 200807930 Extension cable-4-pole
32 270028330 Proximity switch
33 9226740 Cable band
34 270071290 Spiral strip-Id.-no.= 5m
35 9240170 Tube clip w. rubber
35 9240100 Tube clip w. rubber
35 9240110 Tube clip w. rubber
36 9030301 Allen screw
37 9105001 Washer
38 9087020 Locknut
39 270077090 Tube clamp
40 270068390 Screw-in connection
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
