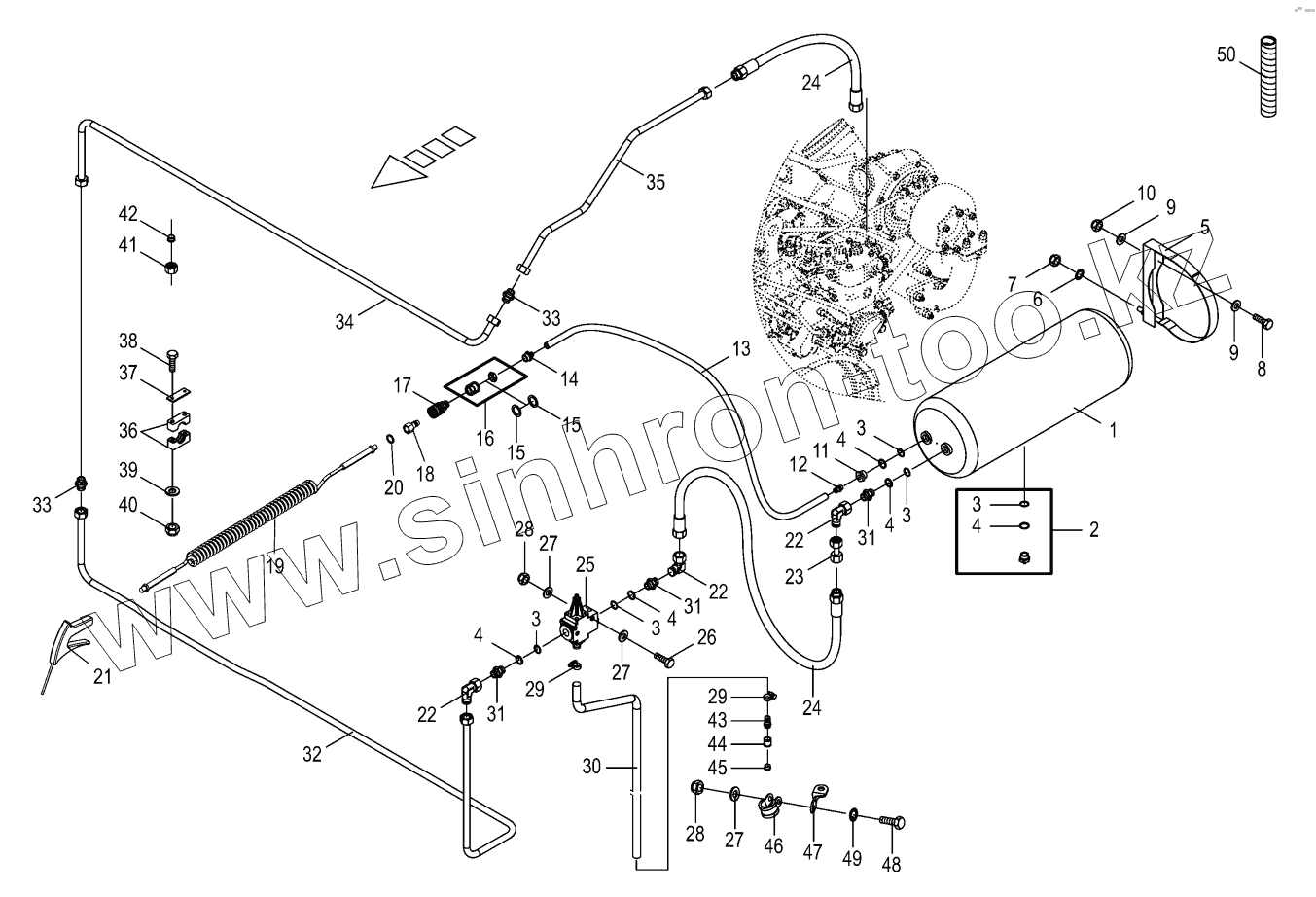

Каталог запасных частей к технике: KRONE BIG-X-850-1. Air pressure - Blow-out gun

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
3
3
3
3
4
4
4
4
4
5
6
7
8
9
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
22
22
23
24
24
25
26
27
27
27
28
28
29
29
30
31
31
31
32
33
33
34
35
36
37
38
38
39
40
41
42
43
44
45
46
47
48
49
50
Позиция на иллюстрации Заводской номер детали Название детали
1 9450650 Air pressure container
2 9450671 Drain valve
3 9450890 O-ring
4 9450880 Thrust ring
5 9450661 Tension band
6 9099101 Detent edged washer
7 9087010 Locknut
8 9006360 Hex head bolt
9 9104140 Washer
10 9087580 Locknut
11 9455460 Reducing piece
12 270062600 Male connector
13 270053690 Plastic tubing -Id.-no.= 1m
14 270062610 Male connector
15 9107190 Supporting disc
16 900005430 Sleeve bulkhead
17 270040290 Clutch w. external screw threa
18 270151830 Nipple
19 9402151 Spiral hose
20 900028260 Seal ring
21 9402670 Blow-out gun
22 9211730 Angle lug
23 2307470 Double nipple
24 9200990 Hose
25 9454311 Pressure governor
26 9010081 Hex head bolt
27 9104130 Washer
28 9087060 Locknut
29 9240490 Tube clip
30 9400890 Hose-Id.-no.= 1m
31 9211741 Male connector
32 200294280 Hydraulic line-incl. nozzle disc cap, cutting ring
33 9211700 Connector
34 200294260 Hydraulic line-incl. nozzle disc cap, cutting ring
35 200294270 Hydraulic line-incl. nozzle disc cap, cutting ring
36 270059030 Tube clamp -2 halves
37 9251450 Cover plate
38 900001760 Hex head bolt
38 9014100 Hex head bolt
39 9104111 Washer
40 9087041 Locknut
41 9211820 Nozzle disc cap
42 9211831 Cutting ring
43 270065870 Hose connector
44 270065890 Passage sleeve
45 270065880 Silencer
46 900004190 Tube clip w. rubber
47 200271750 Support
48 9006170 Hex head bolt
49 9099081 Detent edged washer
50 270046020 Spiral strip-Id.-no.= 1m
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
