  5. Additive connection for trailer

Каталог запасных частей к технике: KRONE BIG-X-850-1. Additive connection for trailer

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
9187341
1
2
3
4
5
5
5
5
5
5
5
5
5
6
6
7
7
7
7
7
7
8
9
10
10
11
12
12
13
14
15
16
17
17
17
18
19
19
20
20
21
22
23
23
23
23
23
23
23
24
24
24
25
28
29
29
30
31
32
32
33
34
35
36
37
38
39
40
40
40
40
40
40
40
41
41
42
42
43
43
44
45
46
46
47

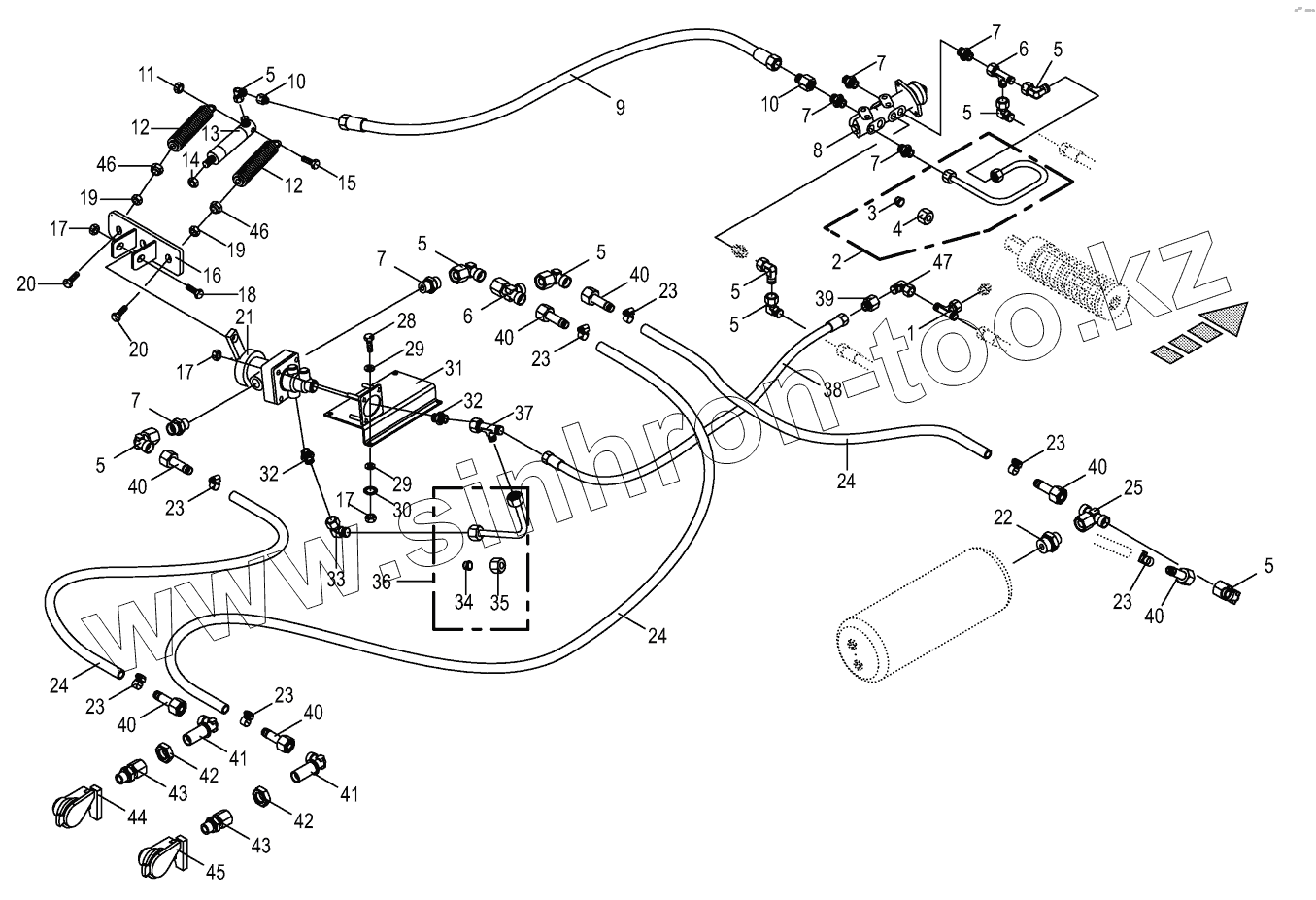

Позиция на иллюстрации Заводской номер детали Название детали
9187341 9187341 Sealing set
1 9199680 T connector
2 200245280 Hydraulic line-incl. nozzle disc cap, cutting ring
3 9210461 Cutting ring
4 9212060 Nozzle disc cap
5 9210671 Angle lug
6 9210791 Adjustable L connection
7 9210602 Male connector
8 9455600 Brake valve
9 270012781 Hyd. hose
10 9210831 Reducer fitting
11 9087010 Locknut
12 2733752 Tension spring
13 2832311 Hydraulic cylinder
14 9080022 Hex nut
15 9014590 Hex head bolt
16 2191450 Fork
17 9087060 Locknut
18 9010421 Hex head bolt
19 9082120 Hex nut
20 9002891 Hex head bolt
21 9455610 Control valve
22 9197851 Male connector
23 9240011 Tube clip
24 9450850 Hose-Id.-no.= 1m
25 9210771 T connector
28 9006140 Hex head bolt
29 9104130 Washer
30 9099081 Detent edged washer
31 2286610 Plate
32 9193380 Male connector
33 9212250 Angle lug
34 9209160 Cutting ring
35 9209050 Nozzle disc cap
36 2191410 Hydraulic line-incl. nozzle disc cap, cutting ring
37 9212740 Adjustable L connection
38 270012761 Hyd. hose
39 9193370 Reducer fitting
40 9450900 Hose connector
41 9210891 Connector
42 9085242 Hex nut-low form
43 9212040 Male connector
44 9450780 Clutch head-yellow
45 9450770 Clutch head-red
46 9087580 Locknut
47 9199650 Angle lug
