Каталог запасных частей к технике: KRONE BIG-X-850-1/1100-1. Ventilator wheel/Drive

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
8
8
9
10
11
12
12
13
14
14
15
16
16
17
17
18
18
19
20
20
21
21
22
22
23
24
25
25
26
27
28
29
30
30
31
31
32
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
54
55
56
57
58
59
60

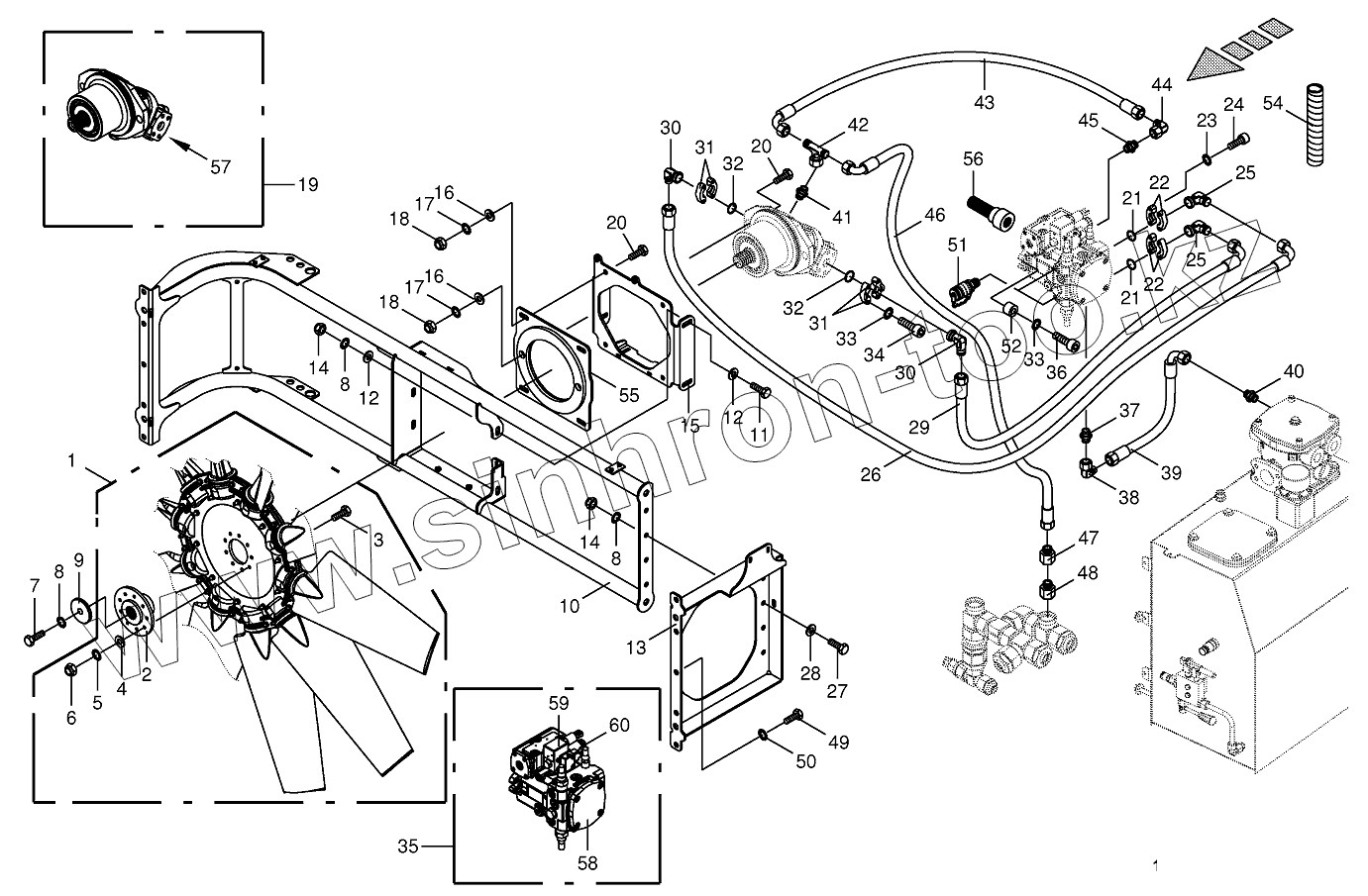

Позиция на иллюстрации Заводской номер детали Название детали
270103120 270103120 Gasket set variable displacement pump
1 270045351 Ventilator wheel
2 200252531 Adapter flange
3 009006170 Hex head bolt
4 009104130 Washer
5 009099081 Detent edged washer
6 009087060 Locknut
7 009002130 Hex head bolt
8 009099121 Detent edged washer
9 200252641 Bushing
10 200252092 20 025 209 2
11 009006570 Hex head bolt
12 009106090 Washer
13 200293941 Side part left
14 009087010 Locknut
15 200287491 Strut
16 009105122 Washer
17 009099131 Detent edged washer
18 009087210 Locknut
19 270040781 Hydraulic motor
20 009003821 Hex head bolt
21 270039230 Flange gasket
22 009208601 SAE-flange section-2 halves
23 009099070 Detent edged washer
24 009031091 Allen screw
25 270059500 SAE-flange adapter
26 270062020 High pressure hose line
27 009006560 Hex head bolt
28 009105061 Washer
29 270062010 High pressure hose line
30 270059510 SAE-flange adapter
31 009208611 SAE-flange section-2 halves
32 270039240 Flange gasket
33 009099110 Detent edged washer
34 900004730 Allen screw
35 270056740 Pump
36 009031421 Allen screw
37 009199100 Male connector
38 009208220 Angle lug
39 009197900 High pressure hose line
40 009196571 Male connector
41 009211440 Male connector
42 900000320 T connector
43 270059800 High pressure hose line
44 009211730 Angle lug
45 009211741 Male connector
46 009198670 High pressure hose line
47 009196590 Reducer fitting
48 009199250 Reducer fitting
49 009006340 Hex head bolt
50 009099091 Detent edged washer
51 009193600 Connector f.mini-test equipm.
52 002827610 Spacer bushing
54 009404780 Spiral strip-Id.-no.= 1m
55 200287510 Flange
56 270089980 Tappet
57 270103100 Flush valve
58 270103110 Feed pump
59 270103140 Adj. unit
60 270103130 Solenoid switch
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
