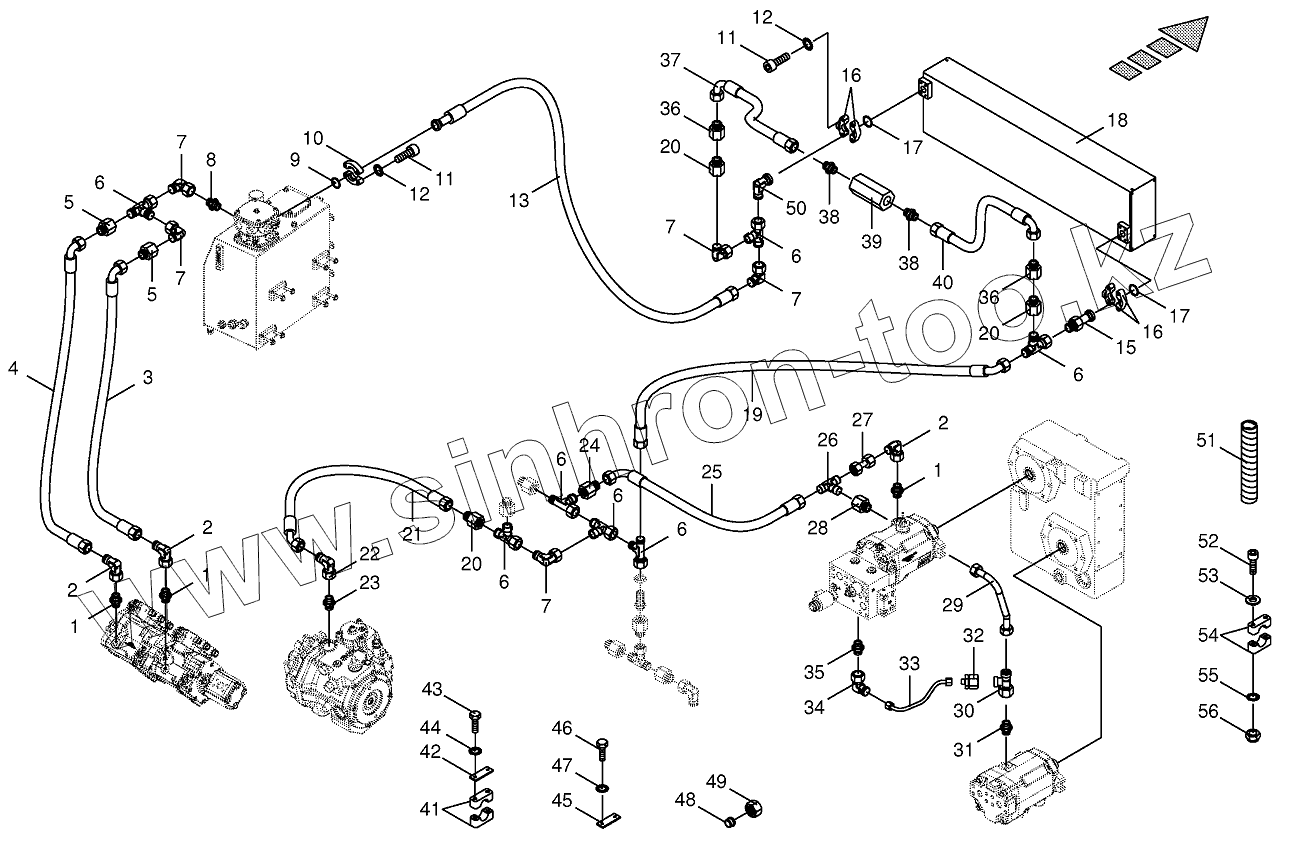

Каталог запасных частей к технике: KRONE BIG-X-850-1/1100-1. Housing line/oil cooler

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
2
2
2
3
4
5
5
6
6
6
6
6
6
6
7
7
7
7
7
8
9
10
11
11
12
12
13
15
16
16
17
17
18
19
20
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
38
38
39
40
41
42
43
44
45
46
47
48
48
49
49
50
51
52
53
54
55
56
Позиция на иллюстрации Заводской номер детали Название детали
202211900 202211900 Hydr. Ligne 8 х 1,5 х 277,2 3 Bogen
1 900000840 Male connector
2 009197110 Lug
3 270079500 High pressure hose line
4 270079490 High pressure hose line
5 900017900 Reducer fitting
6 009199220 Adjustable L connection
7 270041990 Angle lug
8 009199281 Male connector
9 900005820 O-ring
10 270045680 SAE-flange section-2 halves
11 009031412 Allen screw
12 009099110 Detent edged washer
13 270059780 High pressure hose line
15 270004580 SAE-flange adapter
16 009193661 SAE-flange section-2 halves
17 009376470 O-ring
18 270087901 Oil cooler
19 270060140 High pressure hose line
20 009199260 Reducer fitting
21 270004650 High pressure hose line
22 009208230 Lug
23 900017830 Мale connector
24 009199250 Reducer fitting
25 270004660 High pressure hose line
26 270058520 T-reduction
27 270058510 Double nipple
28 900000830 Reducer fitting
29 200268000 Hydraulic line-incl. nozzle disc cap, cutting ring
30 009212380 Adjustable L connection
31 009211741 Male connector
32 009199600 Reducer fitting
33 200267990 Hydraulic line-incl. nozzle disc cap, cutting ring
34 009199650 Angle lug
35 009199640 Male connector
36 900013810 Reducer fitting
37 270063980 High pressure hose line
38 009208201 Male connector
39 270056830 Non-return valve
40 270059770 High pressure hose line
41 270040820 Tube clamp-2 halves
42 009251251 Cover plate
43 009014470 Hex head bolt
44 009099091 Detent edged washer
45 009251211 Cover plate
46 009011220 He head bolt
47 009099101 Detent edged washer
48 009199610 Cutting ring
48 009211831 Cutting ring
49 009199620 Nozzle disc cap
49 009211820 Nozzle disc cap
50 270041970 SAE-flange adapter
51 270039740 Spiral strip -ld.-no.=1m
52 009030561 Allen screw
53 009104111 Washer
54 270045590 Tube clamp-2 halves
55 009099061 Detent edged washer
56 009087041 Locknut
