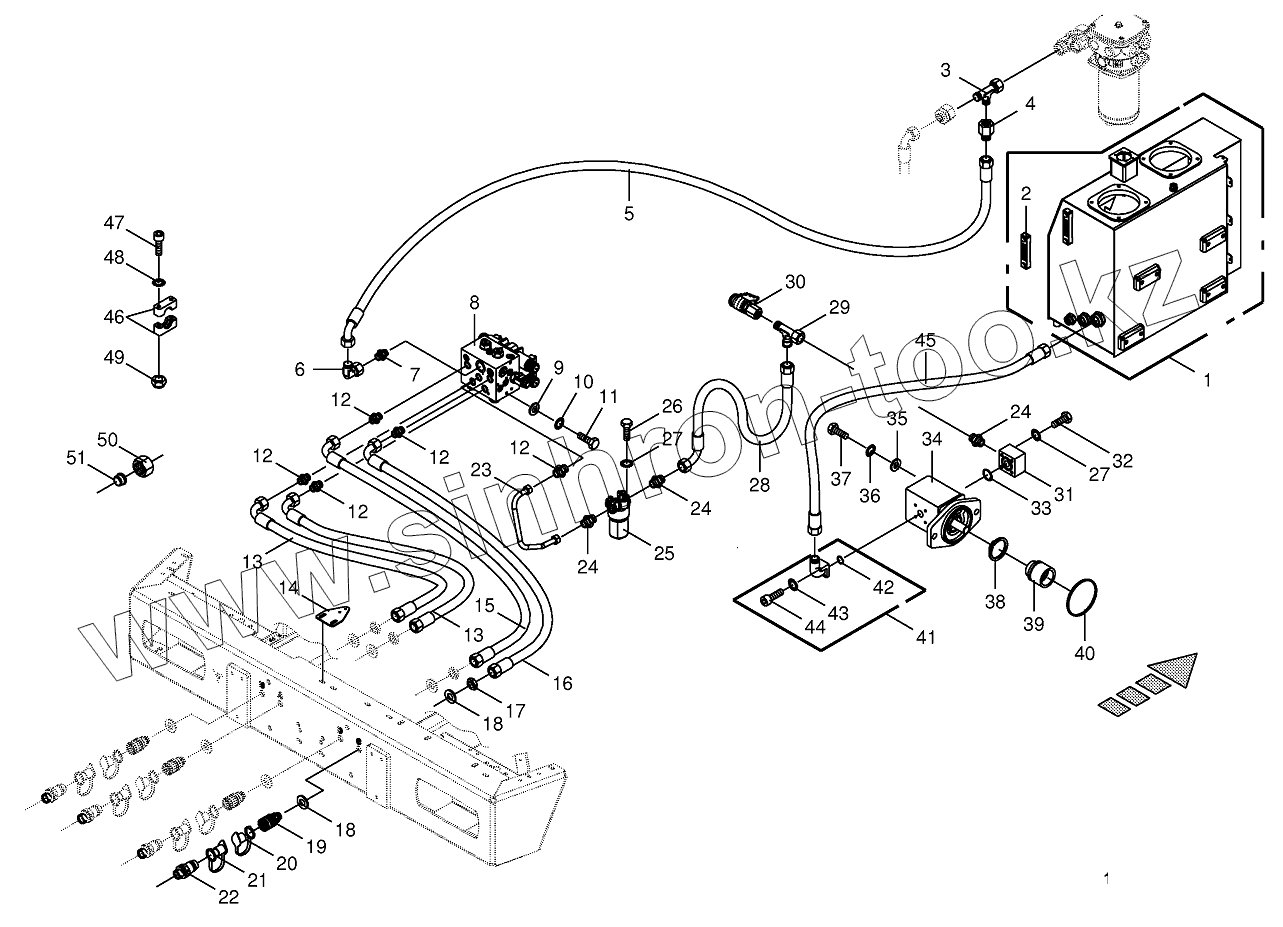

Каталог запасных частей к технике: KRONE BIG-X-850-1/1100-1. Hydraulics-additive connection back

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
12
12
12
12
13
13
14
15
16
17
18
18
19
20
21
22
23
24
24
24
25
26
27
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
44
45
46
47
47
48
49
50
51
Позиция на иллюстрации Заводской номер детали Название детали
270104840 270104840 Gasket ring
900012790 900012790 O-ring
009197310 009197310 Filter element
270040280 270040280 Contamination indicator
1 200272411 Hydraulic tank
2 009400291 Oil level indicator
3 009199220 Adjustable L connection
4 009199250 Reducer fitting
5 270074980 High pressure hose line
6 009208220 Angle lug
7 009196571 Male connector
8 270002640 Diverter valve bloc
9 009104140 Washer
10 009099091 Detent edged washer
11 009006340 Hex head bolt
12 009211792 Male connector
13 009198670 High pressure hose line
14 200275860 Hose support
15 270074960 High pressure hose line
16 270074970 High pressure hose line
17 009210951 Hex nut-low form
18 009103750 Washer
19 270002660 Sleeve
20 270004530 Dust cap-red
21 270004540 Dust cap-red
22 270002650 Connector plug
23 200262560 Hydraulic line-incl. nozzle disc cap, cutting ring
24 009211741 Male connector
25 270040260 High pressure filter -cpl.
26 009006160 Hex head bolt
27 009099081 Detent edged washer
28 009201160 High pressure hose line
29 009212380 Adjustable L connection
30 009196960 Connector f.mini-test equipm.
31 002286601 Connecting flange
32 009010461 Hex head bolt
33 009375050 O-ring
34 270020040 Pump
35 009105061 Washer
36 009099101 Detent edged washer
37 009006560 Hex head bolt
38 009115100 Circlip
39 200269360 Adapter
40 009376111 O-ring
41 270097270 Flange connection
42 270009880 O-ring
43 009099030 Detent edged washer
44 009030771 Allen screw
44 900020770 Allen screw
45 270074990 High pressure hose line
46 009251031 Tube clamp-2 halves
47 009030550 Allen screw
47 009030581 Allen screw
48 900013800 Detent edged washer
49 009087041 Locknut
50 009211820 Nozzle disc cap
51 009211831 Cutting ring
