Каталог запасных частей к технике: KRONE BIG-X-850/1100. Hydraulics-front attachment

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
1
1
1
1
1
1
2
3
4
4
5
5
5
5
6
6
6
6
7
8
9
10
11
11
11
11
16
17
18
18
18
18
19
19
19
19
20
20
20
20
21
21
21
21
22
22
23
23
24
25
26
26
26
27
28
29
30
31
32
33
35
36
37
38
39
39
39
39
40
40
40
40
41
42
43
43
43
43

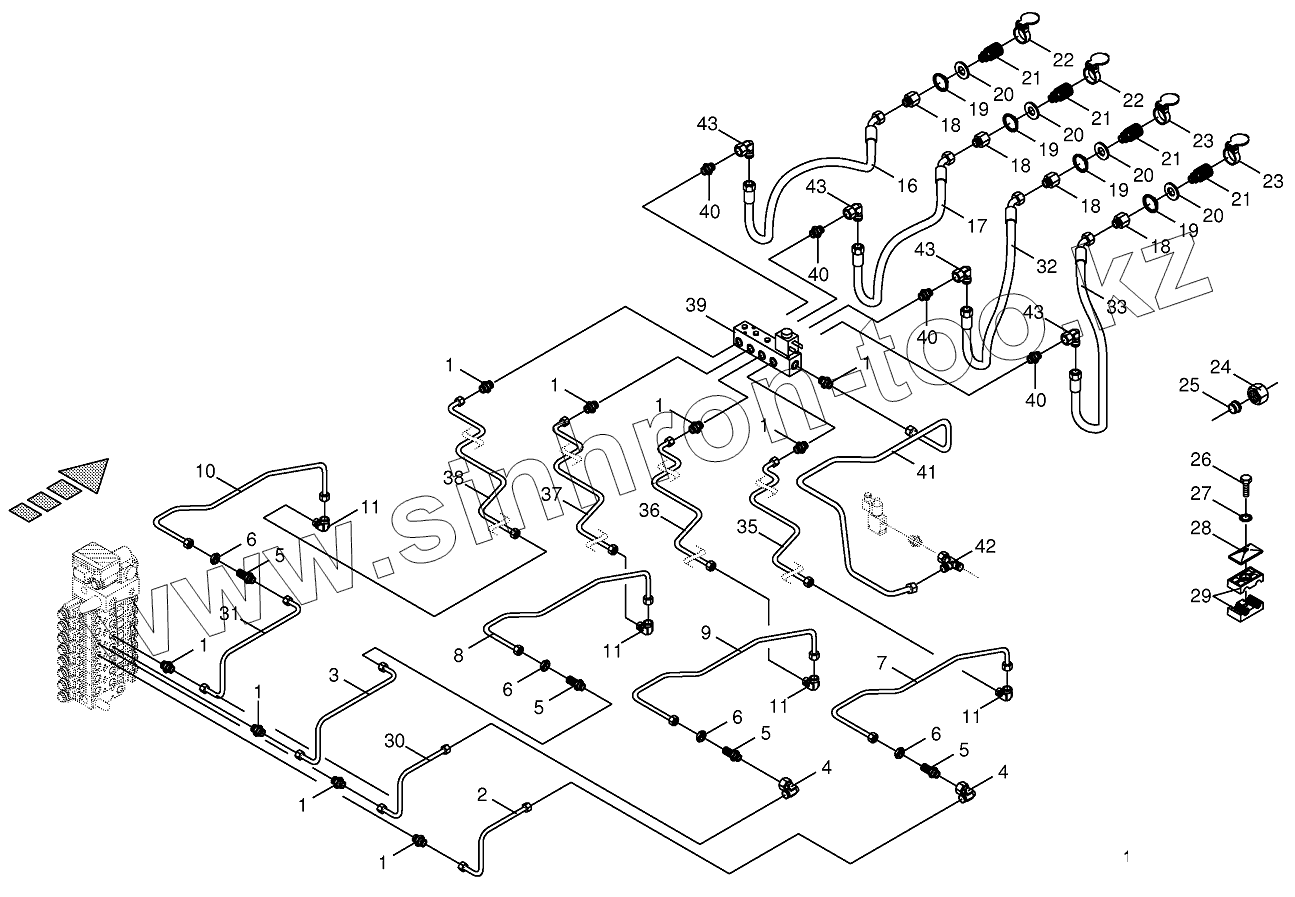

Позиция на иллюстрации Заводской номер детали Название детали
1 009209011 Male connector
2 200217580 Hydraulic line-incl. nozzle disc cap, cutting ring
3 200217600 Hydraulic line-incl. nozzle disc cap, cutting ring
4 009210671 Angle lug
5 009210871 Straight 2-way connector
6 009085242 Hex nut-low form
7 200210720 Hydraulic line-incl. nozzle disc cap, cutting ring
8 200210730 Hydraulic line-incl. nozzle disc cap, cutting ring
9 200210700 Hydraulic line-incl. nozzle disc cap, cutting ring
10 200210710 Hydraulic line-incl. nozzle disc cap, cutting ring
11 009210661 Elbow union
16 270010070 High pressure hose line
17 270010060 High pressure hose line
18 009199700 Reducer fitting
19 009115100 Circlip
20 002191231 Washer
21 009211300 Sleeve
22 009199940 Cover-red
23 009166020 Cover-blue
24 009212060 Nozzle disc cap
25 009210461 Cutting ring
26 009010092 Hex head bolt
26 009010481 Hex head bolt
27 009099081 Detent edged washer
28 009251340 Cover plate
29 009251050 Tube clamp-2 halves
30 200217570 Hydraulic line-incl. nozzle disc cap, cutting ring
31 200217590 Hydraulic line-incl. nozzle disc cap, cutting ring
32 270010050 High pressure hose line
33 270010040 High pressure hose line
35 200232820 Hydraulic line-incl. nozzle disc cap, cutting ring
36 200232810 Hydraulic line-incl. nozzle disc cap, cutting ring
37 200232800 Hydraulic line-incl. nozzle disc cap, cutting ring
38 200232790 Hydraulic line-incl. nozzle disc cap, cutting ring
39 200226160 Valve block
39 270017370 2/2-Directional-control valve
39 270018360 Solenoid coil
40 900000480 Male connector
41 200232780 Hydraulic line-incl. nozzle disc cap, cutting ring
42 009210791 Adjustable L connection
43 009199650 Angle lug
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
