  5. Charge pressure lines-front 795000-805000

Каталог запасных частей к технике: KRONE BIG-X-850/1100. Charge pressure lines-front 795000-805000

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
2
2
2
2
2
3
3
3
3
3
4
5
6
7
7
8
9
9
10
11
11
12
12
13
13
14
15
16
16
17
18
18
19
19
20
21
22
22
23
24
25
26
27
28
28
29
30
30
30
30
31
32
33
34
36
37
38
39
39
39
39
39
40
41
42
43
43
44
45
46
52
53
54
54
54
55
56
58
59
60
61
62
63
63

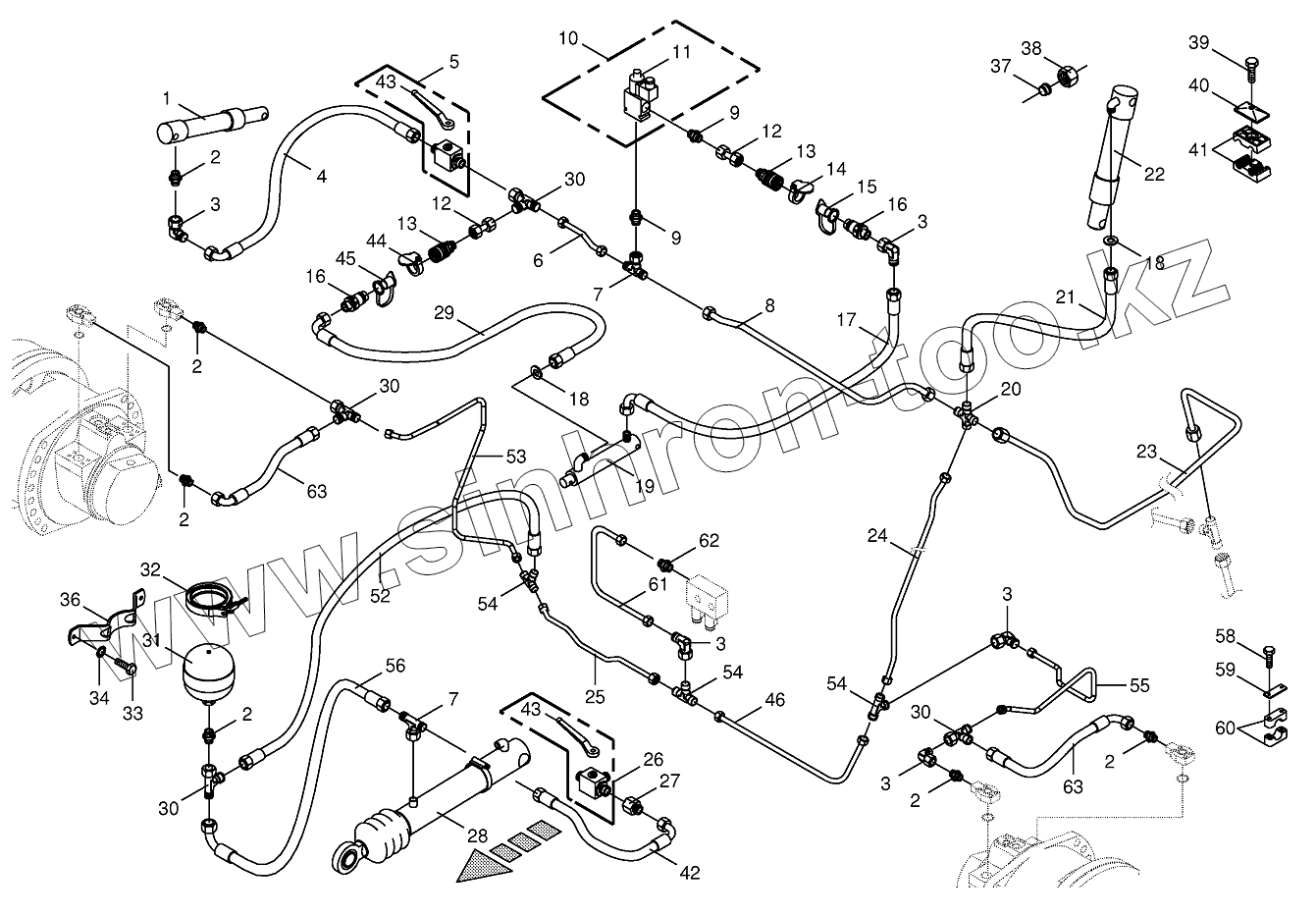

Позиция на иллюстрации Заводской номер детали Название детали
1 270034060 Sealing set
1 270013700 Hydraulic cylinder
2 009209011 Male connector
3 009210671 Angle lug
4 270003320 High pressure hose line
5 009211222 Ball cock
6 200206430 Hydraulic line-incl. nozzle disc cap, cutting ring
7 009210771 T-connector
8 200246450 Hydraulic line-incl. nozzle disc cap, cutting ring
9 009199181 Male connector
10 009190340 3/2-Diverter vave bloc
11 009190280 3/2-Directional-control valve
11 009190700 Solenoid coil
12 002307430 Double nipple
13 009193230 Sleeve
14 009199940 Cover-red
15 009211711 Dust cap-red
16 009193220 Connector plug
17 009200830 High pressure hose line
18 003320143 Throttling disc
19 270012670 Hydraulic cylinder
19 270034060 Sealing set
20 009210941 Cross pipe union
21 270007420 High pressure hose line
22 270056960 Hydraulic cylinder
22 270062390 Sealing set
23 200216760 Hydraulic line-incl. nozzle disc cap, cutting ring
24 200240090 Hydraulic line-incl. nozzle disc cap, cutting ring
25 200238660 Hydraulic line-incl. nozzle disc cap, cutting ring
26 009193090 Diverter valve
27 009211601 Reducer fitting
28 009185252 Hydraulic cylinder
28 270096230 Sealing set
29 009209720 High pressure hose line
30 009210791 Adjustable L connection
31 009196070 Pressure accumulator
32 009240300 Joint bolt-hose clamp
33 009006370 Hex head bolt
34 009099091 Detent edged washer
36 002312090 Accumulator support
37 009210461 Cutting ring
38 009212060 Nozzle disc cap
39 009010481 Hex head bolt
39 009010092 Hex head bolt
39 009010421 Hex head bolt
40 009251340 Cover plate
41 009251050 Tube clamp-2 halves
42 270038530 High pressure hose line
43 009196640 Hand lever-incl. screw, washer
44 009212631 Dust cap-blue
45 009166020 Cover-blue
46 200246390 Hydraulic line-incl. nozzle disc cap, cutting ring
52 270038410 High pressure hose line
53 200268070 Hydraulic line-incl. nozzle disc cap, cutting ring
54 009210711 T connector
55 200268010 Hydraulic line-incl. nozzle disc cap, cutting ring
56 270038350 High pressure hose line
58 009014111 Hex head bolt
59 270039420 Cover plate
60 270039210 Tube clamp-2 halves
61 200254640 Hydraulic line-incl. nozzle disc cap, cutting ring
62 009210602 Male connector
63 009200950 High pressure hose line
