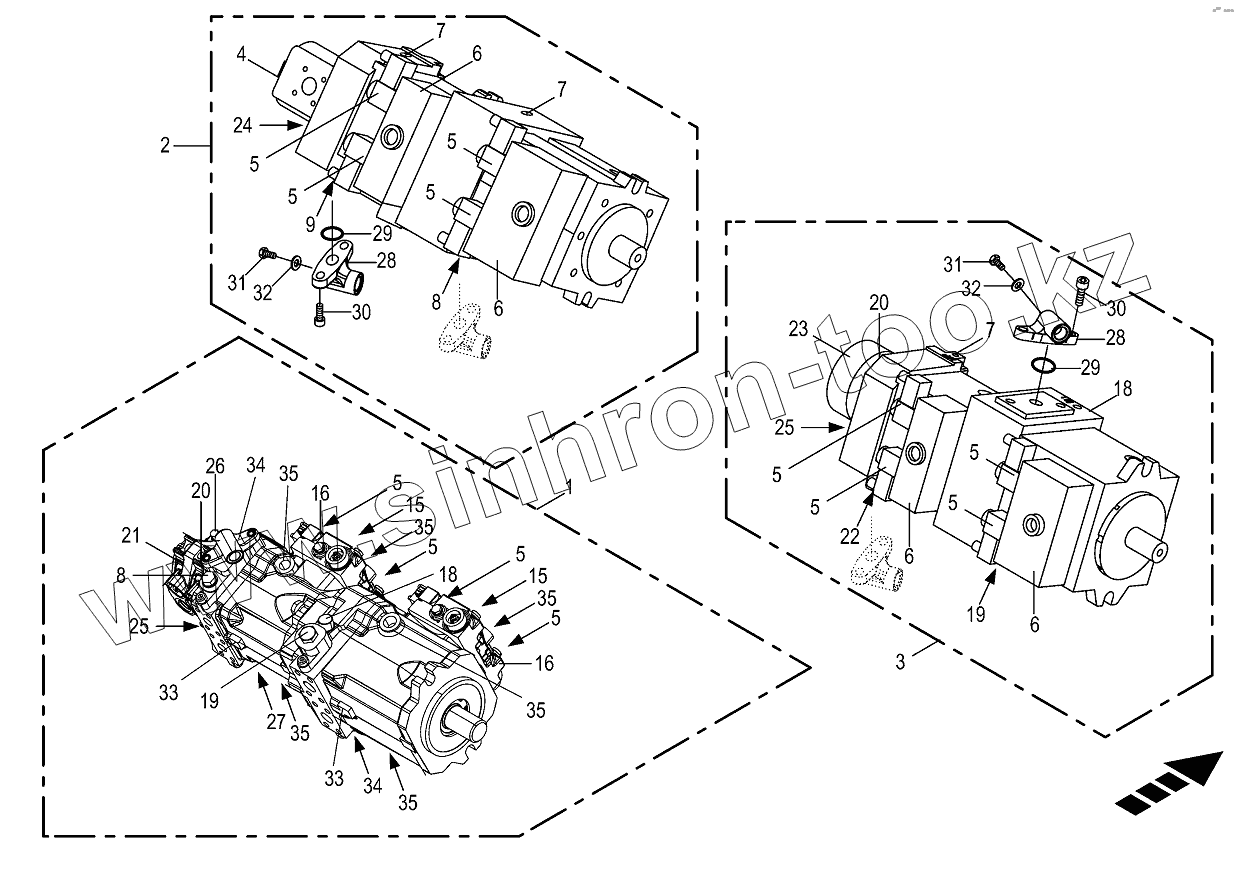

Каталог запасных частей к технике: KRONE BIG-X-800. Variable disqlacement pumps

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
5
5
5
5
5
5
5
5
5
5
5
6
6
6
6
6
7
7
8
8
9
15
15
16
16
18
18
19
19
20
20
21
22
23
24
25
25
26
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
35
35
35
35
Позиция на иллюстрации Заводской номер детали Название детали
900032180 900032180 O-ring seal
270074650 270074650 Hollow screw
270206620 270206620 Eccentric bolt
900001700 900001700 O-ring
900035130 900035130 O-ring
900004690 900004690 O-ring
900035140 900035140 Hexagon head screw
009103250 009103250 Washer
900001710 900001710 RING 16,3x2,4
009030731 009030731 Allen screw
009060010 009060010 Screw plug
009377110 009377110 Gasket ring
900032190 900032190 O-ring seal
270014440 270014440 Sealing set
270007130 270007130 Sealing set
270007110 270007110 Sealing set
270007160 270007160 Sealing set
270014440 270014440 Sealing set
270007160 270007160 Sealing set
270033470 270033470 Sealing set
1 009191841 Variable displacement pump
2 009191850 Variable displacement pump
3 009191890 Variable displacement pump
4 270007150 Gear pump
5 270007090 Proportional magnet
6 270007180 Adjustment
7 270007030 Pressure control valve
8 270007080 Pressure control valve
9 270007140 Pressure control valve
15 270007100 Shift solenoid
16 270007170 Adjustment
18 270014430 Pressure control valve
19 270014480 Pressure control valve
20 270014460 Gear pump
21 270014470 Gear pump
22 270014490 Pressure control valve
23 270014500 Gear pump
24 900002440 O-ring
25 900004020 O-ring
26 270014450 Pressure control valve
27 270033460 Pressure control valve
28 270106840 Filter flange
29 900001710 RING 16,3x2,4
30 009030731 Allen screw
31 009060010 Screw plug
32 009377110 Gasket ring
33 270016270 Angle sensor
34 270106840 Filter flange
35 900014640 Screw plug
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
