Каталог запасных частей к технике: KRONE BIG-X-800. Hydraulics-speed range shifting 753494-773000

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
1
1
2
2
3
3
4
4
5
6
6
6
7
8
8
8
8
8
9
10
11
11
11
11
12
12
12
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

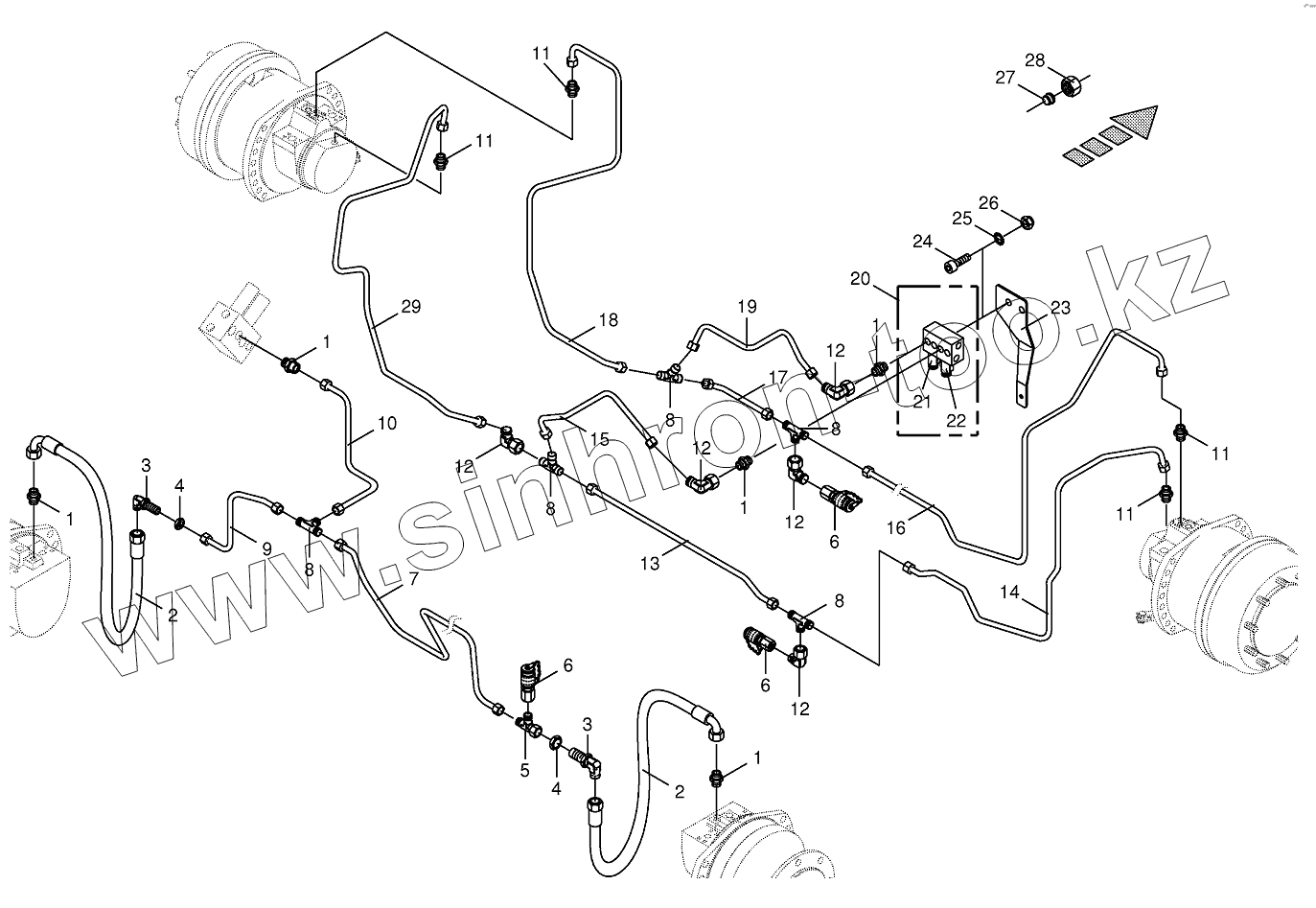

Позиция на иллюстрации Заводской номер детали Название детали
009190700 009190700 Solenoid coil
009190700 009190700 Solenoid coil
1 009210602 Male connector
2 009212570 High pressure hose line
3 009210891 Connector
4 009085242 Hex nut-low form
5 009210791 Adjustable L connection
6 009208680 Connector f.mini-test equipm.
7 200239850 Hydraulic line-incl. nozzle disc cap, cutting ring
8 009210711 T connector
9 200213270 Hydraulic line-incl. nozzle disc cap, cutting ring
10 200229060 Hydraulic line-incl. nozzle disc cap, cutting ring
11 009209011 Male connector
12 009210671 Angle lug
13 200208520 Hydraulic line-incl. nozzle disc cap, cutting ring
14 200239840 Hydraulic line-incl. nozzle disc cap, cutting ring
15 200213290 Hydraulic line-incl. nozzle disc cap, cutting ring
16 200213320 Hydraulic line-incl. nozzle disc cap, cutting ring
17 002286801 Hydraulic line-incl. nozzle disc cap, cutting ring
18 002191360 Hydraulic line-incl. nozzle disc cap, cutting ring
19 200213310 Hydraulic line-incl. nozzle disc cap, cutting ring
20 009190350 Valve block
21 009190280 3/2-Directional-control valve
22 009190290 3/2-Directional-control valve
23 200213250 Holding plate
24 009031141 Allen screw
25 009099091 Detent edged washer
26 009082120 Hex nut
27 009210461 Cutting ring
28 009212060 Nozzle disc cap
29 200239920 Hydraulic line-incl. nozzle disc cap, cutting ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
