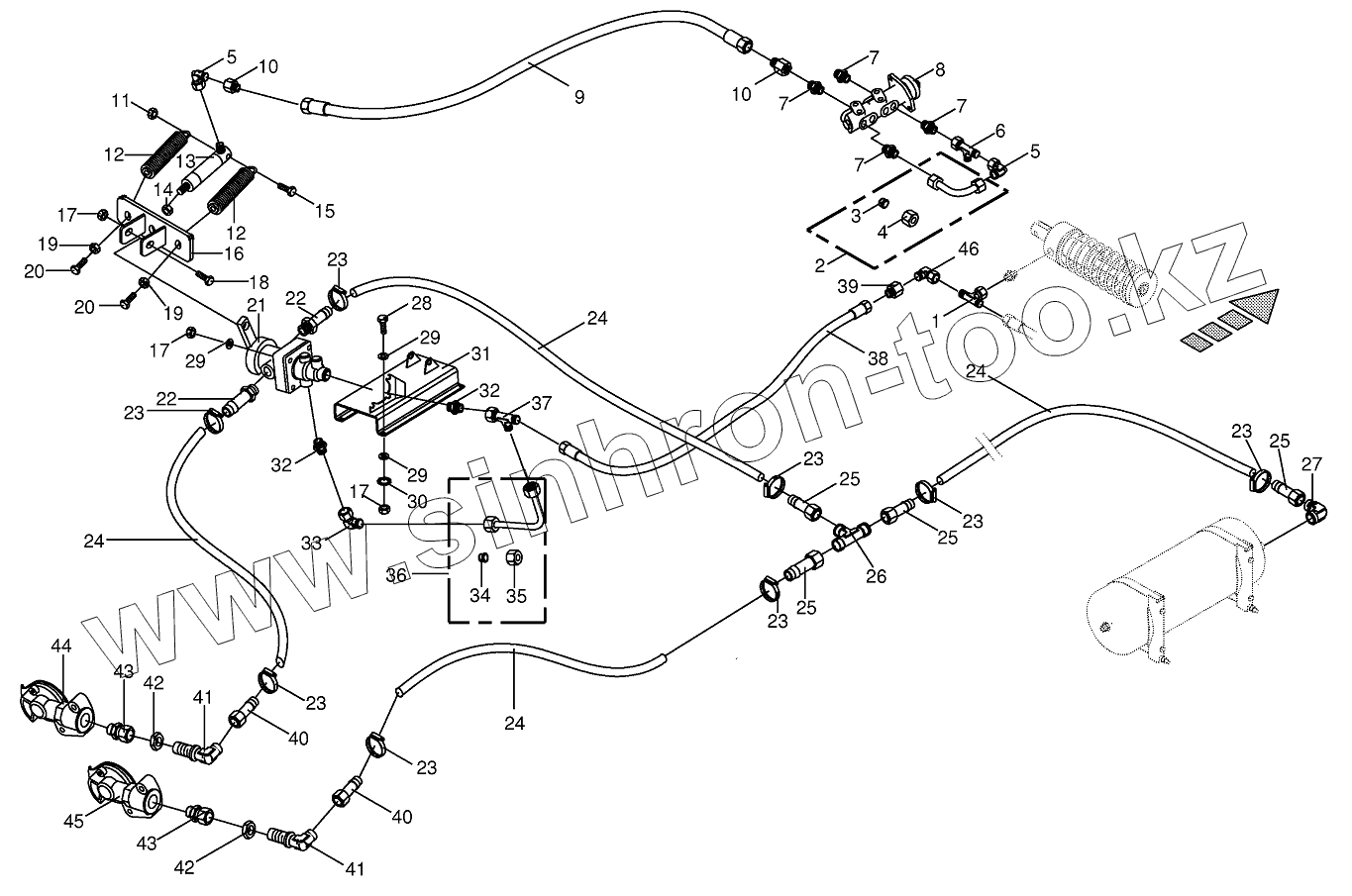

Каталог запасных частей к технике: KRONE BIG-X-800. Additive connection for trailer

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
5
6
7
7
7
7
8
9
10
10
11
12
12
13
14
15
16
17
17
17
18
19
19
20
20
21
22
22
23
23
23
23
23
23
23
23
24
24
24
24
25
25
25
25
26
27
28
29
29
29
30
31
32
32
33
34
35
36
37
38
39
40
40
41
41
42
42
43
43
44
45
46
Позиция на иллюстрации Заводской номер детали Название детали
009187341 009187341 Sealing set
1 009199680 T connector
2 002286820 Hydraulic line-incl. nozzle disc cap, cutting ring
3 009210461 Cutting ring
4 009212060 Nozzle disc cap
5 009210671 Angle lug
6 009210791 Adjustable L connection
7 009210602 Male connector
8 009455600 Brake valve
9 270012780 High pressure hose line
10 009210831 Reducer fitting
11 009087010 Locknut
12 002733752 Tension spring
13 002832311 Hydraulic cylinder
14 009080022 Hex nut
15 009014590 Hex head bolt
16 002191450 Fork
17 009087060 Locknut
18 009010421 Hex head bolt
19 009082120 Hex nut
20 009002891 Hex head bolt
21 009455610 Control valve
22 009454850 Hose connector
23 009240011 Tube clip
24 009450850 Hose-Id.-no.= 1m
25 009453490 Hose connector
26 009210731 T-connector
27 009455040 Angle-male connector
28 009006140 Hex head bolt
29 009104130 Washer
30 009099081 Detent edged washer
31 200227960 Bracket
32 009193380 Male connector
33 009212250 Angle lug
34 009209160 Cutting ring
35 009209050 Nozzle disc cap
36 002191410 Hydraulic line-incl. nozzle disc cap, cutting ring
37 009212740 Adjustable L connection
38 270012760 High pressure hose line
39 009193370 Reducer fitting
40 009450900 Hose connector
41 009210891 Connector
42 009085242 Hex nut-low form
43 009212040 Male connector
44 009450780 Clutch head-yellow
45 009450770 Clutch head-red
46 009199650 Angle lug
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
