  5. Hydraulic tank/suction lines 773001 - 801000

Каталог запасных частей к технике: KRONE BIG-X-800/1000. Hydraulic tank/suction lines 773001 - 801000

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
15
16
17
18
18
19
20
21
21
21
21
22
23
23
24
24
24
24
25
26
27
28
29
30
31
31
32
32
33
34
35
36
36
36
37
38
39
40
41
41
41
42
43
44
45
45
46
47
48
49
50
51
52
53
54
55
55
56
57

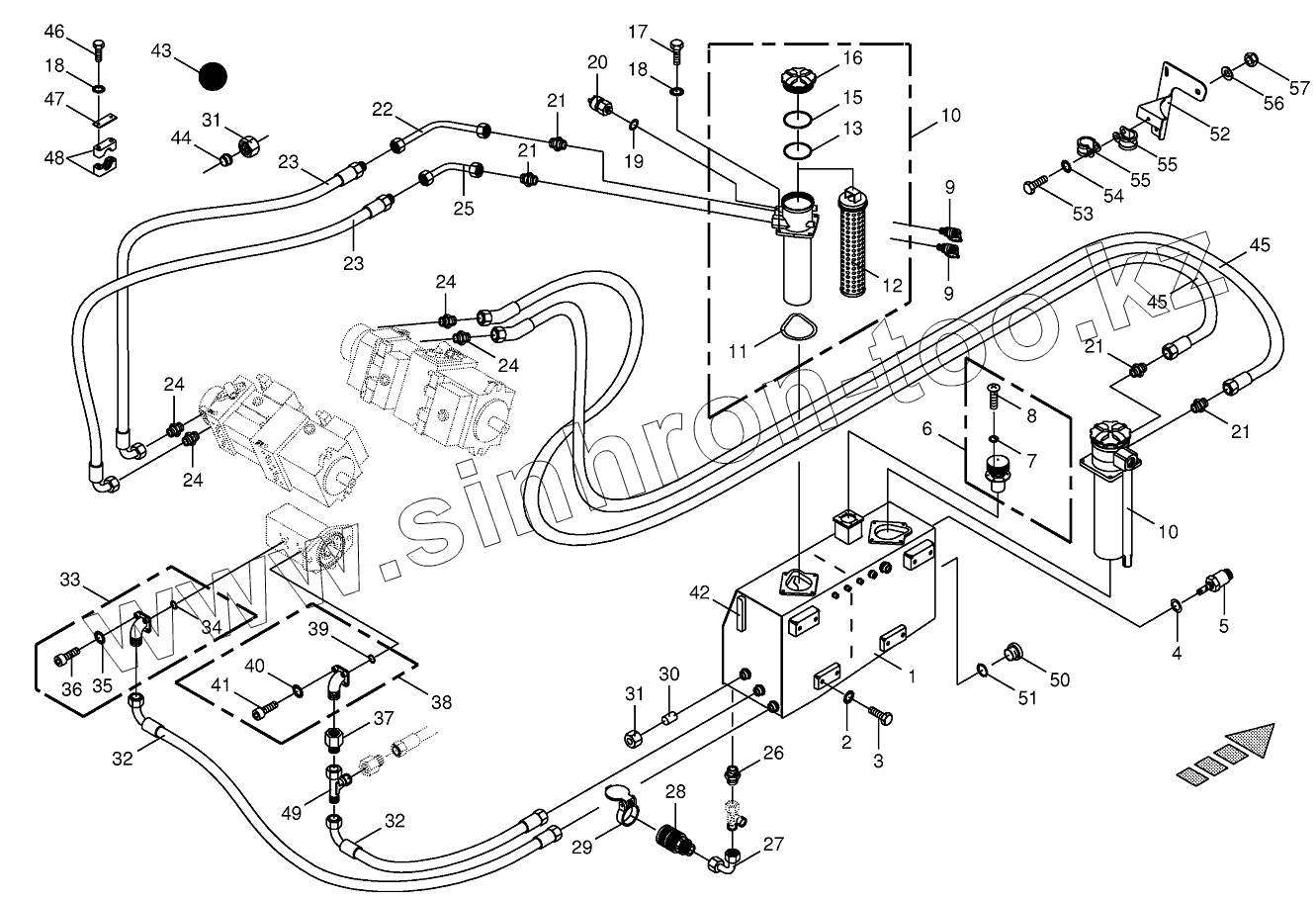

Позиция на иллюстрации Заводской номер детали Название детали
1 002136131 Oil reservoir
2 009099101 Detent edged washer
3 009006550 Hex head bolt
4 009377171 Gasket ring
5 003025101 Levelling switch
6 002191690 Filler neck
7 009370000 O-ring
8 009047690 Fillister head screw
9 009193600 Connector f.mini-test equipm.
10 002297073 Return-suction filter
11 009375671 O-ring
12 002297671 Replacement filter element
13 009375661 O-ring
15 009375641 O-ring
16 009385920 Cover
17 009006370 Hex head bolt
18 009099091 Detent edged washer
19 009377161 Gasket ring
20 002297100 Pressure switch
21 009196571 Male connector
22 200244660 Hydraulic line-incl. nozzle disc cap, cutting ring
23 009201230 High pressure hose line
24 009193690 Male connector
25 200244650 Hydraulic line-incl. nozzle disc cap, cutting ring
26 009210622 Male connector
27 270003740 Elbow
28 009211312 Sleeve
29 009199940 Cover-red
30 009193010 Locking cone w. O-ring
31 009208050 Nozzle disc cap
32 009201250 High pressure hose line
33 009197570 Flange connection
34 009376280 O-ring
35 009099061 Detent edged washer
36 009030451 Allen screw
36 009030512 Allen screw
37 009196600 Reducer fitting
38 009197580 Flange connection
39 270009880 O-ring
40 009099030 Detent edged washer
41 009030771 Allen screw
41 009016700 Allen screw
42 009400291 Oil level indicator
43 009260291 Oil-Id.-no.= 1ltr
44 009197490 Cutting ring
45 270011790 High pressure hose line
46 009002891 Hex head bolt
47 009251251 Cover plate
48 009251501 Tube clamp-2 halves
49 009208270 Adjustable L connection
50 900005760 Screw plug
51 900005770 Gasket ring
52 200253720 Holding plate
53 009006140 Hex head bolt
54 009099081 Detent edged washer
55 009240510 Tube clip w. rubber
56 009104130 Washer
57 009087060 Locknut
