  5. Hydraulic tank/suction lines 773001 - 801000

Каталог запасных частей к технике: KRONE BIG-X-800/1000. Hydraulic tank/suction lines 773001 - 801000

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
15
16
17
18
18
19
20
21
21
21
21
22
23
23
24
24
25
26
27
28
29
30
31
31
32
32
33
34
35
36
36
36
37
38
38
39
40
41
41
41
42
43
44
45
46
47
48
49
50
51
52

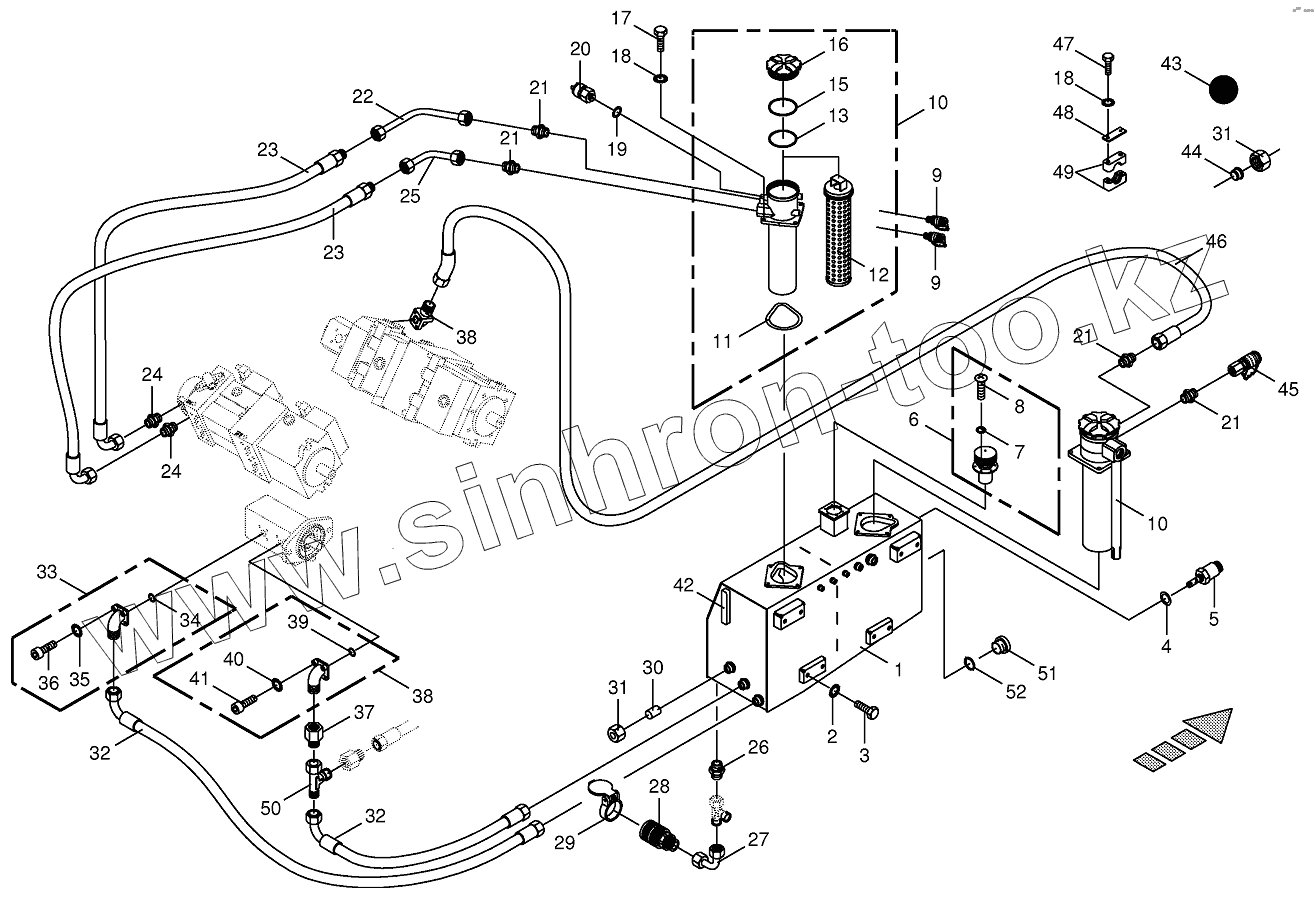

Позиция на иллюстрации Заводской номер детали Название детали
1 002136131 Oil reservoir
2 009099101 Detent edged washer
3 009006550 Hex head bolt
4 009377171 Gasket ring
5 003025101 Levelling switch
6 002191690 Filler neck
7 009370000 O-ring
8 009047690 Fillister head screw
9 009193600 Connector f.mini-test equipm.
10 002297073 Return-suction filter
11 009375671 O-ring
12 002297671 Replacement filter element
13 009375661 O-ring
15 009375641 O-ring
16 009385920 Cover
17 009006370 Hex head bolt
18 009099091 Detent edged washer
19 009377161 Gasket ring
20 002297100 Pressure switch
21 009196571 Male connector
22 200244660 Hydraulic line-incl. nozzle disc cap, cutting ring
23 009201230 High pressure hose line
24 009193690 Male connector
25 200244650 Hydraulic line-incl. nozzle disc cap, cutting ring
26 009210622 Male connector
27 270003740 Elbow
28 009211312 Sleeve
29 009199940 Cover-red
30 009193010 Locking cone w. O-ring
31 009208050 Nozzle disc cap
32 009201250 High pressure hose line
33 009197570 Flange connection
34 009376280 O-ring
35 009099061 Detent edged washer
36 009030451 Allen screw
36 009030512 Allen screw
37 009196600 Reducer fitting
38 009197580 Flange connection
39 270009880 O-ring
40 009099030 Detent edged washer
41 009030771 Allen screw
41 009016700 Allen screw
42 009400291 Oil level indicator
43 009260291 Oil-Id.-no.= 1ltr
44 009197490 Cutting ring
45 009196970 Connector f.mini-test equipm.
46 270004650 High pressure hose line
47 009002891 Hex head bolt
48 009251251 Cover plate
49 009251501 Tube clamp-2 halves
50 009208270 Adjustable L connection
51 900005760 Screw plug
52 900005770 Gasket ring
