Каталог запасных частей к технике: KRONE BIG-X-800/1000. Housing line/oil cooler

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
2
2
2
2
2
3
3
3
3
3
3
3
4
4
4
4
4
4
4
5
5
5
5
5
5
5
6
7
7
8
9
10
11
11
11
12
12
12
12
12
13
14
14
15
16
16
17
18
19
20
22
22
23
23
24
24
25
25
26
27
27
28
28
29
29
30
30
31
31
31
32
32
33
34
43
44
46
46
47
48
49
50
50
50
51
52
52
52
52
53
54

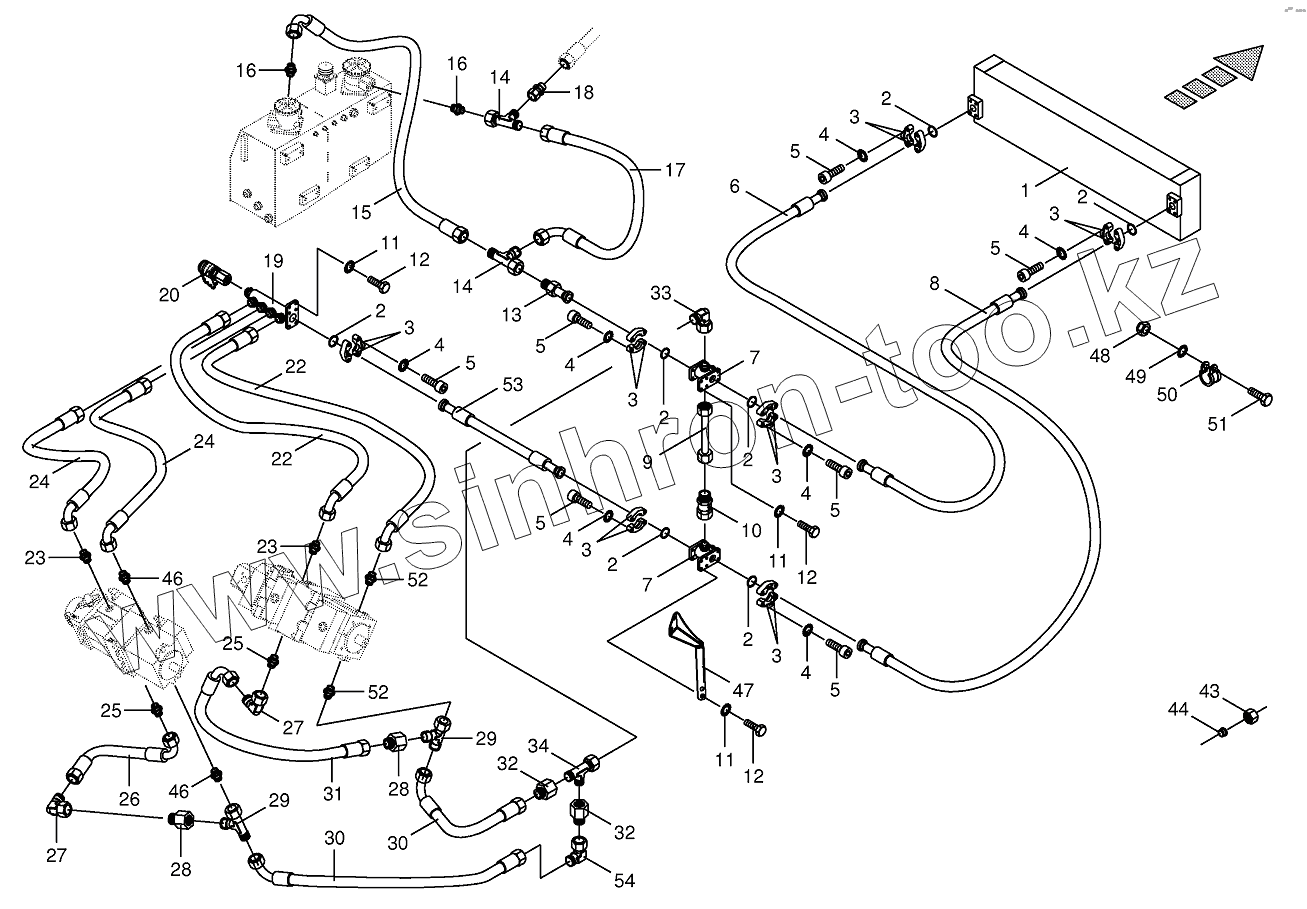

Позиция на иллюстрации Заводской номер детали Название детали
1 002150580 Oil cooler
2 009376470 O-ring
3 009193661 SAE-flange section-2 halves
4 009099110 Detent edged washer
5 009031391 Allen screw
6 009201210 High pressure hose line
7 002147600 Collector-radiator
8 009201220 High pressure hose line
9 200212080 Hydraulic line-incl. nozzle disc cap, cutting ring
10 002297111 Non-return valve
11 009099101 Detent edged washer
12 009006530 Hex head bolt
12 009006550 Hex head bolt
13 270002940 SAE-flange adapter
14 009208280 Adjustable L connection
15 009201201 High pressure hose line
16 009208201 Male connector
17 009201182 High pressure hose line
18 900002500 Reducer fitting
19 002147591 Collector-pump
20 270010190 Connector f.mini-test equipm.
22 270006290 High pressure hose line
23 900000840 Male connector
24 270010890 High pressure hose line
25 009211741 Male connector
26 009200960 High pressure hose line
27 009211730 Angle lug
28 900000830 Reducer fitting
29 900000820 Adjustable L connection
30 270013110 High pressure hose line
31 009200960 High pressure hose line
31 270011560 High pressure hose line
32 900000950 Reducer fitting
33 009208220 Angle lug
34 009208270 Adjustable L connection
43 009208050 Nozzle disc cap
44 009197490 Cutting ring
46 900002520 Male connector
47 200240211 Support
48 009087060 Locknut
49 009099081 Detent edged washer
50 009240660 Tube clip w. rubber
50 009240520 Tube clip w. rubber
51 009006140 Hex head bolt
52 900000840 Male connector
52 900002520 Male connector
53 270038420 High pressure hose line
54 009197110 Lug
