Каталог запасных частей к технике: KRONE BIG-X-700. Radiator frame/radiator door
1
2
3
4
5
6
7
7
7
7
7
7
7
7
7
7
7
7
7
8
8
8
8
8
9
9
9
9
9
9
10
11
12
13
14
14
15
15
16
17
18
19
20
21
22
23
24
25
25
25
25
25
25
26
26
27
27
27
27
27
27
27
27
27
27
27
28
28
28
28
29
30
31
32
33
33
34
34
35
36
37
38
39
39
39
39
40
41
42
43
44
45
45
46
46
47
48
49
50
51
52
53
54
54
54
54
55
56
56
57
58
59
60
61
62
63
64

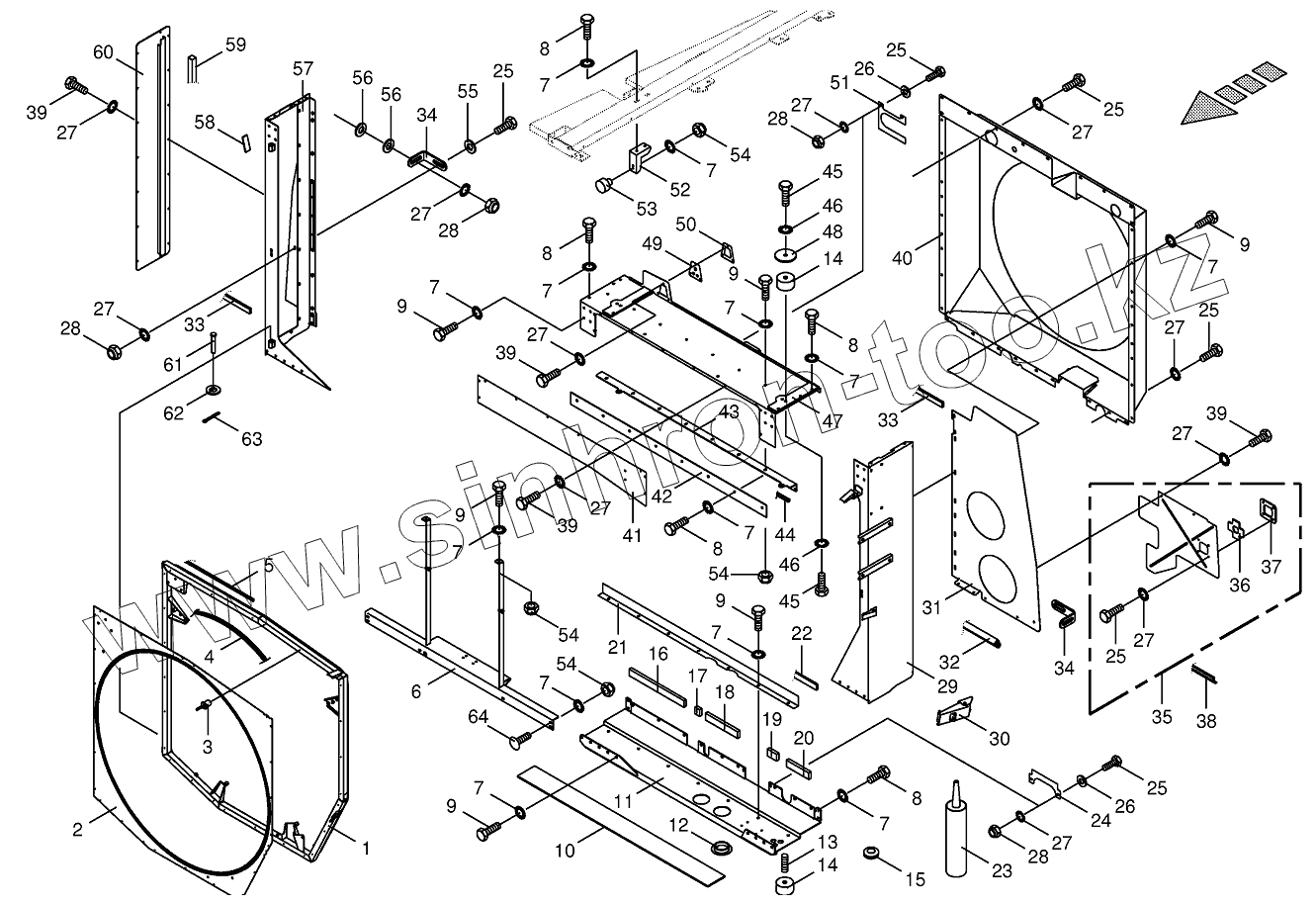

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 200201570 | Radiator door | |
| 2 | 200201800 | Cover plate | |
| 3 | 009142370 | Blind rivet | |
| 4 | 200210460 | Brush | |
| 5 | 200210450 | Rubber profile | |
| 6 | 200247540 | Rotor mounting | |
| 7 | 009099091 | Detent edged washer | |
| 8 | 009006360 | Hex head bolt | |
| 9 | 009006340 | Hex head bolt | |
| 10 | 200247270 | Rubber plate-bonded | |
| 11 | 200247250 | Floor plate | |
| 12 | 009251150 | Sealing plug | |
| 13 | 009059080 | Threaded pin | |
| 14 | 009242210 | Rubber pad | |
| 15 | 009242170 | Cable bushing | |
| 15 | 009405640 | Cable bushing | |
| 16 | 200247320 | Rubber plate-bonded | |
| 17 | 200247340 | Rubber plate-bonded | |
| 18 | 200247350 | Rubber plate-bonded | |
| 19 | 200247330 | Rubber plate-bonded | |
| 20 | 200247290 | Rubber plate-bonded | |
| 21 | 200211280 | Clamping angle-below | |
| 22 | 200211290 | Rubber plate-bonded | |
| 23 | 003037740 | Gluten | |
| 24 | 200247770 | Sealing plate-below | |
| 25 | 009006140 | Hex head bolt | |
| 26 | 009104130 | Washer | |
| 27 | 009099081 | Detent edged washer | |
| 28 | 009087060 | Locknut | |
| 29 | 200247380 | Side wall-left | |
| 30 | 009242190 | Clamping lock | |
| 31 | 200216110 | Sealing plate | |
| 32 | 009386941 | Rubber profile-Id.-no.= 1m | |
| 33 | 009404460 | Rubber profile-Id.-no.= 1m | |
| 34 | 002140770 | Angle | |
| 35 | 200248500 | Sealing plate | |
| 36 | 002132320 | Rubber seal | |
| 37 | 002132350 | Rubber support | |
| 38 | 002233911 | Rubber profile-Id.-no.= 1m | |
| 39 | 009006120 | Hex head bolt | |
| 40 | 200247750 | Air guide | |
| 41 | 200211160 | Cover plate-front | |
| 42 | 200211260 | Sealing plate-top | |
| 43 | 200247560 | Clamping angle-top | |
| 44 | 009404860 | Self-adhesive sealing strip-Id.-no.= 1m | |
| 45 | 009006560 | Hex head bolt | |
| 46 | 009099101 | Detent edged washer | |
| 47 | 200247520 | Cover plate | |
| 48 | 002259410 | Spacing washer | |
| 49 | 002132310 | Rubber seal | |
| 50 | 002132330 | Rubber support | |
| 51 | 200247760 | Sealing plate-top | |
| 52 | 002157940 | Strut | |
| 53 | 009242601 | Rubber pad | |
| 54 | 009087580 | Locknut | |
| 55 | 009106030 | Washer | |
| 56 | 009402870 | Washer | |
| 57 | 200247500 | Side wall-right | |
| 58 | 009385560 | Self-adhesive sealing strip-Id.-no.= 1m | |
| 59 | 009402310 | Self-adhesive sealing strip-Id.-no.= 1m | |
| 60 | 200247580 | Cover plate | |
| 61 | 002259401 | Pin | |
| 62 | 009103031 | Washer | |
| 63 | 009120671 | Cotter pin | |
| 64 | 009048501 | Coach bolt |
