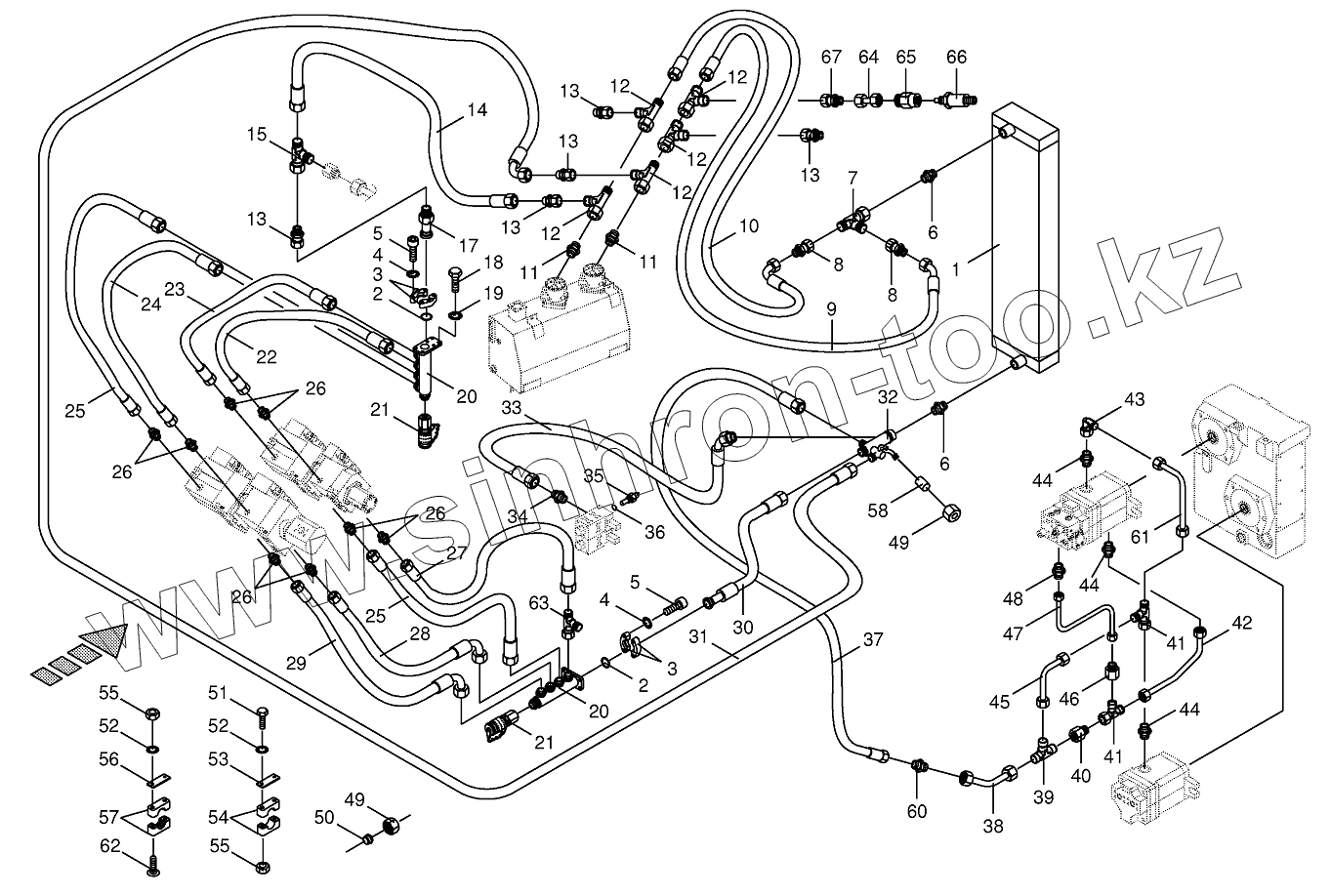

Каталог запасных частей к технике: KRONE BIG-X-700. Housing line/oil cooler

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
3
3
4
4
5
5
6
6
7
8
8
9
10
11
11
12
12
12
12
12
13
13
13
13
13
14
15
17
18
19
20
20
21
21
22
23
24
25
25
26
26
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
41
42
43
44
44
44
45
46
47
48
49
49
49
49
50
50
50
51
52
52
53
54
55
55
56
57
58
60
61
62
63
64
65
66
67
Позиция на иллюстрации Заводской номер детали Название детали
1 270035200 Oil cooler
2 009376470 O-ring
3 009193661 SAE-flange section-2 halves
4 009099110 Detent edged washer
5 009030591 Allen screw
6 009199281 Male connector
7 009199220 Adjustable L connection
8 009199260 Reducer fitting
9 270042100 High pressure hose line
10 270040100 High pressure hose line
11 009208201 Male connector
12 009208280 Adjustable L connection
13 009196600 Reducer fitting
14 270020750 High pressure hose line
15 009208270 Adjustable L connection
17 270002940 SAE-flange adapter
18 009006530 Hex head bolt
19 009099101 Detent edged washer
20 002147591 Collector-pump
21 270010190 Connector f.mini-test equipm.
22 270011870 High pressure hose line
23 270006300 High pressure hose line
24 270011900 High pressure hose line
25 270011880 High pressure hose line
26 900000840 Male connector
27 270011890 High pressure hose line
28 270009970 High pressure hose line
29 270009990 High pressure hose line
30 270011950 High pressure hose line
31 270004660 High pressure hose line
32 003601210 Collector-radiator
33 270040840 High pressure hose line
34 009199100 Male connector
35 009377171 Gasket ring
36 003034500 Temperature switch
37 270001570 High pressure hose line
38 200205820 Hydraulic line-incl. nozzle disc cap, cutting ring
39 270038700 T-reduction
40 009196590 Reducer fitting
41 009212380 Adjustable L connection
42 200205790 Hydraulic line-incl. nozzle disc cap, cutting ring
43 009211730 Angle lug
44 009211741 Male connector
45 200251070 Hydraulic line-incl. nozzle disc cap, cutting ring
46 009199600 Reducer fitting
47 200205800 Hydraulic line-incl. nozzle disc cap, cutting ring
48 009199640 Male connector
49 009199620 Nozzle disc cap
49 009211820 Nozzle disc cap
49 009208050 Nozzle disc cap
50 009197490 Cutting ring
50 009199610 Cutting ring
50 009211831 Cutting ring
51 009011600 Hex head bolt
52 009099091 Detent edged washer
53 009251251 Cover plate
54 270040820 Tube clamp-2 halves
55 009082120 Hex nut
56 009251300 Cover plate
57 009251041 Tube clamp-2 halves
58 009208581 Locking cone w. O-ring
60 009199210 Connector
61 200238620 Ligne hydraulique-incl. ecrou de buse-pastille. baque coupante
62 009047612 Coach bolt
63 900000820 Adjustable L connection
64 002307430 Double nipple
65 009199550 Unscrewing connection
66 200810400 Temperature sensor
67 900002500 Reducer fitting
