Каталог запасных частей к технике: KRONE BIG-X-700. Condenser for air conditioner-cpl.
1
2
3
4
4
4
4
4
4
5
5
5
6
7
8
9
9
9
9
9
9
10
10
11
12
12
13
13
14
14
14
15
15
15
15
15
16
16
16
16
16
17
18
19
19
19
19
20
20
21
22
23
23
23
23
23
23
23
23
24
24
24
24
25
26
27
28
28
29
29
30
31
31
32
33
34
34
35
36
37
37
37
37
38
38
39
39
40
41
42
43
44
48
49
58

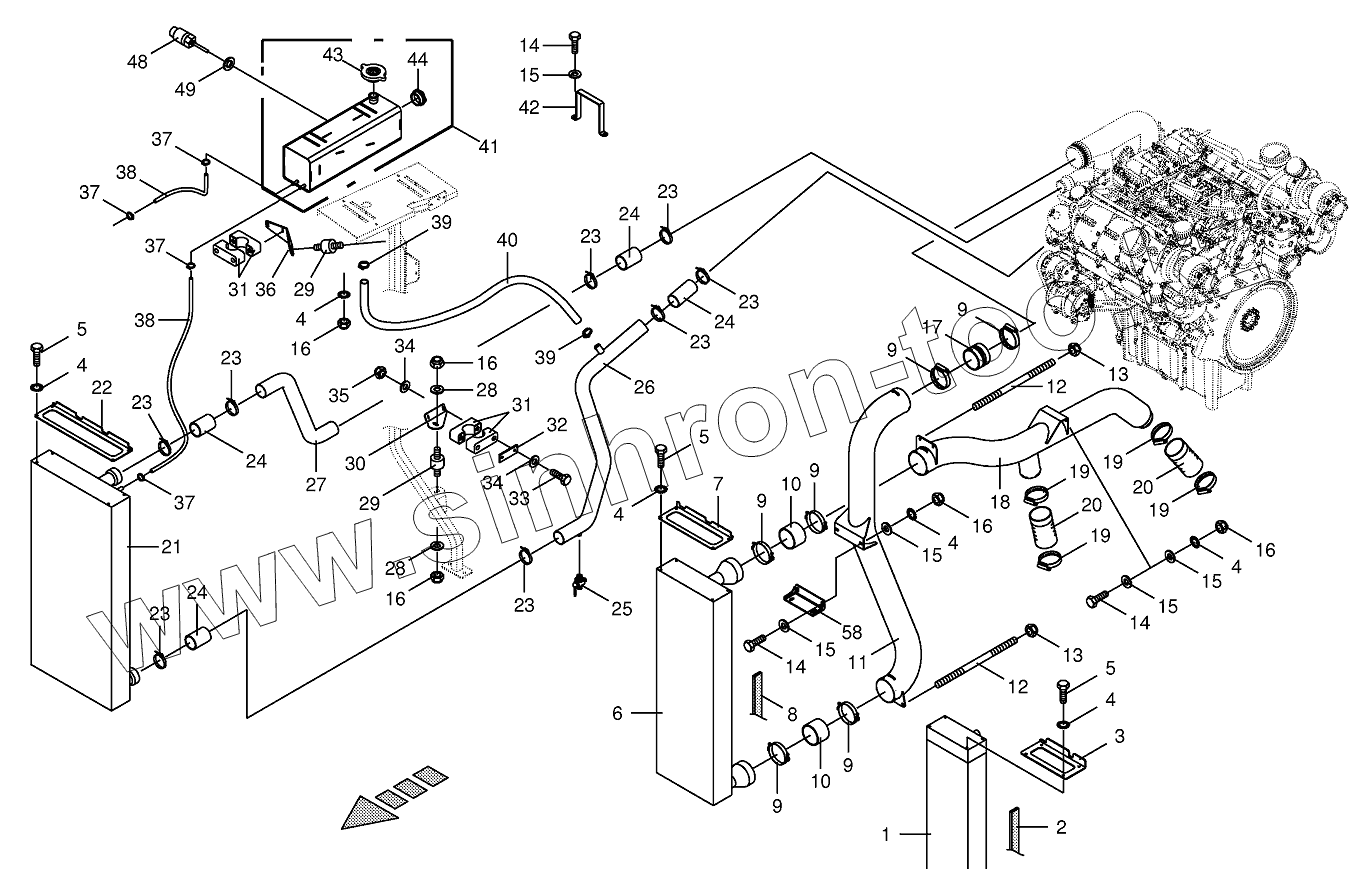

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 270035200 | Oil cooler | |
| 2 | 009385560 | Self-adhesive sealing strip-Id.-no.= 1m | |
| 3 | 200247610 | Cover plate | |
| 4 | 009099091 | Detent edged washer | |
| 5 | 009006340 | Hex head bolt | |
| 6 | 270035190 | Charge air cooler | |
| 7 | 200247620 | Cover plate | |
| 8 | 270040950 | Self-adhesive sealing strip-Id.-no.=1m | |
| 9 | 009405400 | Clamp | |
| 10 | 002223410 | Hose coupling-auburn | |
| 11 | 200249980 | Charge air tube | |
| 12 | 002280111 | Tightening spindle | |
| 13 | 009087060 | Locknut | |
| 14 | 009006370 | Hex head bolt | |
| 15 | 009104140 | Washer | |
| 16 | 009087580 | Locknut | |
| 17 | 270041750 | Charge air hose | |
| 18 | 200250160 | Charge air tube | |
| 19 | 002328270 | Hose clamp | |
| 20 | 009402120 | Hose | |
| 21 | 270035180 | Radiator for motor fluid | |
| 22 | 200247630 | Cover plate | |
| 23 | 009240190 | Joint bolt-hose clamp | |
| 24 | 002329582 | Sleeve | |
| 25 | 009193750 | Discharge drain | |
| 26 | 200250180 | Water tube | |
| 27 | 200250170 | Water tube | |
| 28 | 900001210 | Washer | |
| 29 | 270035800 | Rubber pad | |
| 30 | 200250280 | Supporting angle | |
| 31 | 270039620 | Tube clamp-2 halves | |
| 32 | 270039630 | Cover plate | |
| 33 | 009011590 | Hex head bolt | |
| 34 | 009104111 | Washer | |
| 35 | 009087041 | Locknut | |
| 36 | 200250290 | Supporting angle | |
| 37 | 009240011 | Tube clip | |
| 38 | 009401730 | Hose-Id.-no.= 1m | |
| 39 | 009240330 | Hose clamp | |
| 40 | 002330930 | Hose | |
| 41 | 270072931 | Cooling agent header tank | |
| 42 | 200254780 | Holding bow | |
| 43 | 009403790 | Sealing cap | |
| 44 | 270070550 | Inspection glass | |
| 48 | 200811261 | Water level sensor | |
| 49 | 200261170 | Gasket ring | |
| 58 | 200256820 | Support |
