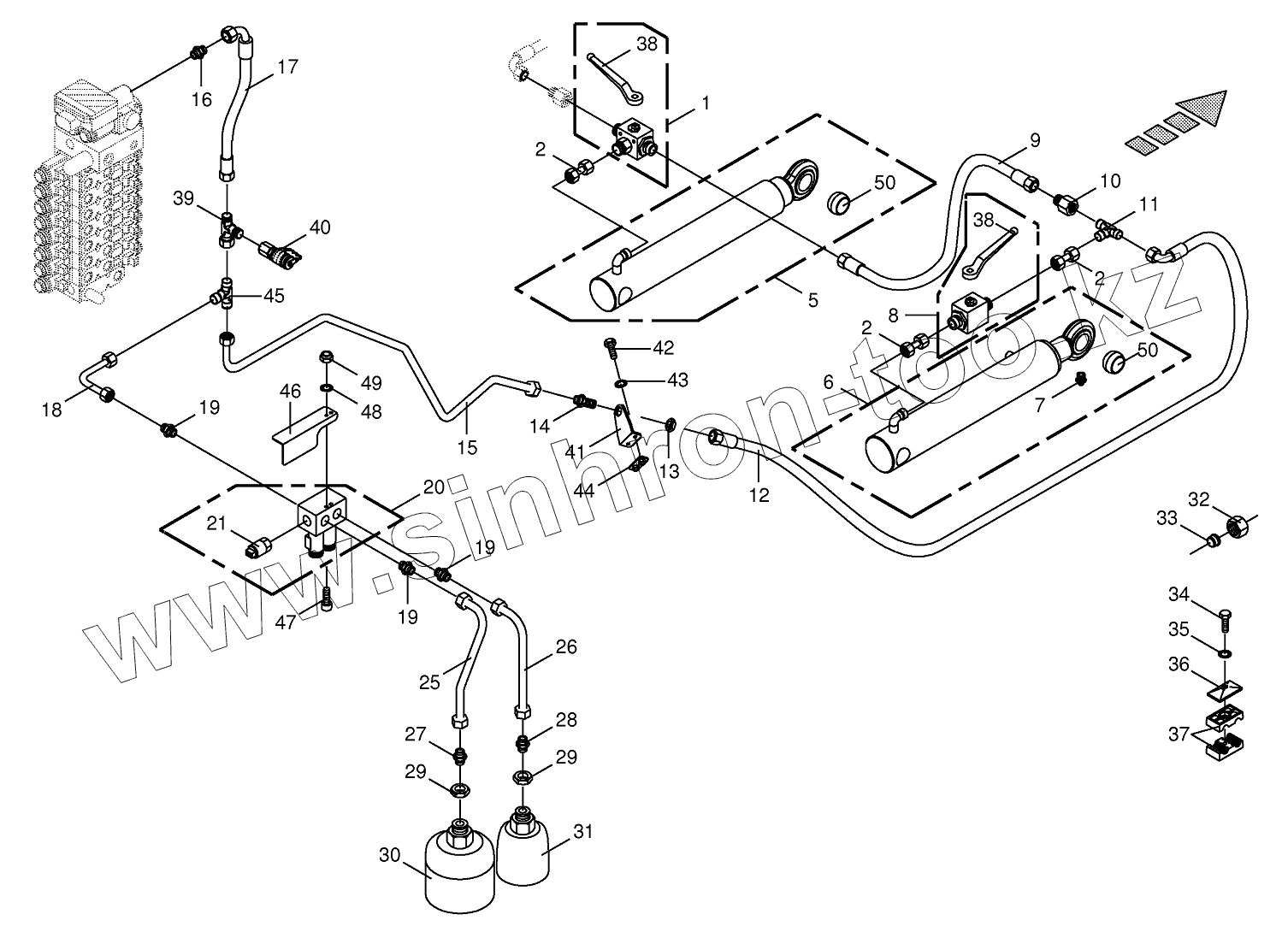

Каталог запасных частей к технике: KRONE BIG-X-700. Hydraulics - lift

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
2
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
19
20
21
25
26
27
28
29
29
30
31
32
33
34
35
36
37
38
38
39
40
41
42
43
44
45
46
47
48
49
50
50
Позиция на иллюстрации Заводской номер детали Название детали
270096230 270096230 Sealing set
009187013 009187013 Sealing set
1 009193090 Diverter valve
2 002307440 Double nipple
5 270069201 Hydraulic cylinder
6 270069191 Hydraulic cylinder
7 009192020 Grease niple
8 009211171 Two-way plug valve
9 270038520 High pressure hose line
10 009211840 Reducer fitting
11 009193150 T-reduction
12 270038440 High pressure hose line
13 009210951 Hex nut-low form
14 009212510 Straight 2-way connector
15 200244670 Hydraulic line-incl. nozzle disc cap, cutting ring
16 009211741 Male connector
17 270024480 High pressure hose line
18 200217520 Hydraulic line-incl. nozzle disc cap, cutting ring
19 009197620 Male connector
20 270008230 Lift.hydr. hook up-block
21 003025300 Pressure sensor
25 200207020 Hydraulic line-incl. nozzle disc cap, cutting ring
26 200207030 Hydraulic line-incl. nozzle disc cap, cutting ring
27 009211792 Male connector
28 009211440 Male connector
29 009085441 Hex nut-low form
30 009215510 Pressure accumulator
31 009212390 Pressure accumulator
32 009211820 Nozzle disc cap
33 009211831 Cutting ring
34 009010421 Hex head bolt
35 009099081 Detent edged washer
36 009251340 Cover plate
37 009251660 Tube clamp-2 halves
38 009196640 Hand lever-incl. screw, washer
39 009212380 Adjustable L connection
40 009196960 Connector f.mini-test equipm.
41 200245040 Support
42 009006170 Hex head bolt
43 009099081 Detent edged washer
44 002132870 Carrier plate
45 009211750 T-connector
46 200260830 Guard plate
47 009030550 Allen screw
48 009099061 Detent edged washer
49 009087041 Locknut
50 270066700 Joint bearing
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
