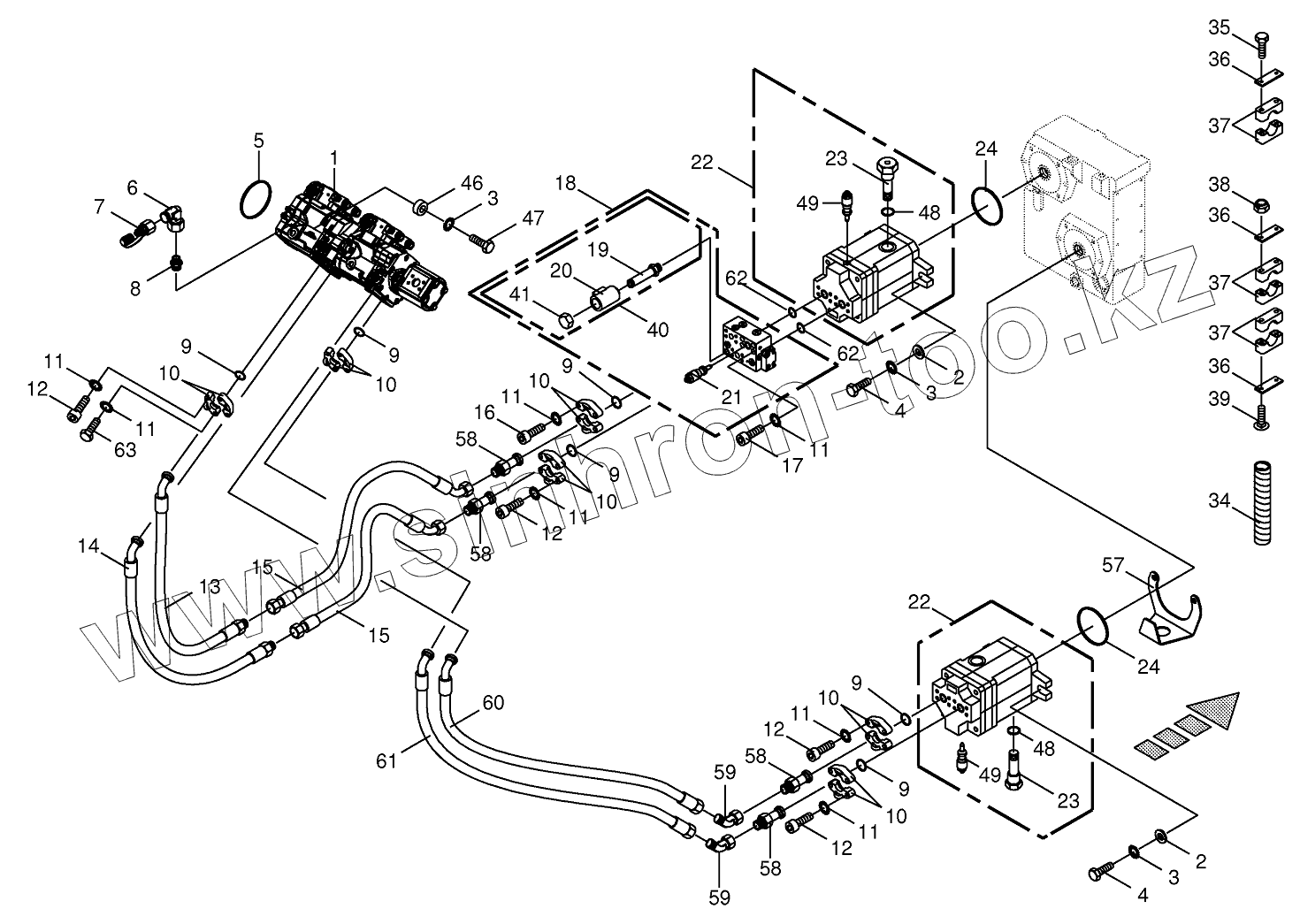

Каталог запасных частей к технике: KRONE BIG-X-700. Hydraulics - front attachment/feed rollers
1
2
2
3
3
3
4
4
5
6
7
8
9
9
9
9
9
9
10
10
10
10
10
10
11
11
11
11
11
11
11
12
12
12
12
13
14
15
15
16
17
18
19
20
21
22
22
23
23
24
24
34
35
35
35
36
36
36
37
37
37
38
39
40
41
46
47
48
48
49
49
57
58
58
58
58
59
59
60
61
62
62
63
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 270027310 | 270027310 | Sealing set | |
| 270016930 | 270016930 | Sealing set | |
| 270013060 | 270013060 | Sealing set | |
| 1 | 270068820 | Variable displacement pump | |
| 2 | 009106130 | Washer | |
| 3 | 009099121 | Detent edged washer | |
| 4 | 009006770 | Hex head bolt | |
| 5 | 009376100 | O-ring | |
| 6 | 009208250 | Lug | |
| 7 | 009199370 | Connector f.mini-test equipm. | |
| 8 | 009193680 | Male connector | |
| 9 | 270039240 | Flange gasket | |
| 10 | 009208611 | SAE-flange section-2 halves | |
| 11 | 009099110 | Detent edged washer | |
| 12 | 009031431 | Allen screw | |
| 13 | 270075980 | High pressure hose line | |
| 14 | 270075990 | High pressure hose line | |
| 15 | 270040000 | High pressure hose line | |
| 16 | 900021560 | Cheese head screw hex. I-6kt | |
| 17 | 009031492 | Allen screw | |
| 18 | 009191720 | Fast-stop valve | |
| 19 | 270006851 | 2/2-Directional-control valve | |
| 20 | 270006871 | Solenoid coil | |
| 21 | 270006860 | Pressure valve | |
| 22 | 009191870 | Fixed displacement motor | |
| 23 | 270016900 | Speed sensor | |
| 24 | 009376100 | O-ring | |
| 34 | 003012190 | Spiral strip-Id.-no.= 1m | |
| 35 | 009014380 | Hex head bolt | |
| 35 | 009014470 | Hex head bolt | |
| 36 | 009251251 | Cover plate | |
| 37 | 270039040 | Tube clamp-2 halves | |
| 38 | 009087580 | Locknut | |
| 39 | 900000250 | Coach bolt | |
| 40 | 270006881 | 2/2-Directional-control valve-cpl. | |
| 41 | 270018420 | Nut-with emergency hand operation | |
| 46 | 200239750 | Bushing | |
| 47 | 009006780 | Hex head bolt | |
| 48 | 900002920 | O-ring | |
| 49 | 270016910 | Pressure control valve | |
| 57 | 200253260 | Screeninig sheet | |
| 58 | 009199020 | SAE extern.screw thread flange | |
| 59 | 270039030 | Angle lug-45° | |
| 60 | 270069740 | High pressure hose line | |
| 61 | 270069730 | High pressure hose line | |
| 62 | 270039240 | Flange gasket | |
| 63 | 009002750 | Hex head bolt |
