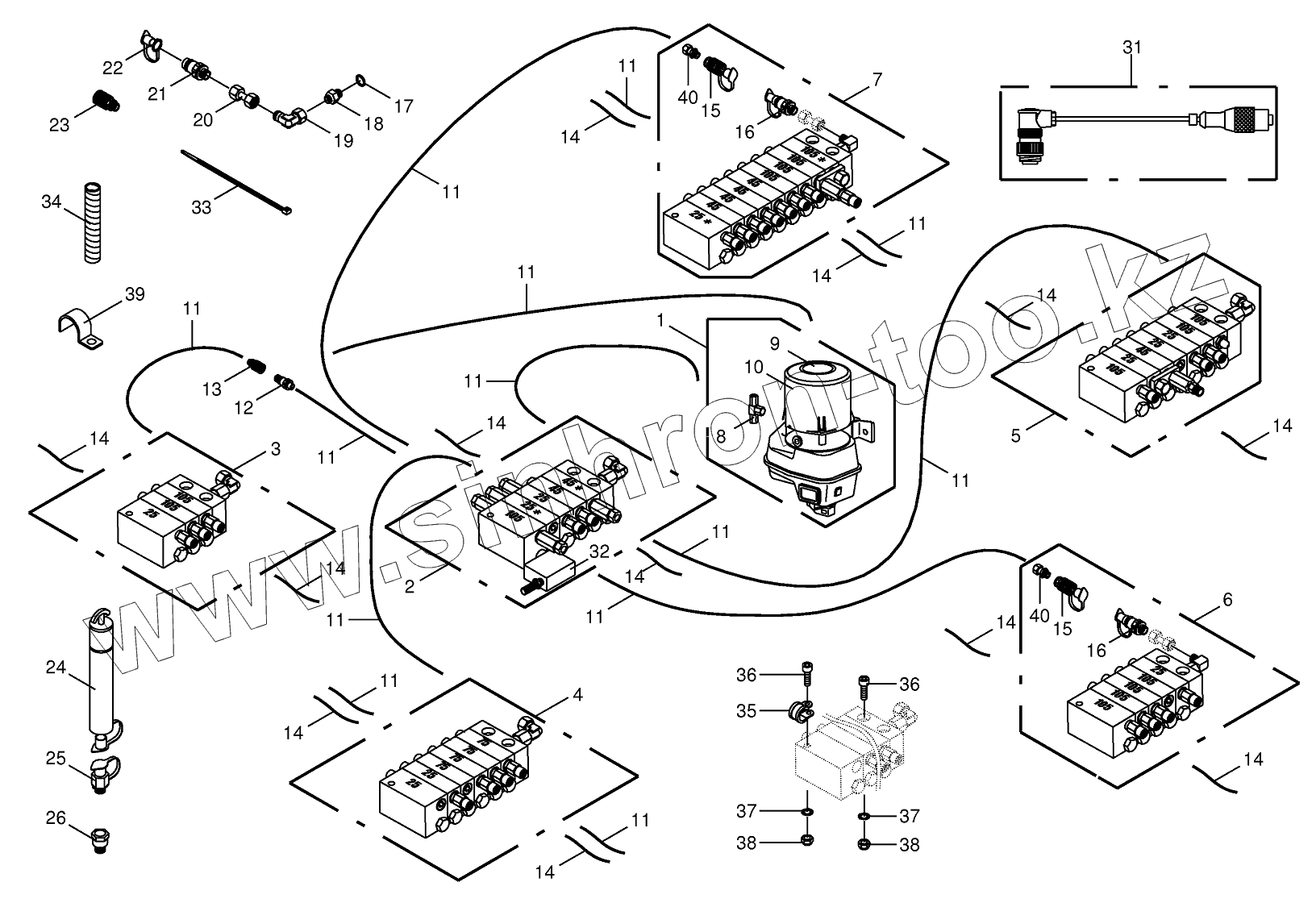

Каталог запасных частей к технике: KRONE BIG-X-700. Central lubrication

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
11
11
11
11
11
11
11
11
11
11
11
11
12
13
14
14
14
14
14
14
14
14
14
14
14
14
15
15
16
16
17
18
19
20
21
22
23
24
25
26
31
32
33
33
33
34
35
35
35
35
35
35
35
35
35
36
36
37
37
38
38
39
40
40
Позиция на иллюстрации Заводской номер детали Название детали
1 270028340 Pump
2 270089120 Main distributor
3 270058120 Combination of distributors-cracker
4 270028280 Combination of distributors-steering axle
5 270056980 Combination of distributors-ejection system / drive
6 270028300 Combination of distributors-Chopping aggregate
7 270089830 Combination of distributors-feed system
8 270028390 Pump
9 270028410 Cover
10 270028400 Grease storage tank
11 009404740 High pressure hose-Id.-no.= 1m
12 009404730 Connector plug
13 009404720 Sleeve
14 009389330 Plastic tube filled with grease-Id.-no.= 1m
15 270074940 Sleeve
16 270074950 Connector plug
17 009377360 Gasket ring
18 002132810 Reducing piece
19 009210671 Angle lug
20 002307430 Double nipple
21 009211450 Connector plug
22 009211711 Dust cap-red
23 009211300 Sleeve
24 009403930 Filling cylinder
25 009403920 Filling connection
26 270019980 Connector
31 200807930 Extension cable-4-pole
32 270028330 Proximity switch
33 009226740 Cable band
33 270012430 Cable band
34 270071290 Spiral strip-Id.-no.= 5m
35 009240170 Tube clip w. rubber
35 009240110 Tube clip w. rubber
35 009240090 Tube clip w. rubber
35 009240080 Tube clip w. rubber
35 009240100 Tube clip w. rubber
36 009030301 Allen screw
37 009105001 Washer
38 009087020 Locknut
39 270077090 Tube clamp
40 270068390 Screw-in connection
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
