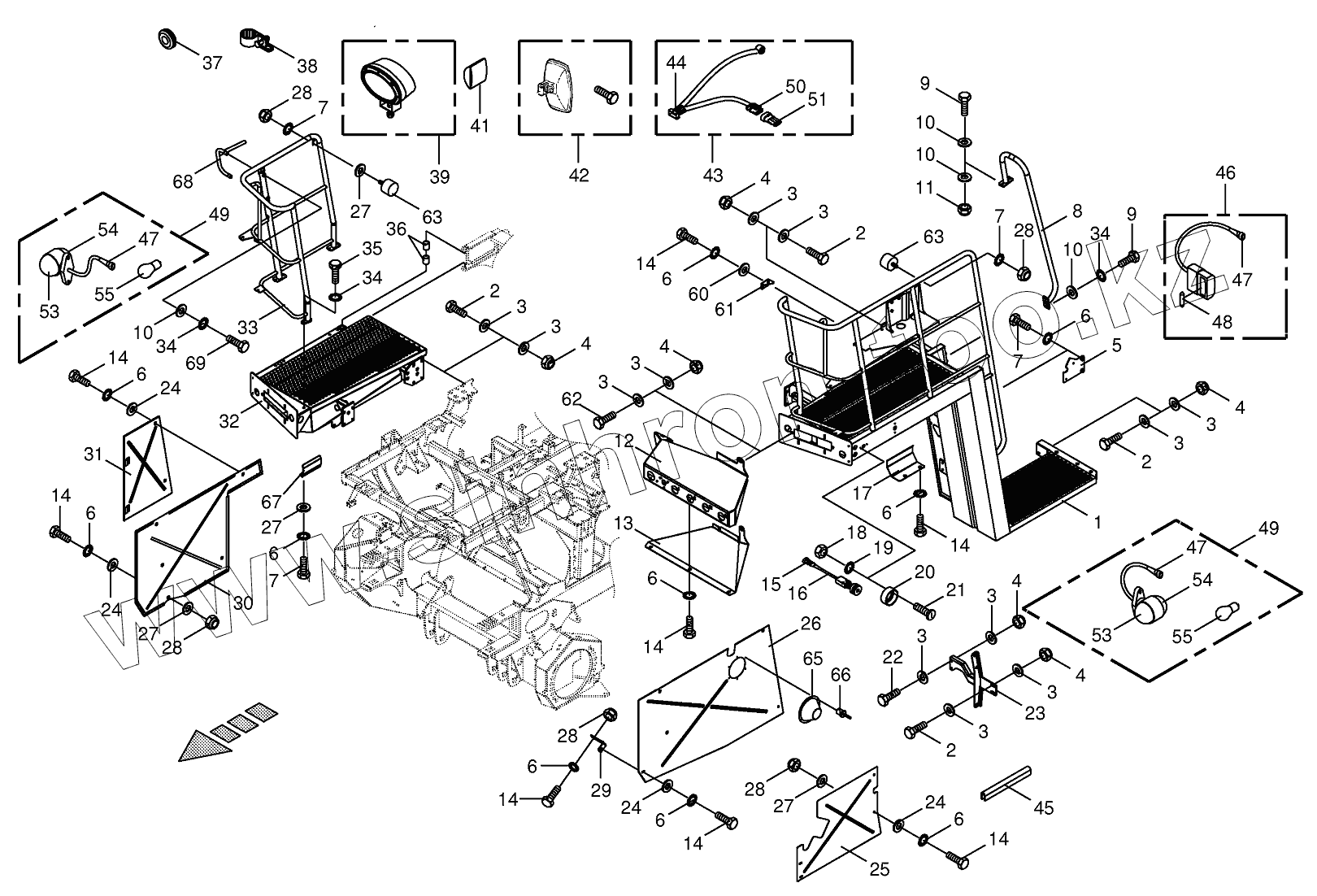

Каталог запасных частей к технике: KRONE BIG-X-700. Cab access left/platform right

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
5
6
6
6
6
6
6
6
6
6
6
7
7
7
7
8
9
9
10
10
10
10
11
12
13
14
14
14
14
14
14
14
14
15
16
17
18
19
20
21
22
23
24
24
24
24
25
26
27
27
27
27
28
28
28
28
28
29
30
31
32
33
34
34
34
35
36
37
38
39
41
42
42
42
43
44
45
46
47
47
47
48
49
49
50
51
53
53
54
54
55
55
60
61
62
63
63
65
66
67
68
69
Позиция на иллюстрации Заводской номер детали Название детали
009247670 009247670 Bulb
1 200259140 Ascendency-left
2 009014510 Hex head bolt
3 009103200 Washer
4 009087010 Locknut
5 200263170 Lamp support -left
6 009099081 Detent edged washer
7 009006120 Hex head bolt
8 002254493 Handrail-left
9 009006370 Hex head bolt
10 009104140 Washer
11 009087580 Locknut
12 200265501 Plug panel
13 200265491 Splash guard
14 009006140 Hex head bolt
15 003023550 Coupling socket-3-pole
16 003032482 Instantanequs cut-out switch
17 200267870 Switch protection
18 009082080 Hex nut
19 009099061 Detent edged washer
20 002289420 Switch protection
21 009030451 Allen screw
22 009006580 Hex head bolt
23 002249932 Platform retainer
24 009106040 Washer
25 200282400 Guard plate-left
26 200273440 Guard plate-left
27 009106030 Washer
28 009087060 Locknut
29 002257421 Screwing angle
30 200203530 Guard plate-right
31 002288231 Cover-right
32 200259121 Platform-right
33 200260691 Handrail-right
34 009099091 Detent edged washer
35 009006360 Hex head bolt
36 009353330 Bearing bush
37 009242340 Guidance sleeve
38 009240700 Screwless corrugatend tube
39 270058910 Work light
41 270011760 Blind angle mirror-heated
42 270011780 Rear view mirror-left
42 270011770 Rear view mirror-right
43 200805060 Cable-for rear view mirror
44 003030840 Plug-10-pole
45 009251110 Edge protection-Id.-no.= 1m
46 003032134 Lighting-left
47 003023560 Coupling socket-2-pole
48 009247090 Singel filament buld
49 003032291 Side light
50 003023520 Plug-3-pole
51 003033790 Blind-pin casing-3-pole
53 200807640 Pane-white
54 200807650 Pane-red
55 009247360 Singel filament buld
60 009104130 Washer
61 200265180 Support
62 009006560 Hex head bolt
63 009242630 Rubber pad
65 200273420 Cover
66 009140360 Blind rivet
67 200287610 Cover plate
68 200289200 Mirror support
69 009014370 Hex head bolt
