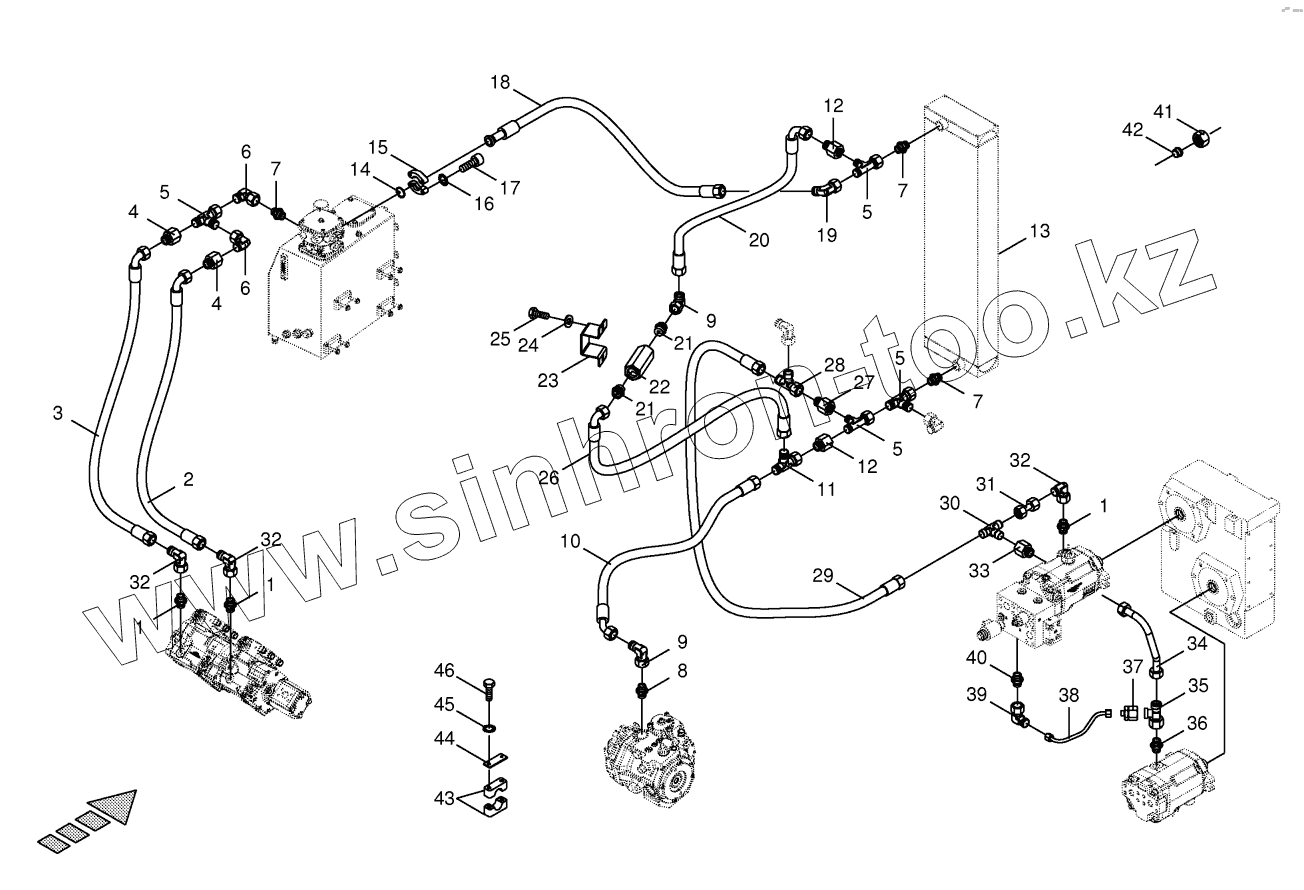

Каталог запасных частей к технике: KRONE BIG-X-700-1. Housing line / oil cooler

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
2
3
4
4
5
5
5
5
6
6
7
7
7
8
9
9
10
11
12
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
28
29
30
31
32
32
32
33
34
35
36
37
39
40
41
41
42
42
43
44
45
46
Позиция на иллюстрации Заводской номер детали Название детали
1 900000840 Male connector
2 270079500 High pressure hose line
3 270079490 High pressure hose line
4 900017900 Reducer fitting
5 009199220 Adjustable L connection
6 270041990 Angle lug
7 009199281 Male connector
8 900017830 Мale connector
9 009208230 Lug
10 270091380 High pressure hose line
11 009208280 Adjustable L connection
12 009199260 Reducer fitting
13 270035201 Oil cooler
14 900005820 O-ring
15 270045680 SAE-flange section-2 halves
16 009099110 Detent edged washer
17 009031391 Allen screw
18 270059780 High pressure hose line
19 900013850 Angle lug-45°
20 009200220 High pressure hose line
21 009208201 Male connector
22 270056830 Non-return valve
23 200268210 Filter support
24 009104130 Washer
25 009006140 Hex head bolt
26 270059770 High pressure hose line
27 009199250 Reducer fitting
28 009208270 Adjustable L connection
29 270039270 High pressure hose line
30 270058520 T-reduction
31 270058510 Double nipple
32 009197110 Lug
33 900000830 Reducer fitting
34 200268000 Hydraulic line-incl. nozzle disc cap, cutting ring
35 009212380 Adjustable L connection
36 009211741 Male connector
37 009199600 Reducer fitting
39 009199650 Angle lug
40 009199640 Male connector
41 009199620 Nozzle disc cap
41 009211820 Nozzle disc cap
42 009199610 Cutting ring
42 009211831 Cutting ring
43 270040820 Tube clamp-2 halves
44 009251251 Cover plate
45 009099091 Detent edged washer
46 009014470 Hex head bolt
