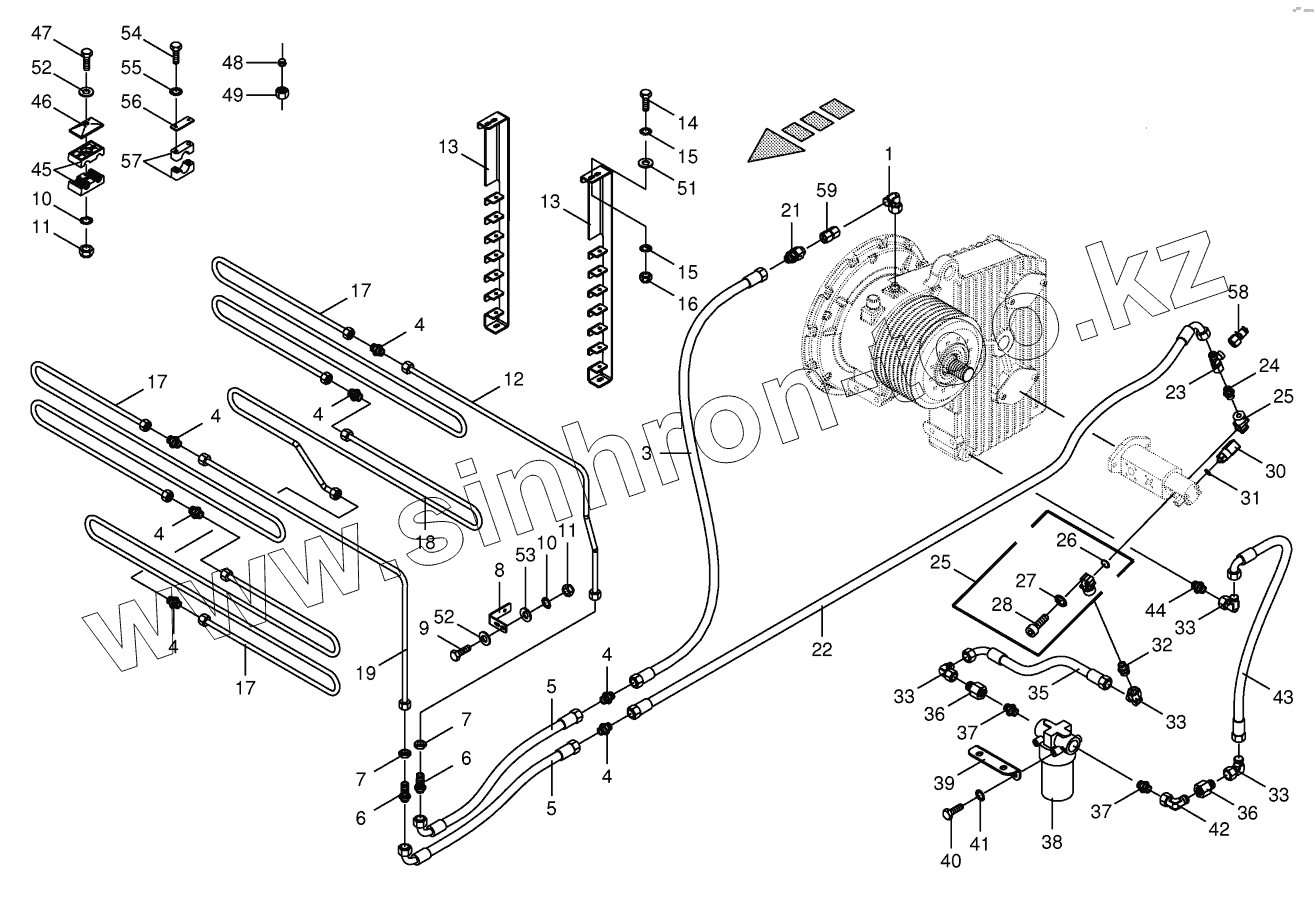

Каталог запасных частей к технике: KRONE BIG-X-700-1. Gear oil cooler 833001 - 853000

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
3
4
4
4
4
4
4
4
5
5
6
6
7
7
8
9
10
10
11
11
12
13
13
14
15
15
16
17
17
17
18
19
21
22
23
24
25
25
26
27
28
30
31
32
33
33
33
33
35
36
36
37
37
38
39
40
41
42
43
44
45
46
47
48
49
51
52
52
53
54
55
56
57
58
59
Позиция на иллюстрации Заводской номер детали Название детали
009192450 009192450 Filter element
900004000 900004000 O-ring
1 009210671 Angle lug
3 270012030 High pressure hose line
4 009210531 Connector
5 009200780 High pressure hose line
6 009212500 Straight 2-way connector
7 009210741 Hex nut-low form
8 200265440 Clamp holder-left
9 009006160 Hex head bolt
10 009099081 Detent edged washer
11 009087060 Locknut
12 200255950 Hydraulic line-incl. nozzle disc cap, cutting ring
13 200265430 Clamp holder
14 009006370 Hex head bolt
15 009099091 Detent edged washer
16 009087580 Locknut
17 200255920 Hydraulic line-incl. nozzle disc cap, cutting ring
18 200255930 Hydraulic line-incl. nozzle disc cap, cutting ring
19 200255940 Hydraulic line-incl. nozzle disc cap, cutting ring
21 900014250 Valve
22 270026710 High pressure hose line
23 009210750 Adjustable L connection
24 009210622 Male connector
25 270002320 Gear pump flange
26 009375130 O-ring
27 009099061 Detent edged washer
28 009030480 Allen screw
28 009030502 Allen screw
30 200802000 Pressure switch
31 009377171 Gasket ring
32 009211792 Male connector
33 009211730 Angle lug
35 270024470 High pressure hose line
36 009196590 Reducer fitting
37 009199570 Male connector
38 009192440 Suction filter
39 200271040 Filter carrier
40 009006530 Hex head bolt
41 009099101 Detent edged washer
42 009208220 Angle lug
43 009200960 High pressure hose line
44 009197620 Male connector
45 009251080 Tube clamp-2 halves
46 009251340 Cover plate
47 009014230 Hex head bolt
48 009210471 Cutting ring
49 009210430 Nozzle disc cap
51 009103611 Washer
52 009104130 Washer
53 009106030 Washer
54 900004770 Hex head bolt
55 009099061 Detent edged washer
56 009251360 Cover plate
57 270063810 Tube clamp-2 halves
58 009208690 Connector f.mini-test equipm.
59 002307440 Double nipple
