Каталог запасных частей к технике: KRONE BIG-X-700-1. Wear parts-driver's seat-standard

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

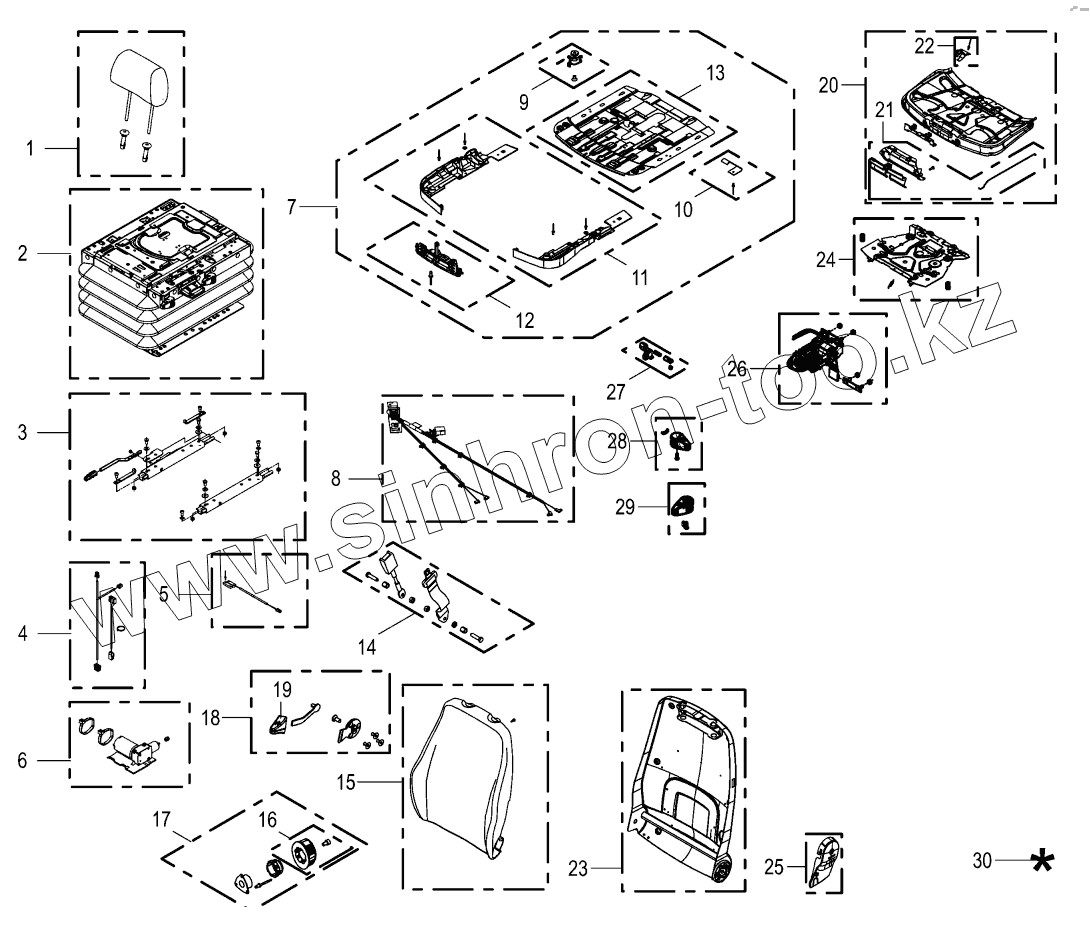

Позиция на иллюстрации Заводской номер детали Название детали
270170320 270170320 Small parts seat switch
270077510 270077510 Mastic
270077580 270077580 Mastic
270077330 270077330 Compressor
1 200278990 Headrest
2 270077320 Suspension
3 002205530 Variable trail kit
4 270077370 Wiring harness
5 270077620 Seat switch-with solenoid
6 270077590 Compressor-cpl.
7 270170240 Seat depth adjustment standard-seat
8 270077290 Wiring harness
9 270111660 Lever
10 270111670 Spring plate cpl. driver’s seat
11 270111690 Cover
12 270111680 Screening driver’s seat
13 270170170 Slider for adjustment
14 270010350 Seatbelt-optional
15 270170070 Upholstery (backrest) standard-seat
16 270170120 Handle wide swath system standard-seat
17 270170110 Activation wide swath system stand.-seat
18 270170140 Activation backrest adjust. stand-seat
19 270170130 Handle backrest adjustment standard-seat
20 270170220 Seat cushion tilt adjustment stand.-seat
21 270170200 Activation seat adjustment standard-seat
22 270170210 Spring sheet
23 270170190 Back part standard-seat
24 270170310 Rocker seat switch standard-seat
25 270170160 Cover left standard-seat
26 270077270 Level control
27 270170010 DV-adjuster standard-seat
28 270170020 Handle damper standard-seat
29 270169980 Handle LHF standard-seat
30 270169890 Small parts fast. suspens. standard-seat
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
