Вернуться на главную
Поиск
Каталоги запчастей к технике
Сельхозтехника
KRONE
BIG-X-700-1
Wiring Harness-rear/drive valve
Каталог запасных частей к технике: KRONE BIG-X-700-1. Wiring Harness-rear/drive valve
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
AGCO
Amity
CASE IH
DongFeng
Fortschritt
Foton
Franz Kleine
Gaspardo
Great Plains
KRONE
KUHN
Lemken
Lovol
MacDon
Massey Ferguson
New Holland
TIGARBO
Vaderstad
Versatile
Wirax
Агро
Агротехмаш
Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш»)
БЭМЗ
ВгТЗ
Воронежсельмаш
ВТЗ
Гомсельмаш
ДКЗ
ЗАО "Техника-сервис"
ЗиД
КЗК
Кировец-Ландтехник
Клевер
Красная Звезда
Лидагропроммаш
Лидсельмаш
ЛТЗ
Машстройхолдинг
Минитракторы
Мордовагромаш
МТЗ
Навигатор-Новое машиностроение
Нефтекамский автозавод
ПТЗ
Ремком
РСМ
Сибсельмаш
ТеКЗ
ТКЗ
ХЗТСШ
ХТЗ
ЮМЗ
Модель
Не выбрано
280CV-Q, 320CV-Q, 280CRI-Q (2013)
280CV-Q, 320CV-Q, 280CRI-Q (2013)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
AFL243RS (2013)
AM 203CV, AM 243CV, AM 283CV (2018)
AM 203CV, AM 243CV, AM 283CV (2018)
AM 203CV, AM243CV, AM283CV (2018)
AM 203CV, AM243CV, AM283CV (2018)
AM 243 (2018)
AM 243CV (2018)
AM 243CV (2018)
AM 243CV, AM283CV (2018)
AM 283 (2018)
AM 283CV (2018)
BiG X 500 (2018)
BiG X V8, BiG X V12 (2018)
BIG-M-400 (2016)
BIG-M-420 (2016)
BIG-M-420 (2016)
BIG-M-I (2016)
BIG-M-I (2016)
BIG-M-I (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-X-1000 (2016)
BIG-X-1000 (2016)
BIG-X-1100 (2016)
BIG-X-480 (2016)
BIG-X-480 (2017)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-530 (2016)
BIG-X-530 (2017)
BIG-X-580 (2016)
BIG-X-580 (2017)
BIG-X-600 (2016)
BIG-X-600 (2016)
BIG-X-600 (2016)
BIG-X-630 (2016)
BIG-X-630 (2017)
BIG-X-650 (2010)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-700 (2010)
BIG-X-700 (2013)
BIG-X-700 (2013)
BIG-X-700-1 (2013)
BIG-X-700-1 (2013)
BIG-X-700-1 (2016)
BIG-X-700-1 (2016)
BIG-X-700-1 (2016)
BIG-X-800 (2016)
BIG-X-800 (2016)
BIG-X-800/1000 (2013)
BIG-X-850-1 (2018)
BIG-X-850-1/1100-1 (2013)
BIG-X-850-1/1100-1 (2013)
BIG-X-850/1100 (2013)
BIG-X-V8/BIG-X-V12 (2013)
BIG-X-V8/BIG-X-V12 (2013)
BIG-X-V8/BIG-X-V12 (2013)
Easycollect (2018)
EasyCut F360M (2018)
EasyFlow 300, 380 (2012)
EasyFlow 3000, 3800 (2013)
EasyFlow 3000, 3800 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EC 27/32 (2013)
EC 28/32 (2013)
EC 28/32 (2013)
EC 28/32 (2013)
EC 28/32CV (2013)
EC 28/32CV (2013)
EC 28/32CV (2013)
EC 28/32M (2013)
EC 28/32M (2013)
EC 28/32P (2013)
EC 28/32P (2013)
EC 28/32P (2013)
EC 28M (2013)
EC 32CRI (2013)
EC 32CRI (2013)
EC 32CRI (2013)
EC 32CV (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC F280 (2018)
EC F280 / F320 (2013)
EC F280 M (2013)
EC F280/320/360 (2013)
EC F320 (2018)
EC F320 M (2013)
EC F320 M (2013)
EC F320CV (2013)
EC F320M/F360M (2013)
EC F360 (2018)
EC R280 (2013)
EC R320 (2013)
EC R360 (2013)
EC R400 (2018)
EC-9000 (2008)
EC270CV/320CV (2013)
EC280/320 (2013)
EC280/320 (2013)
EC280/320 (2013)
EC280CV-Q/320CV-Q (2013)
EC280CV/320CV (2013)
EC280CV/320CV/280CR (2013)
EC280CV/320CV/C280CRI (2013)
EC28CV/32CV/32CV-F (2013)
EC28CV/C32CV/32CV-F (2013)
EC32CV/32CV-F (2013)
EColl.6000,7500,6000FP (2013)
EColl.6000,7500,9000,6000F (2013)
EColl.6000,7500,9000,6000F/FP (2013)
EColl.6000,7500,9000,6000F/FP (2013)
EColl.6000-7500-9000-6000CL/JD (2013)
ECollect 753, 903, 1053 (2013)
ECollect753, 903, 1053 (2013)
ECollect753, 903, 1053 (2013)
ECR280CV/320CV (2012)
KW 8.50-8 (2018)
KWT 7.70-6X7, KWT 8.50-8, KWT 10.50-8X7 (2018)
X-Disc 6200 (2013)
X-Disc 6200 (2013)
Схема
>
Не выбрано
Feeder
Feeder Housing with support foot
Grain collecting plate/slotted cover
Lower feed rollers
Lower feed roller bearing
Top feed rollers
Top feed roller bearing
Cover-Feeder Housing
Auxiliary gearbox/Drive
Drive-feed rollers
Angle gear
Roller gear below
Top roller gearbox
Oscillating levers/Tension spring
Pivoting frame
Chopping aggregate-cpl.
Chopping drum support
Chopping drum support-mounting parts
Drum base-spring-mounted
Husk/friction ground-spring-mounted
Chopping drum
Chopping drum bearing/counter bearing
Tensioning device-main drive
Belt guide-main drive
Angle sensor-chopping drum
Shear bar adjustment
Sharpening
Sharpening device drive
Transfer channel-spring-mounted
Grass channel-spring-mounted
Grain conditioner cpl./cracker duct-spring-mounted
Cracker housing-mounting parts-spring-mounted
Roller front
Roller back
E-motor and
Pulley for changing directions
Cracker drive/tensioning device
Rope winch/Installation car
Discharge accelerator/bearing
Discharge accelerator housinge-spring-mounted
Auger-gearbox
Duct nozzle
Mounting parts discharge chute rotation
Channel union-HD parts
Discharge chute assembl.
Upper discharge chute with wear plates
Upper discharge chute "short" with wear plates
Upper discharge chute-HD parts
Discharge flap-end piece
Discharge chute extension 10-row
Discharge chute extension 12-row
Upper discharge chute-mounting parts
Discharge chute extension 14-row
Upper discharge chute-mounting parts 14-row
Camera surveillance/Rear view mirror
ForageCam
Cab-frame/mounting parts
Cab-control panel (roof)/circuit board
Cab-glazing
Glass wiper
Steering columm
Wear parts-driver's seat
Cab-Sound deadening
Cab-roof
Cab-rear covering/passenger seat
Cab-drawer
Control box mounting parts
Control box/controls eletronic-part I
Control box/controls eletronic-part II
Air conditioning
Evaporator
Frame/trailer hitch/ascending ladder
Tank protection
Cab access left/platform right
Additional tread
Tool box-pivoting
Panelling frame/Cladding-front top
Panelling frame/Cladding-back top
Battery box
Mudguard
Fold-away warning panel
Front panel/Headlight
Cladding-lateral
Cladding-back
Tyres
Steering axle rocker arm
Steering axle
Variable disqlacement pump
Variable disqlacement pump
Hydraulic tank/suction lines
Housing line/oil cooler
Traction drive pump
Traction drive wheel engine-front
Traction drive wheel engine-rear
Return lines-traction drive
Oil leckage pipes/return lines
Charge pressure line-part 1
Charge pressure line-part 2
Hydraulics-sieve drive
Hydraulics-front attachment/feed rollers
Valve block with support-work hydraulics
Hydraulic steering system
Hydraulic brakes
Hydraulics-pump 3 times/storage chorging valve
Hydraulics-lift
Hydraulics cpl.-discharge chute
Hydraulics-discharge chute-14-row
Hydraulics-front attachment
Hydraulics-sharpening device/transv. ground following
Lines main clutch
Hydraulics-additive connection back
Hydraulics-additive connection back
Gear molasses pump
Additive connection for trailer
Diesel fuel tank
Diesel fuel pipe-Part I
Diesel fuel pipe-Part II
Auxiliary tank
Additional tank for silage agent system
Silage agent system/Wiring harness
Diesel engine/maintenance parts
Clutch/Silencer
Motor output gear
Gear oil cooler
Hydraulic four-surface clutch
Ventilator wheel/Drive
Radiator frame/radiator door
Condenser for air conditioner-cpl.
Air cleaning equipment
Rotor/Air conditioner mounting
Sieve drum
Suction fan
Air pressure-Blow-out gun
Air pressure-Feeder
Wiring harness fastening
Wiring harness-control box/cab
Wiring harness-panel
Wiring loom-cab
Wiring harness-below the cabin
Wiring Harness-lateral left
Wiring Harness-chopping aggregate/backlash-alarm
Wiring Harness-valve block
Wiring loom-hydraulic pumps
Wiring Harness-engine/diesel pumps
Wiring Harness-rear/drive valve
Wiring Harness-lighting-front
Wiring Harness-lighting-back
Wiring harness-auxiliary hydraulics
CAN-printer
CropControl
Moisture measurement
RockProtect
Wiring harness-CropControl/RockProtect
Several wiring looms
Indicator/parking light commutation
Battery and ground cable
Lighting/returning horn-back
Additional axis
Hydraulics-additional axis
Hydraulic panel-additional axis
Electronics-additional axis
Installation car
Fire extinguisher
Central lubrication
Spare parts case for central lubrication-BEKA MAX
P.T.O shafts-roller drive
P.T.O shafts-drive-Pick-up
P.T.O shafts-roller gear-below
Double universal joint
Warning signs
General information labels
Label-Circuit board
1
2
3
4
5
6
7
7
7
7
8
8
9
9
9
9
10
11
12
13
14
15
16
18
19
20
21
22
23

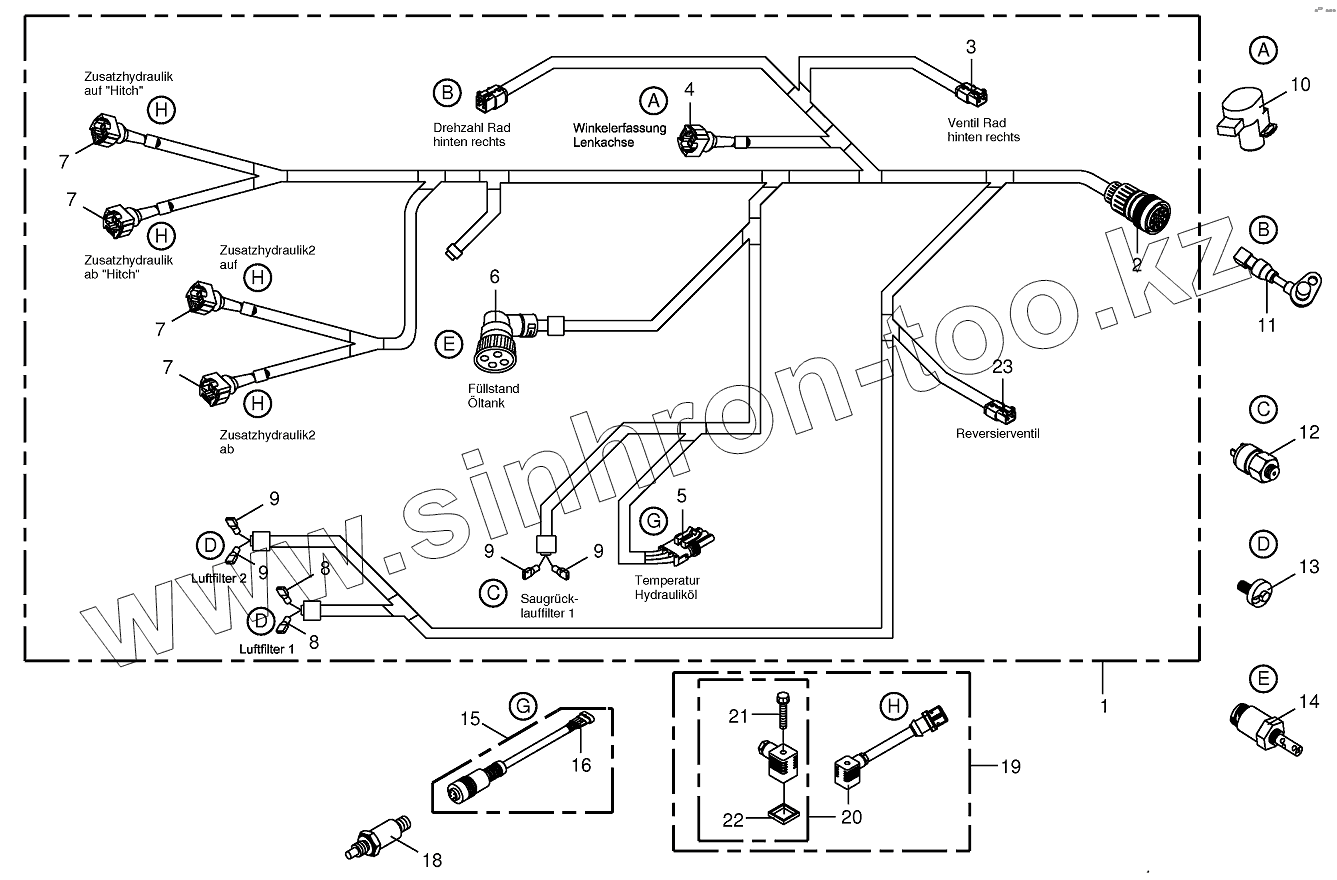

Позиция на иллюстрации
Заводской номер детали
Название детали
1
200814741
Wiring harness-rear/drive valve
2
003024310
Plug-31-pole
3
003033160
Plug-2-pole
4
003031150
Jet-plug-3-pole
5
003023530
Plug-4-pole
6
003031160
AMP-circular plug-4-pole
7
003031140
Jet-plug-2-pole
8
003026890
Flat sleeve-blue
9
003026880
Flat sleeve-red
10
200804350
Sensor-2-pole
11
200816870
Speed sensor
12
002297100
Pressure switch
13
002210710
Grooming switch
14
003025101
Levelling switch
15
003032271
Adapter wire-4-pole
16
003023540
Coupling socket-4-pole
18
200810400
Temperature sensor
19
200804220
Adapter wire-optional
20
003034120
Valve plug-black , low mounting form
21
003021820
Screw with straight-line curls
22
003011860
Gasket
23
003033160
Plug-2-pole
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
