Каталог запасных частей к технике: KRONE BIG-X-700-1. Cab-control panel (roof)/circuit board
1
2
3
3
4
4
5
5
5
6
7
8
9
10
10
11
11
11
11
12
12
12
12
13
14
14
14
15
16
17
18
19
20
21
21
21
21
22
23
24
25
26
27
27
27
28
29
29
30
31
32
32
33
33
34
34
35
36
36
37
37
38
39
40
41
42
42
42
42
42
42
42
42
43
44
45
46
47
48

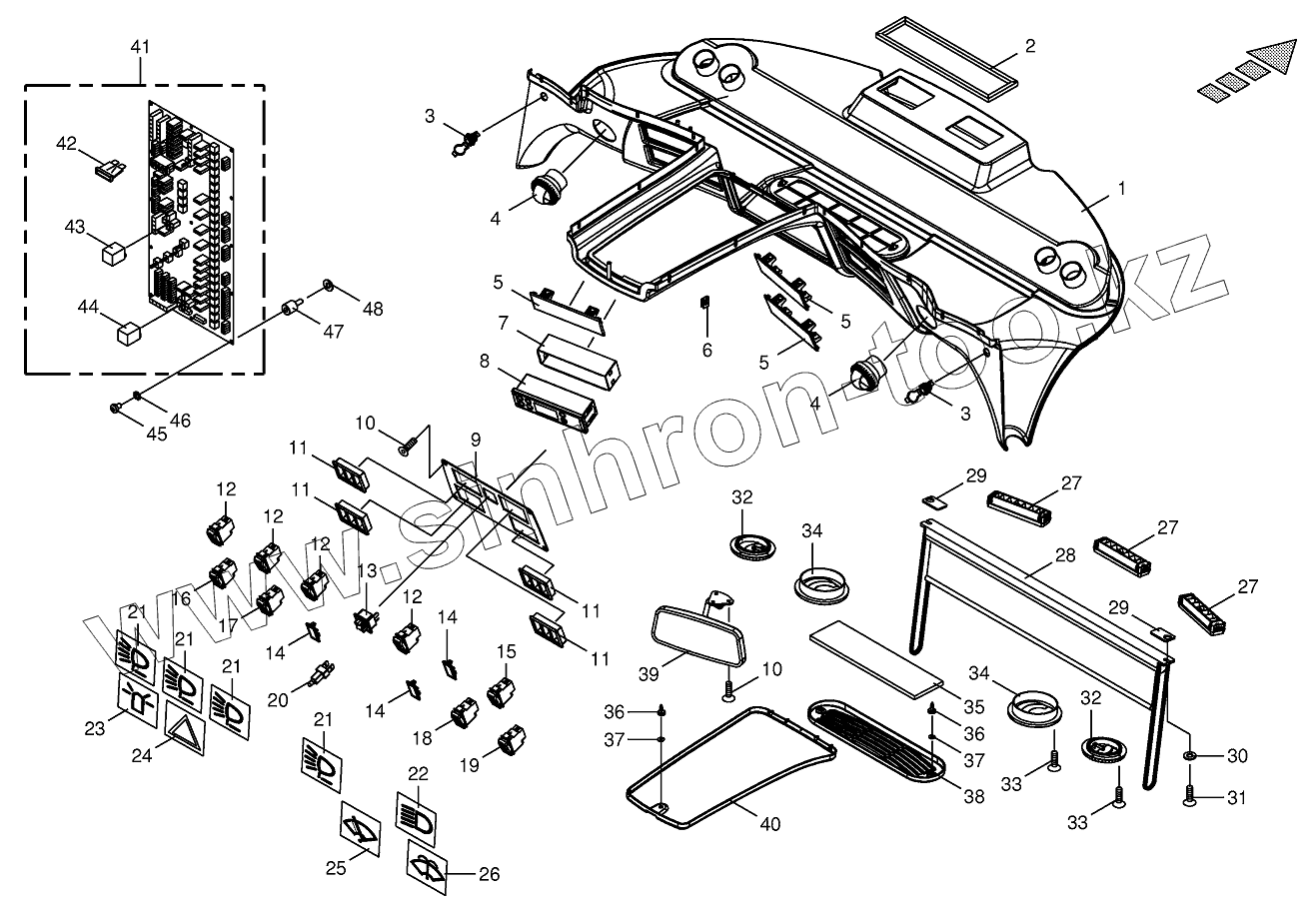

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 270050250 | Roof console-front | |
| 2 | 200274430 | Gasket | |
| 3 | 002206400 | Built-in socket-2-pole | |
| 4 | 200274310 | Round nozzle | |
| 5 | 002204360 | Blind cover | |
| 6 | 200274390 | Sheet nut | |
| 7 | 002204370 | Frame for radio cut-out | |
| 8 | 270008410 | Control unit | |
| 9 | 200274400 | Switch plate | |
| 10 | 200274480 | Fillister head screw | |
| 11 | 003027100 | Frame | |
| 12 | 003025240 | Switch-ON- OFF | |
| 13 | 003025330 | Mirror switch | |
| 14 | 003026530 | Cover | |
| 15 | 003033590 | Combi-switch | |
| 16 | 003025260 | Switch-ON- OFF | |
| 17 | 003025250 | Switch-warning lights | |
| 18 | 003033600 | Combi-switch | |
| 19 | 003028050 | Switch | |
| 20 | 003021070 | Lamp socket with bulb | |
| 21 | 003033550 | Switch symbol | |
| 22 | 003033560 | Switch symbol-green | |
| 23 | 003033530 | Switch symbol-yellow | |
| 24 | 003033540 | Switch symbol-red | |
| 25 | 003033580 | Switch symbol | |
| 26 | 003033570 | Switch symbol | |
| 27 | 200274450 | Air grating | |
| 28 | 270012400 | Blind-lateral | |
| 29 | 200274420 | Plate | |
| 30 | 009104111 | Washer | |
| 31 | 200274490 | Fillister head screw | |
| 32 | 002204400 | Air outlet | |
| 33 | 009068100 | Slotted pan head screw | |
| 34 | 200274380 | Round nozzle | |
| 35 | 200274440 | Filter mat | |
| 36 | 200274470 | Quarter-turn lock | |
| 37 | 200274460 | Grommet | |
| 38 | 200263420 | Cover | |
| 39 | 002204420 | In-cab mirrow | |
| 40 | 200275410 | Service hatch | |
| 41 | 200800071 | Circuit board-Cab | |
| 42 | 003031980 | Flat fuse | |
| 42 | 003021960 | Flat fuse | |
| 42 | 003032010 | Flat fuse | |
| 42 | 003018560 | Flat fuse | |
| 42 | 003020760 | Flat fuse | |
| 42 | 003021940 | Flat fuse | |
| 42 | 003020740 | Flat fuse | |
| 42 | 003019770 | Flat fuse | |
| 43 | 003029910 | Relay-safety plate assembled | |
| 44 | 003037690 | Time control unit | |
| 45 | 200278280 | Fillister head screw | |
| 46 | 009098170 | Toothwasher | |
| 47 | 200278320 | Oscillation absorber | |
| 48 | 009103250 | Washer |
