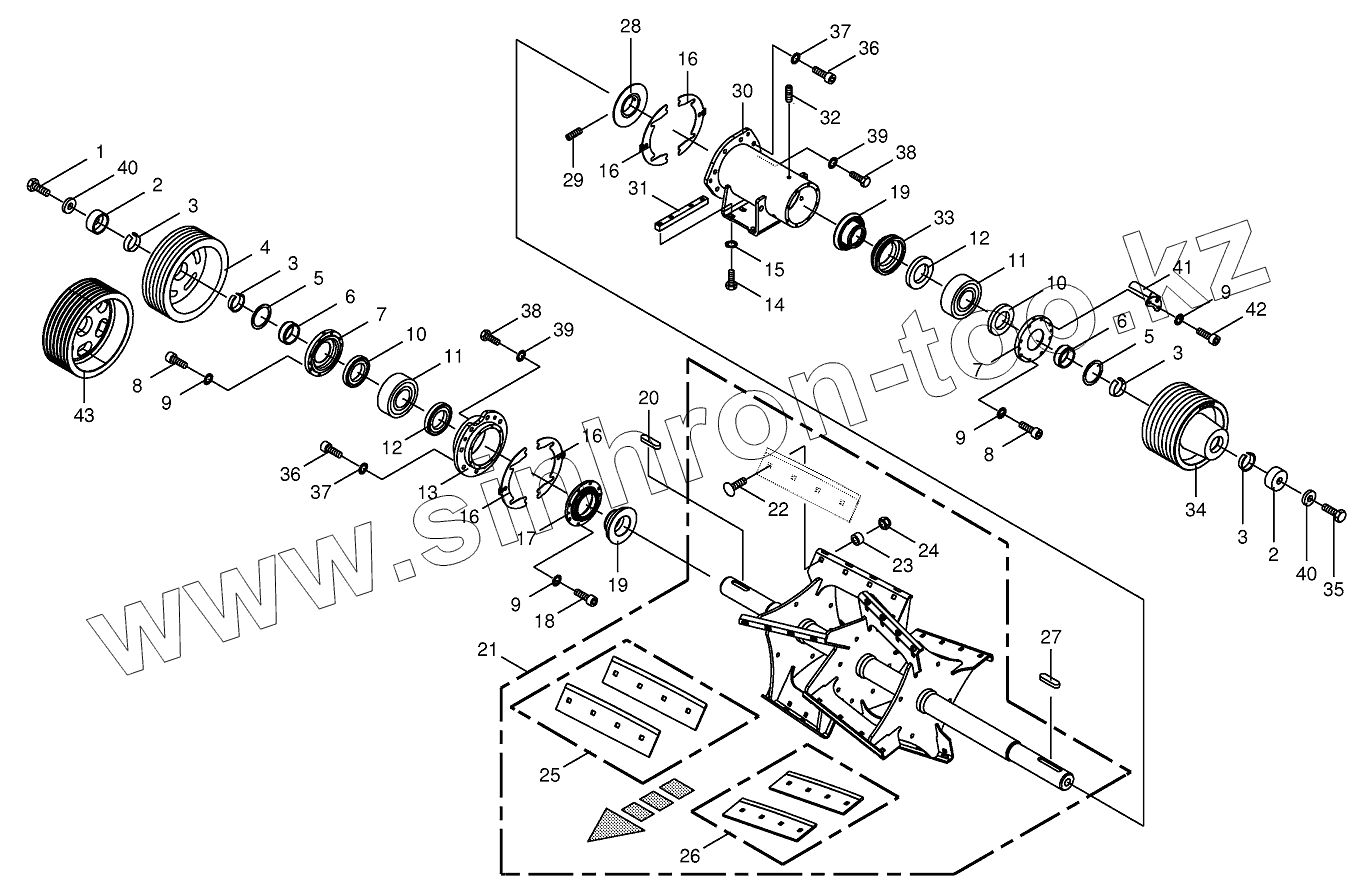

Каталог запасных частей к технике: KRONE BIG-X-700-1. Discharge accelerator/bearing

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
3
3
3
3
4
4
5
5
5
5
6
6
7
7
7
8
8
9
9
9
9
10
10
10
10
11
11
12
12
13
14
15
16
16
16
16
17
18
19
19
20
21
21
22
23
24
25
25
26
26
27
28
29
30
31
32
33
34
35
36
36
36
37
37
38
38
39
39
40
40
41
42
43
Позиция на иллюстрации Заводской номер детали Название детали
1 009003520 Hex head bolt-left-hand thread
2 200263830 Cap
3 200245331 Lock collar
4 200245350 Pulley
4 200215670 Pulley-disc corn conditioner
5 009110051 Shim ring
5 009110040 Shim ring
6 200248031 Raceway outside Rd 80 x 27.5
7 200248020 Cover
7 202220450 Cover Rd 160
8 009030771 Allen screw
9 009099030 Detent edged washer
10 009360660 Radial-shaft sealing ring
10 900000630 Radial-shaft sealing ring
11 900001930 Pendular roller bearing
12 009364472 Radial-shaft sealing ring
13 200260170 Bearing housing-right
14 009006570 Hex head bolt
15 009099101 Detent edged washer
16 200263880 Enclosure
17 200248000 Cover
18 009030731 Allen screw
19 200247990 Ball race
20 009150040 Fit-in key
21 200263701 Rotor-HD optional
21 200248521 Rotor
22 009047791 Coach bolt
23 002276802 Bushing
24 009087010 Locknut
25 200258600 Elevator paddle-right, by pairs
25 200231951 Elevator paddle-right, by pairs
26 200258590 Elevator paddle-left, by pairs
26 200231961 Elevator paddle-left, by pairs
27 009150180 Fit-in key
28 200263870 Ring
29 009059331 Threaded pin
30 200260120 Bearing housing-left
31 002141140 Thread block
32 009057671 Threaded pin
33 200248010 Receiver ring
34 200248041 Pulley
35 009021080 Hex head bolt
36 009031391 Allen screw
36 009031412 Allen screw
37 009099110 Detent edged washer
38 009006170 Hex head bolt
39 009099081 Detent edged washer
40 009106250 Washer
41 202222770 Scraper
42 009030781 Allen screw
43 0010 not for this machine
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
