Каталог запасных частей к технике: KRONE BIG-X-700. Panelling frame/Cladding-back top
1
2
2
2
2
2
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
6
6
7
7
7
8
8
8
8
9
9
9
9
10
10
10
11
11
11
12
13
14
15
15
16
17
18
19
20
20
21
21
22
23
24
24
24
24
25
25
26
27
28
29
30
31
32
33
34
35
36
37
38
38
39
40
41
41
42
43
44
45

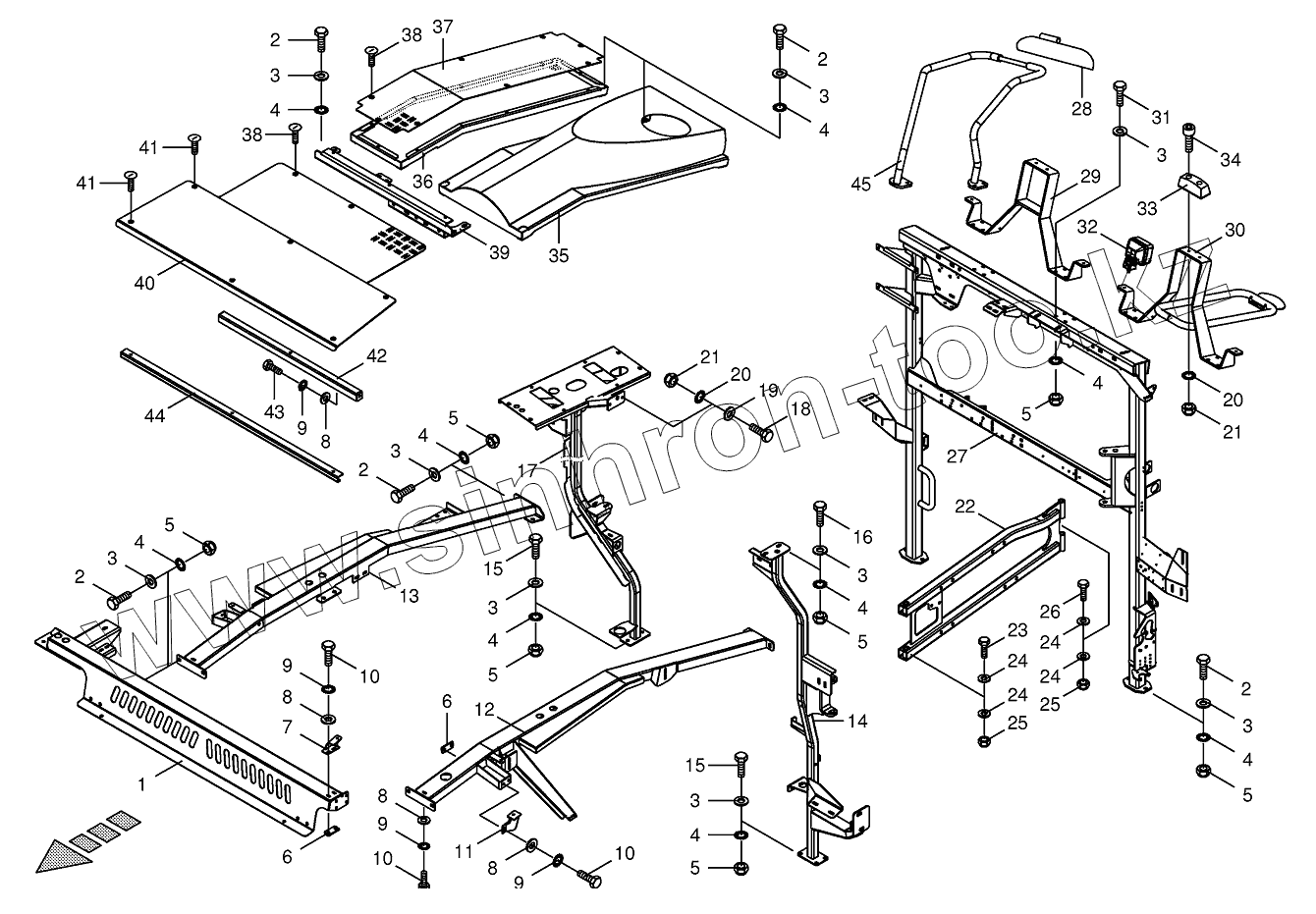

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 009246880 | 009246880 | Bulb | |
| 1 | 200235400 | Cross arm-front | |
| 2 | 009006560 | Hex head bolt | |
| 3 | 009105061 | Washer | |
| 4 | 009099101 | Detent edged washer | |
| 5 | 009087010 | Locknut | |
| 6 | 002132870 | Carrier plate | |
| 7 | 002285660 | Cladding retainer-left | |
| 7 | 002285620 | Cladding retainer-right | |
| 8 | 009106030 | Washer | |
| 9 | 009099081 | Detent edged washer | |
| 10 | 009006170 | Hex head bolt | |
| 11 | 002264741 | Cladding retainer-left | |
| 11 | 002264871 | Cladding retainer-right | |
| 12 | 200264650 | Top brace-left | |
| 13 | 200264630 | Top brace-right | |
| 14 | 200264810 | Support-left middle | |
| 15 | 009006580 | Hex head bolt | |
| 16 | 009006570 | Hex head bolt | |
| 17 | 200265200 | Support-right middle | |
| 18 | 009006370 | Hex head bolt | |
| 19 | 009104140 | Washer | |
| 20 | 009099091 | Detent edged washer | |
| 21 | 009087580 | Locknut | |
| 22 | 200264740 | Hydraulic tank panel | |
| 23 | 009011411 | Hex head bolt | |
| 24 | 009103031 | Washer | |
| 25 | 009087190 | Locknut | |
| 26 | 900014320 | Hex head bolt | |
| 27 | 200265321 | Rear support | |
| 28 | 009385040 | Rear view mirror | |
| 29 | 200253061 | Emission uptake-Mirror | |
| 30 | 200252971 | Emission uptake-Camera | |
| 31 | 009014510 | Hex head bolt | |
| 32 | 009246350 | Work light | |
| 33 | 270042670 | Rubber pad | |
| 34 | 009031061 | Allen screw | |
| 35 | 200252621 | Silencer guard | |
| 36 | 200264690 | Supporting frame | |
| 37 | 200264660 | Chequered plate-back | |
| 38 | 009052301 | Coach bolt | |
| 39 | 200264880 | Longitudinal strut | |
| 40 | 200252820 | Cover plate | |
| 41 | 009052512 | Coach bolt | |
| 42 | 200264610 | Contrefiche intermdiaire | |
| 43 | 009006360 | Hex head bolt | |
| 44 | 200264600 | Top brace-front | |
| 45 | 200269470 | Mirror support |
