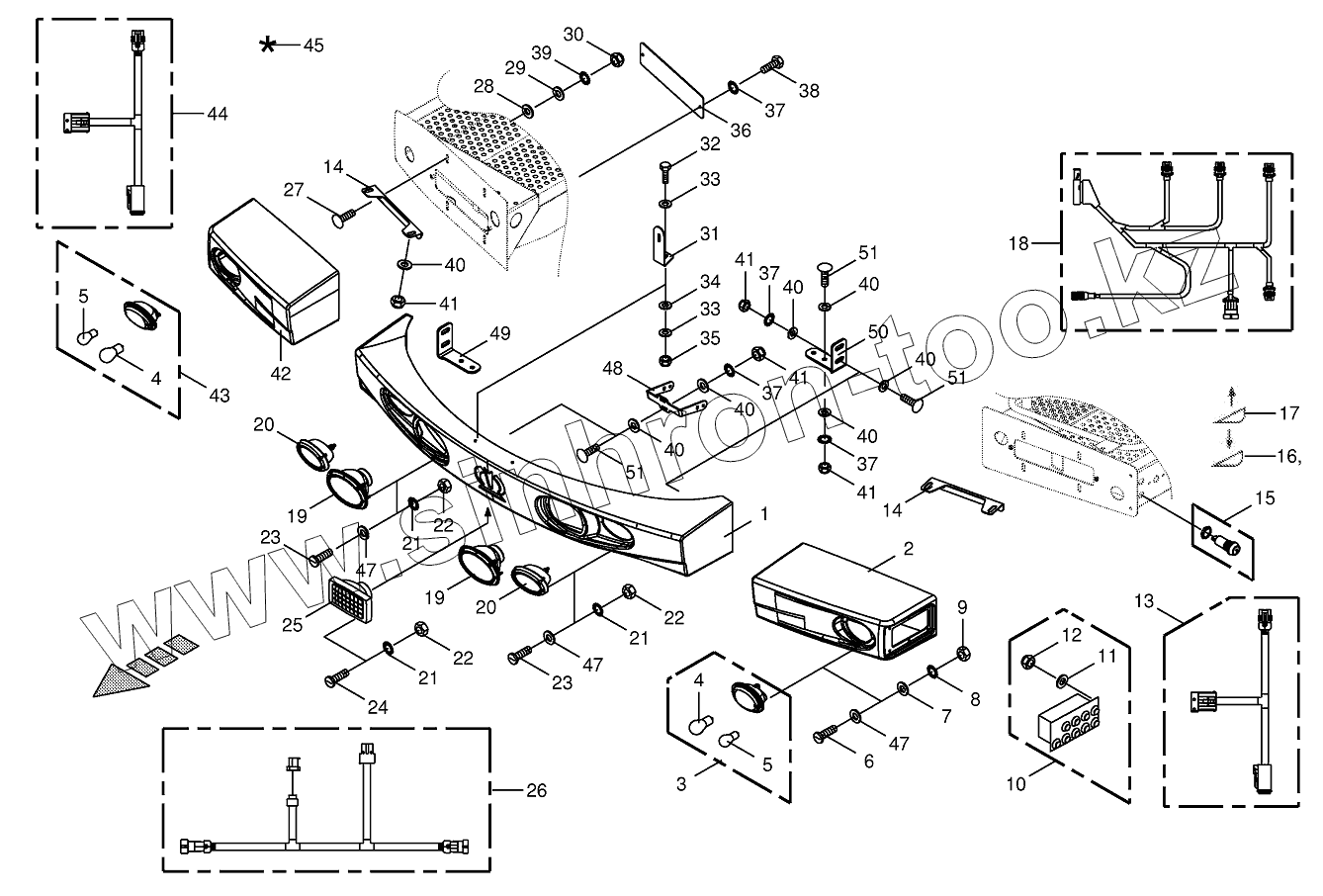

Каталог запасных частей к технике: KRONE BIG-X-700. Front panel/Headlight

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
4
5
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
19
20
20
21
21
21
22
22
22
23
23
23
23
24
25
26
27
28
29
30
31
32
33
33
34
35
36
37
37
37
37
38
39
40
40
40
40
40
40
40
41
41
41
41
42
43
44
45
47
47
47
48
49
50
51
51
51
Позиция на иллюстрации Заводской номер детали Название детали
009246880 009246880 Bulb
009246880 009246880 Bulb
009247140 009247140 Bulb
1 200264041 Front guard-middle
2 200264031 Front guard-left
3 270058860 Flashing light with side light-left
4 009246930 Singel filament buld
5 009246920 Singel filament buld
6 900013890 Allen screw
7 009105001 Washer
8 009100310 Spring washer
9 009082071 Hex nut
10 200803020 Hand operation
11 009103650 Washer
12 009087020 Locknut
13 200811380 Wiring harness-left
14 200265840 Carrier
15 003027230 Feeler-yellow
16 003034180 Tag-lower lifting gear
17 003034170 Tag-lift lifting gear
18 003050381 Wiring harness-hand operation
19 270058900 Headlight
20 270058890 Work light
21 009100010 Spring washer
22 009080061 Hex nut
23 900013870 Allen screw
23 900013880 Allen screw
24 009034271 Allen screw
25 009247500 Work light
26 200811401 Wiring harness-middle
27 009048501 Coach bolt
28 009105102 Washer
29 009103530 Washer
30 009087580 Locknut
31 200266670 Registration plate retainer
32 009002391 Hex head bolt
33 009103511 Washer
34 009402870 Washer
35 009087041 Locknut
36 002279132 Cover
37 009099081 Detent edged washer
38 009006140 Hex head bolt
39 009099091 Detent edged washer
40 009106030 Washer
41 009087060 Locknut
42 200264020 Front guard-right
43 270058880 Flashing light with side light-right
44 200811390 Wiring harness-right
45 009403750 Repairing set for plastics- beige
47 900014090 Washer
48 200271630 Front guard support-middle
49 200271610 Front guard support-right
50 200271640 Front guard support-left
51 009047322 Coach bolt
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
