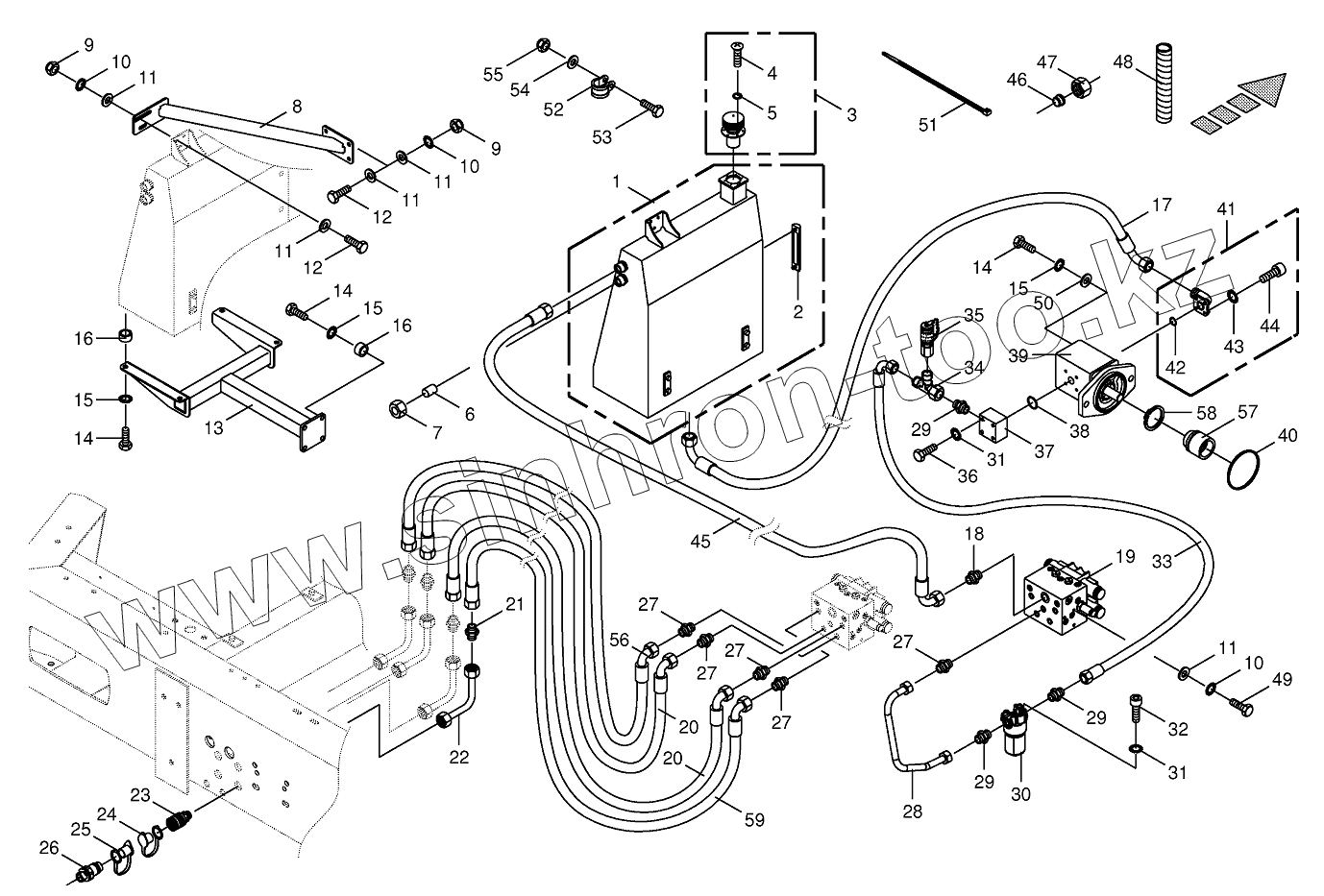

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 270104840 | 270104840 | Gasket ring | |
| 900012790 | 900012790 | O-ring | |
| 009197310 | 009197310 | Filter element | |
| 270040280 | 270040280 | Contamination indicator | |
| 1 | 200230350 | Additional oil tank | |
| 2 | 009400291 | Oil level indicator | |
| 3 | 002191690 | Filler neck | |
| 4 | 009047690 | Fillister head screw | |
| 5 | 009370000 | O-ring | |
| 6 | 009193010 | Locking cone w. O-ring | |
| 7 | 009208050 | Nozzle disc cap | |
| 8 | 200235970 | Strut | |
| 9 | 009087580 | Locknut | |
| 10 | 009099091 | Detent edged washer | |
| 11 | 009104140 | Washer | |
| 12 | 009006360 | Hex head bolt | |
| 13 | 200235700 | Support | |
| 14 | 009006560 | Hex head bolt | |
| 15 | 009099101 | Detent edged washer | |
| 16 | 002223132 | Bushing | |
| 17 | 270041511 | High pressure hose line | |
| 18 | 009196571 | Male connector | |
| 19 | 270002640 | Diverter valve bloc | |
| 20 | 270011570 | High pressure hose line | |
| 21 | 009211700 | Connector | |
| 22 | 200211870 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 23 | 270002660 | Sleeve | |
| 24 | 270004530 | Dust cap-red | |
| 25 | 270004540 | Dust cap-red | |
| 26 | 270002650 | Connector plug | |
| 27 | 009211792 | Male connector | |
| 28 | 200262560 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 29 | 009211741 | Male connector | |
| 30 | 270040260 | High pressure filter -cpl. | |
| 31 | 009099081 | Detent edged washer | |
| 32 | 009030771 | Allen screw | |
| 33 | 009201160 | High pressure hose line | |
| 34 | 009212380 | Adjustable L connection | |
| 35 | 009196960 | Connector f.mini-test equipm. | |
| 36 | 009010461 | Hex head bolt | |
| 37 | 002286601 | Connecting flange | |
| 38 | 009375050 | O-ring | |
| 39 | 270020040 | Pump | |
| 40 | 009376111 | O-ring | |
| 41 | 009197580 | Flange connection | |
| 42 | 270009880 | O-ring | |
| 43 | 009099030 | Detent edged washer | |
| 44 | 009030771 | Allen screw | |
| 44 | 009030840 | Allen screw | |
| 45 | 009201250 | High pressure hose line | |
| 46 | 009211831 | Cutting ring | |
| 47 | 009211820 | Nozzle disc cap | |
| 48 | 009404780 | Spiral strip-Id.-no.= 1m | |
| 49 | 009006340 | Hex head bolt | |
| 50 | 009105061 | Washer | |
| 51 | 009226711 | Cable band | |
| 52 | 009240550 | Tube clip w. rubber | |
| 53 | 009006170 | Hex head bolt | |
| 54 | 009104130 | Washer | |
| 55 | 009087060 | Locknut | |
| 56 | 009200870 | High pressure hose line | |
| 57 | 200269360 | Adapter | |
| 58 | 009115100 | Circlip | |
| 59 | 009198670 | High pressure hose line |
