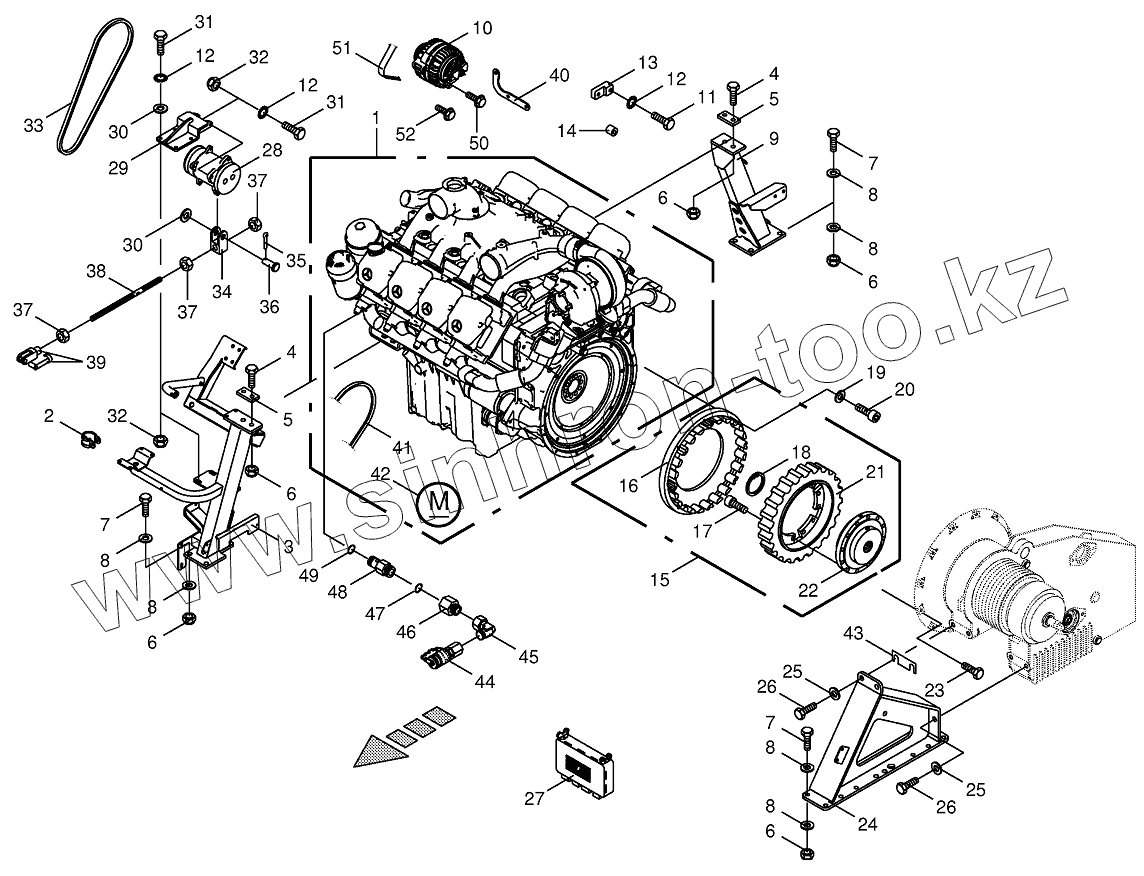

Каталог запасных частей к технике: KRONE BIG-X-650. Diesel engine/Clutch/Air conditioner drive
1
2
2
3
4
4
4
5
5
6
6
6
6
6
7
7
7
8
8
8
8
8
8
9
10
11
12
12
12
13
14
15
16
17
18
19
20
21
22
23
23
24
25
25
26
26
28
29
30
30
31
31
32
32
33
34
35
36
37
37
37
38
39
40
41
42
43
43
43
44
45
46
47
48
49
50
50
51
52
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 009402900 | 009402900 | Oil filter cartridge | |
| 002206930 | 002206930 | Gasket | |
| 009402890 | 009402890 | Fuel-main filter cartridge | |
| 1 | 002132000 | Diesel engine-OM 502 LA | |
| 2 | 009240241 | Tube clip w. rubber | |
| 2 | 009240610 | Tube clip w. rubber | |
| 3 | 002167484 | Engine support-right front | |
| 4 | 009006770 | Hex head bolt | |
| 4 | 009006780 | Hex head bolt | |
| 5 | 002217770 | Plate | |
| 6 | 009082200 | Hex nut | |
| 7 | 009006780 | Hex head bolt | |
| 8 | 009103620 | Washer | |
| 9 | 200234180 | Engine support-back right | |
| 10 | 200800230 | Alternator | |
| 11 | 009016223 | Hex head bolt | |
| 12 | 009099091 | Detent edged washer | |
| 13 | 270006580 | Support | |
| 14 | 002401872 | Spacer bushing | |
| 15 | 009401790 | Clutch-cpl. | |
| 16 | 009403630 | Flange | |
| 17 | 009032103 | Allen screw | |
| 18 | 009110500 | Circlip | |
| 19 | 009107120 | Supporting disc | |
| 20 | 009031011 | Allen screw | |
| 21 | 009402190 | Rubber element | |
| 22 | 009403620 | Hub | |
| 23 | 009006390 | Hex head bolt | |
| 23 | 009006380 | Hex head bolt | |
| 24 | 002246705 | Engine support-left front | |
| 25 | 009103300 | Washer | |
| 26 | 009006880 | Hex head bolt | |
| 28 | 009401120 | Compressor for air conditioner | |
| 29 | 002141770 | Compressor retainer | |
| 30 | 009104140 | Washer | |
| 31 | 009006380 | Hex head bolt | |
| 32 | 009087580 | Locknut | |
| 33 | 002282330 | V-belt | |
| 34 | 002150330 | Clevis | |
| 35 | 009120461 | Cotter pin | |
| 36 | 009160320 | Pin with small head | |
| 37 | 009082150 | Hex nut | |
| 38 | 002265381 | Spindle | |
| 39 | 009271110 | Clevis 1 clip ass. | |
| 40 | 200217120 | Holding plate-for compressor | |
| 41 | 009215610 | V-belt | |
| 42 | 009404320 | Starter | |
| 43 | 200232190 | Filler plate | |
| 43 | 200232200 | Filler plate | |
| 43 | 200232210 | Filler plate | |
| 44 | 009208680 | Connector f.mini-test equipm. | |
| 45 | 009210671 | Angle lug | |
| 46 | 002763371 | Ahrottle housing-for onesided throttle | |
| 47 | 009377270 | Gasket ring | |
| 48 | 270024710 | Test port | |
| 49 | 009377220 | Gasket ring | |
| 50 | 270032340 | Screw | |
| 50 | 270032330 | Screw | |
| 51 | 270031100 | V-belt | |
| 52 | 270033990 | Screw |
