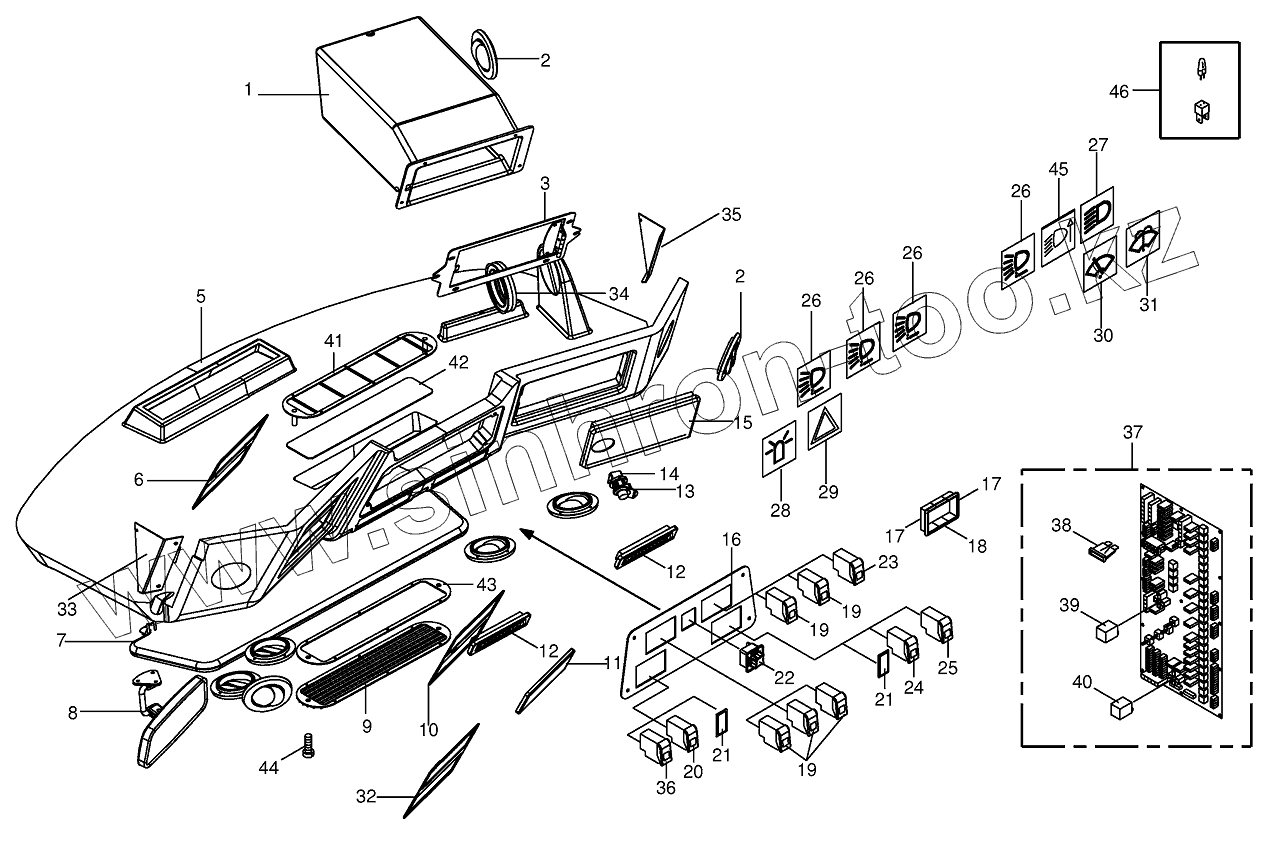

Каталог запасных частей к технике: KRONE BIG-X-650. Cab-control panel (roof)/circuit board

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
3
5
6
7
8
9
10
11
12
12
13
14
15
16
17
17
18
19
19
19
20
21
21
22
23
24
25
26
26
26
26
27
28
29
30
31
32
33
34
35
36
37
38
38
38
38
38
38
38
38
39
40
41
42
43
44
45
46
Позиция на иллюстрации Заводской номер детали Название детали
1 002204430 Cooler
2 002204400 Air outlet
3 002205190 Frame for cooler
5 002204340 Roof console
6 002205170 Frame for radio
7 002204390 Sun visor
8 002204420 In-cab mirrow
9 270008560 Air grating
10 002205180 Frame for radio-outside
11 002204360 Blind cover
12 002205120 Nozzle
13 002204010 Spring lock
14 002204020 Plate spring
15 002204410 Cover for cooler
16 002204350 Switch plate
17 002205140 Mounting batten-end piece
18 002205130 Mounting batten-intermediate piece
19 003025240 Switch-ON- OFF
20 003025250 Switch-warning lights
21 003026530 Cover
22 003025330 Mirror switch
23 003033590 Combi-switch
24 003033600 Combi-switch
25 003028050 Switch
26 003033550 Switch symbol
27 003033560 Switch symbol-green
28 003033530 Switch symbol-yellow
29 003033540 Switch symbol-red
30 003033580 Switch symbol
31 003033570 Switch symbol
32 002204370 Frame for radio cut-out
33 002205830 Baffle-left
34 002205820 Cellofoam-ring
35 002205840 Baffle-right
36 003025260 Switch-ON- OFF
37 200800070 Circuit board-Cab
38 003021940 Flat fuse
38 003021960 Flat fuse
38 003032010 Flat fuse
38 003018560 Flat fuse
38 003020760 Flat fuse
38 003020740 Flat fuse
38 003019770 Flat fuse
38 003031980 Flat fuse
39 003029910 Relay-safety plate assembled
40 003037690 Time control unit
41 270008580 Insertion
42 270008590 Air filter
43 270008570 Baffle
44 270008600 Screw with straight-line curls
45 200807040 Switch symbol-optional
46 003021070 Lamp socket with bulb
