Каталог запасных частей к технике: KRONE BIG-X-650. Additional tank for silage agent system
1
2
2
3
4
5
5
6
7
8
8
8
8
8
9
9
9
9
9
9
9
9
9
9
10
11
12
12
13
13
14
15
16
16
16
16
17
18
19
20
21
22
23
24
25
25
26
26
27
28
29
30
31
32
33
34
35
36
36
36
37
37
37
38
38
39
39
39
39
39
39
39
39
40
40
41
41
41
41
41
41
41
41
42
42
43
43
44
44
45
45
45
45
46
47
47
48
49
49
50
51
52
53
54
55
56
57
58
59
60
61
61
62
62
62
63
63
64
65
66
68

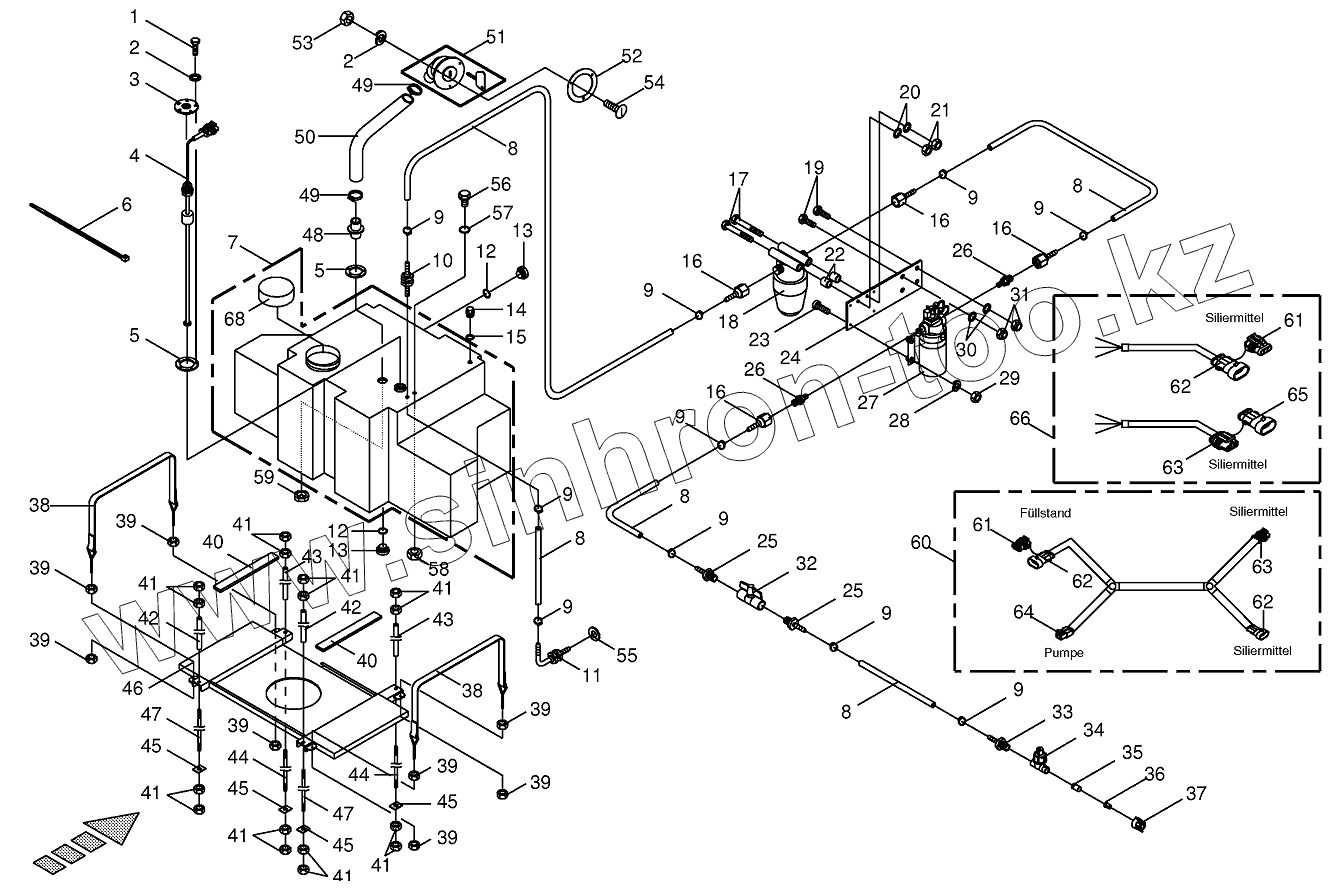

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 009002920 | Hex head bolt | |
| 2 | 009100310 | Spring washer | |
| 3 | 002132370 | Sensor support | |
| 4 | 003050420 | Sensor | |
| 5 | 009400460 | Gasket | |
| 6 | 009226711 | Cable band | |
| 7 | 002141710 | Auxiliary tank | |
| 8 | 009405110 | Pressure hose-red | |
| 9 | 009240011 | Tube clip | |
| 10 | 009405090 | Straight 2-way connector | |
| 11 | 009405190 | Elbow union | |
| 12 | 009538840 | O-ring | |
| 13 | 002147320 | Screw plug | |
| 14 | 009060101 | Screw plug | |
| 15 | 009377270 | Gasket ring | |
| 16 | 009405070 | Connector | |
| 17 | 009010081 | Hex head bolt | |
| 18 | 009405060 | Filter | |
| 19 | 009006580 | Hex head bolt | |
| 20 | 009099081 | Detent edged washer | |
| 21 | 009082100 | Hex nut | |
| 22 | 002147350 | Bushing | |
| 23 | 009036610 | Allen screw | |
| 24 | 002145690 | Retainer | |
| 25 | 009405220 | Connector | |
| 26 | 009405050 | Double nipple | |
| 27 | 003039840 | Silage agent pump | |
| 28 | 009100310 | Spring washer | |
| 29 | 009082071 | Hex nut | |
| 30 | 009099101 | Detent edged washer | |
| 31 | 009087010 | Locknut | |
| 32 | 009405210 | Ball cock | |
| 33 | 009405250 | Connector | |
| 34 | 009405140 | Threaded nozzle support | |
| 35 | 009405200 | Filter cartridge | |
| 36 | 009405120 | Flat stream nozzle-orange | |
| 36 | 009405170 | Flat stream nozzle-blue | |
| 36 | 009405150 | Flat stream nozzle-red | |
| 37 | 009405130 | Bayonet cap-orange | |
| 37 | 009405180 | Bayonet cap-blue | |
| 37 | 009405160 | Bayonet cap-red | |
| 38 | 002145700 | Tension band | |
| 39 | 009082100 | Hex nut | |
| 40 | 002141460 | Rubber coat-below | |
| 41 | 009082200 | Hex nut | |
| 42 | 002147290 | Spacer tube-back | |
| 43 | 002147300 | Spacer tube-front | |
| 44 | 002141490 | Threaded spindle-front | |
| 45 | 002253440 | Pressure plate | |
| 46 | 002145800 | Subsurface | |
| 47 | 002141390 | Threaded spindle-back | |
| 48 | 200216820 | Connection | |
| 49 | 009240020 | Tube clip | |
| 50 | 200216840 | Hose | |
| 51 | 270000040 | Filler neck | |
| 52 | 200201920 | Tank lug support | |
| 53 | 009082071 | Hex nut | |
| 54 | 009037450 | Allen screw | |
| 55 | 009105122 | Washer | |
| 56 | 002158050 | Drain bolt | |
| 57 | 009376370 | O-ring | |
| 58 | 009085242 | Hex nut-low form | |
| 59 | 200216830 | Nut | |
| 60 | 200800461 | Wiring harness | |
| 61 | 003029670 | Blind bushing plug-3-pole | |
| 62 | 003023550 | Coupling socket-3-pole | |
| 63 | 003023520 | Plug-3-pole | |
| 64 | 003033160 | Plug-2-pole | |
| 65 | 003033790 | Blind-pin casing-3-pole | |
| 66 | 003035581 | Wiring harness | |
| 68 | 270022060 | Tank cap |
