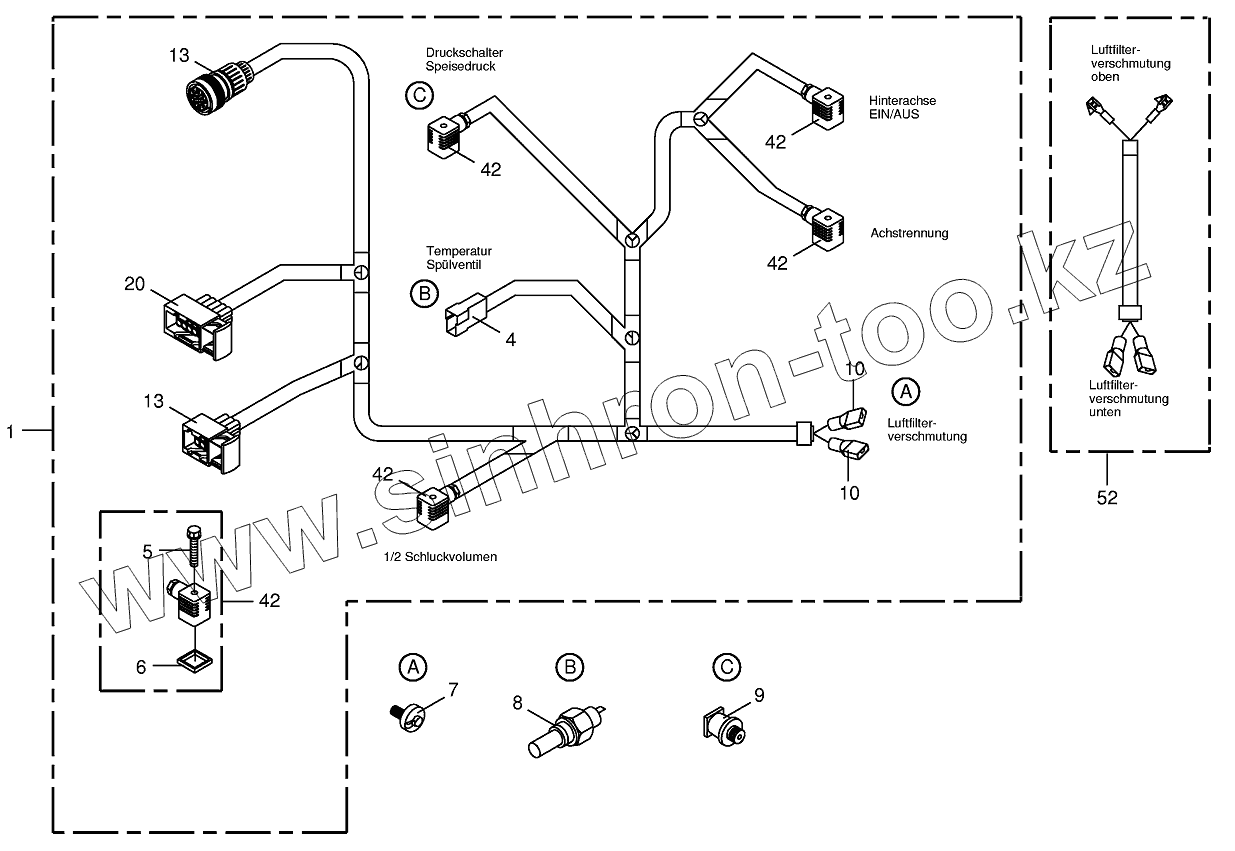

Каталог запасных частей к технике: KRONE BIG-X-650. Wiring loom SD1,sensors,senders
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
AGCO
Amity
CASE IH
DongFeng
Fortschritt
Foton
Franz Kleine
Gaspardo
Great Plains
KRONE
KUHN
Lemken
Lovol
MacDon
Massey Ferguson
New Holland
TIGARBO
Vaderstad
Versatile
Wirax
Агро
Агротехмаш
Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш»)
БЭМЗ
ВгТЗ
Воронежсельмаш
ВТЗ
Гомсельмаш
ДКЗ
ЗАО "Техника-сервис"
ЗиД
КЗК
Кировец-Ландтехник
Клевер
Красная Звезда
Лидагропроммаш
Лидсельмаш
ЛТЗ
Машстройхолдинг
Минитракторы
Мордовагромаш
МТЗ
Навигатор-Новое машиностроение
Нефтекамский автозавод
ПТЗ
Ремком
РСМ
Сибсельмаш
ТеКЗ
ТКЗ
ХЗТСШ
ХТЗ
ЮМЗ
Модель
Не выбрано
280CV-Q, 320CV-Q, 280CRI-Q (2013)
280CV-Q, 320CV-Q, 280CRI-Q (2013)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
AFL243RS (2013)
AM 203CV, AM 243CV, AM 283CV (2018)
AM 203CV, AM 243CV, AM 283CV (2018)
AM 203CV, AM243CV, AM283CV (2018)
AM 203CV, AM243CV, AM283CV (2018)
AM 243 (2018)
AM 243CV (2018)
AM 243CV (2018)
AM 243CV, AM283CV (2018)
AM 283 (2018)
AM 283CV (2018)
BiG X 500 (2018)
BiG X V8, BiG X V12 (2018)
BIG-M-400 (2016)
BIG-M-420 (2016)
BIG-M-420 (2016)
BIG-M-I (2016)
BIG-M-I (2016)
BIG-M-I (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-X-1000 (2016)
BIG-X-1000 (2016)
BIG-X-1100 (2016)
BIG-X-480 (2016)
BIG-X-480 (2017)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-530 (2016)
BIG-X-530 (2017)
BIG-X-580 (2016)
BIG-X-580 (2017)
BIG-X-600 (2016)
BIG-X-600 (2016)
BIG-X-600 (2016)
BIG-X-630 (2016)
BIG-X-630 (2017)
BIG-X-650 (2010)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-700 (2010)
BIG-X-700 (2013)
BIG-X-700 (2013)
BIG-X-700-1 (2013)
BIG-X-700-1 (2013)
BIG-X-700-1 (2016)
BIG-X-700-1 (2016)
BIG-X-700-1 (2016)
BIG-X-800 (2016)
BIG-X-800 (2016)
BIG-X-800/1000 (2013)
BIG-X-850-1 (2018)
BIG-X-850-1/1100-1 (2013)
BIG-X-850-1/1100-1 (2013)
BIG-X-850/1100 (2013)
BIG-X-V8/BIG-X-V12 (2013)
BIG-X-V8/BIG-X-V12 (2013)
BIG-X-V8/BIG-X-V12 (2013)
Easycollect (2018)
EasyCut F360M (2018)
EasyFlow 300, 380 (2012)
EasyFlow 3000, 3800 (2013)
EasyFlow 3000, 3800 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EC 27/32 (2013)
EC 28/32 (2013)
EC 28/32 (2013)
EC 28/32 (2013)
EC 28/32CV (2013)
EC 28/32CV (2013)
EC 28/32CV (2013)
EC 28/32M (2013)
EC 28/32M (2013)
EC 28/32P (2013)
EC 28/32P (2013)
EC 28/32P (2013)
EC 28M (2013)
EC 32CRI (2013)
EC 32CRI (2013)
EC 32CRI (2013)
EC 32CV (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC F280 (2018)
EC F280 / F320 (2013)
EC F280 M (2013)
EC F280/320/360 (2013)
EC F320 (2018)
EC F320 M (2013)
EC F320 M (2013)
EC F320CV (2013)
EC F320M/F360M (2013)
EC F360 (2018)
EC R280 (2013)
EC R320 (2013)
EC R360 (2013)
EC R400 (2018)
EC-9000 (2008)
EC270CV/320CV (2013)
EC280/320 (2013)
EC280/320 (2013)
EC280/320 (2013)
EC280CV-Q/320CV-Q (2013)
EC280CV/320CV (2013)
EC280CV/320CV/280CR (2013)
EC280CV/320CV/C280CRI (2013)
EC28CV/32CV/32CV-F (2013)
EC28CV/C32CV/32CV-F (2013)
EC32CV/32CV-F (2013)
EColl.6000,7500,6000FP (2013)
EColl.6000,7500,9000,6000F (2013)
EColl.6000,7500,9000,6000F/FP (2013)
EColl.6000,7500,9000,6000F/FP (2013)
EColl.6000-7500-9000-6000CL/JD (2013)
ECollect 753, 903, 1053 (2013)
ECollect753, 903, 1053 (2013)
ECollect753, 903, 1053 (2013)
ECR280CV/320CV (2012)
KW 8.50-8 (2018)
KWT 7.70-6X7, KWT 8.50-8, KWT 10.50-8X7 (2018)
X-Disc 6200 (2013)
X-Disc 6200 (2013)
Схема
>
Не выбрано
Feeder
Feeder Housing with support foot
Grain collecting plate/slotted cover
Lower feed rollers
Lower feed roller bearing
Тoр feed rollers
Тoр feed roller bearing
Cover-Feeder Housing
Auxiliary gearbox/Drive
Roller gearbox part 1
Roller gearbox part 2
Тoр roller gearbox
Oscillating levers/Тension spring
Р.Т.О shafts
Pivoting frame/linkage
Lateral flotation system
Lateral flotation system/Locking mech.
Angle sensor-Pivoting frame
Chopping aggregate-cpl.
Chopping drum support
Chopping drum
Chopping drum bearing/counter bearing
Tensioning device-main drive
Belt guide-main drive
Angle sensor-chopping drum
Shear bar adjustment
Mounting part sharpening device
Chain carriage-sharpening device
Sharpening
Sharpening device drive
Cover plate-sharpening device
Transfer channel
Grass channel/cracker duct
Grain conditioner cpl.
Cracker housing
Roller basin
Roller front
Roller back
Adjustment mandril
E-motor and
Pulley for changing directions
Cracker drive/tensioning device
Rope winch/lnstallation car
Discharge accelerator rear panel
Discharge accelerator/bearing
Discharge accelerator housinge
Auger-gearbox
Duct nozzle
Mounting parts discharge chute rotation
Upper discharge chute with wear plates
Upper discharge chute "short" with wear plates
Discharge flap-end piece
Discharge chute extension 10-row
Discharge chute extension 12-row
Upper discharge chute-mounting parts
Camera surveillance/Rear view mirror
Сab-mounting parts/electric parts
Сab-control panel (roof)/circuit board
Сab-glazlng
Glass wiper
Steering columm
Wear parts-driver's seat
Сab-Sound deadening
lnnenverkleidung,Antenne Сab
Rear lind
Control Ьoх
Control switsches
Frame/trailer hitch/ascending ladder
Tank protection
СaЬ access left/platform right
Tool boх-pivoting
Panelling frame/Cladding-front top
Dividing wall
Panelling frame/Cladding-back top
Battery Ьох
Mudguard
Warning panel
Front panel/Headlight
Cladding-lateral
Cladding-back
Tyres
Steering axle rocker arm
Steering sensor
Hydraulic parking brake
Steering axle
Varia le disqlacement
Hydraulic tank/suction lines
Housing line I oil cooler
Traction drive pump
Traction drive wheel engine
Oil leckage pipes/return lines-front
Hydraulics-speed range shifting
Oil leckage pipes/return lines-back
Charge pressure lines-front
Charge pressure lines-back
Hydraulics-front attachment/feed rollers
Hydraulics-sieve drive
Valve lock with support-work hydraulics
Hydraulic steering system
Hydraulic brakes
Hydraulics-pump 3 times/storage chorging valve
Hydraulics-lift
Hydraulics-lift 12/14 row
Hydraulics cpl.-discharge chute
Hydraulics-front attachment
Hydraulics-sharpening device/transv. ground following
Lines main clutch
Hydraulics-additive connection back
Additive connection for trailer
Gear molasses pump
Diesel fuel tank
Diesel fuel pipe
Auxiliary tank
Additional tank for silage agent system
Diesel engine/Clutch/Air conditioner drive
Silencer
Motor output gear
Fan gearbox
Ventilator wheel/Drive
Radiator frame/radiator door
Condenser for air conditioner-cpl.
Air cleaning equipment
Rotor/Air conditioner mounting
Sieve drum
Suction fan
Suction system drive
Air pressure-Blow-out gun
Air conditioning
Wiring harness fastening
Secondary distributor (SD1,SD2,SD3)
Wiring loom conn. SD1,SD2,SDЗ,hydr.
Wiring loom SD1,sensors,senders
Wiring harness-control boх
Wiring loom-cab
Wiring loom conn. chopping drum 502,503
Wiring Harness-chopping aggregate
Wiring Harness-valve lock
Wiring loom-hydraulic pumps
Wiring Harness-lighting
Сable loom-Auxiliary valve
Backlash-alarm impeller fan
CAN-printer
Several wiring looms
Several wiring looms
Several wiring looms
Battery and ground сale
Lighting / returning horn-back
Fire extinguisher
Central lubrication
Spare parts case for central lubrication-Vogel
Р.Т.О shafts-roller drive
P.Т.О shafts-drive-Pick-up
Р.Т.О shafts-roller gear-below
Warning signs
General information labels
Label-Electric part
1
4
5
6
7
8
9
10
10
13
13
20
42
42
42
42
42
52
Позиция на иллюстрации
Заводской номер детали
Название детали
1
003031536
Wiring harness-sensors/ actuators
4
003050600
Plug-2-pole
5
003021820
Screw with straight-line curls
6
003011860
Gasket
7
002210710
Grooming switch
8
003034500
Temperature switch
9
003021891
Pressure switch
10
003026880
Flat sleeve-red
13
003024310
Plug-31-pole
20
003030730
Bushing housing-10-pole
21
003030820
Bushing housing-6-pole
42
003034120
Valve plug-black , low mounting form
52
003034271
Wiring harness-air filter 2
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
