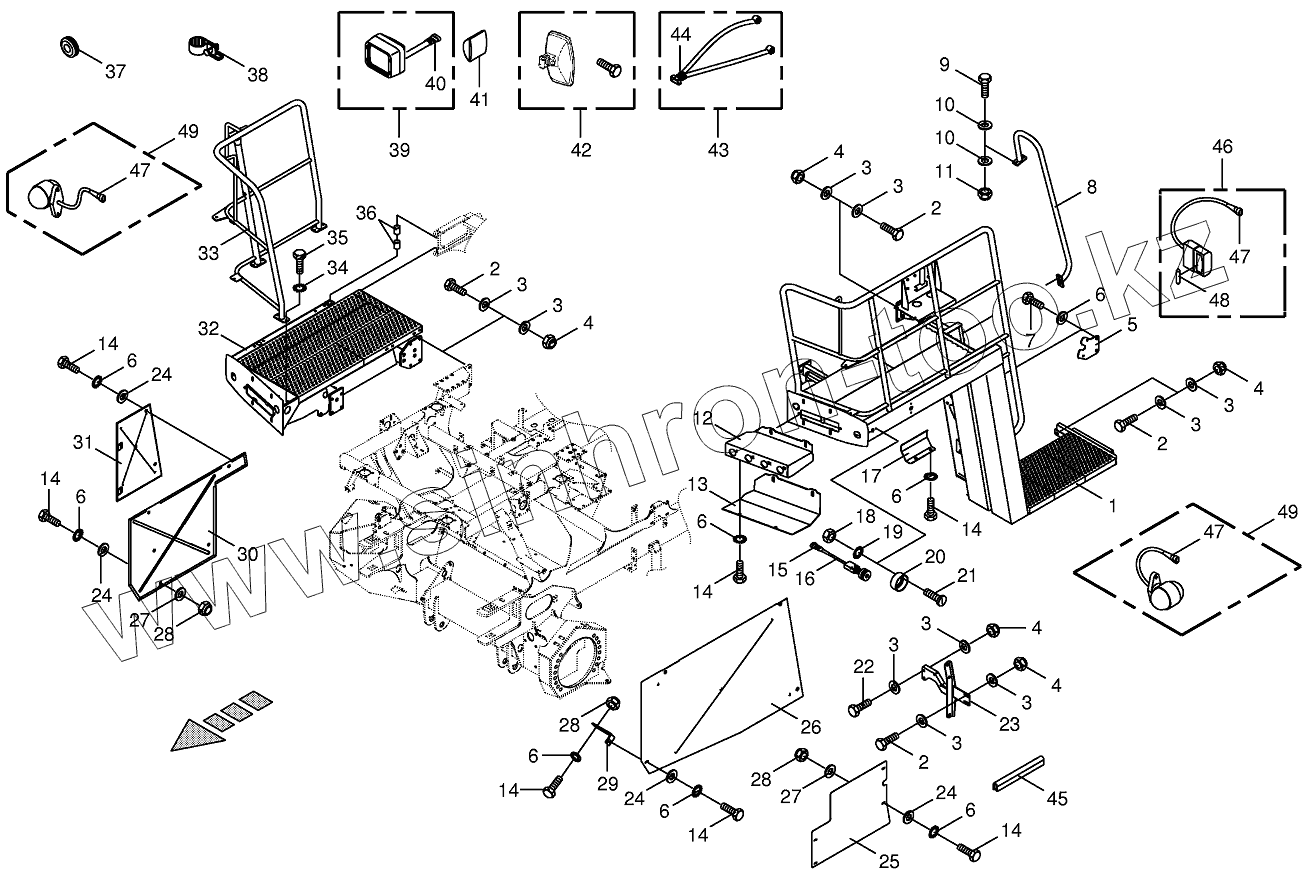

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 002254417 | Ascendency-left | |
| 2 | 009014510 | Hex head bolt | |
| 3 | 009103200 | Washer | |
| 4 | 009087010 | Locknut | |
| 5 | 002177370 | Lamp support-left | |
| 6 | 009099081 | Detent edged washer | |
| 7 | 009006120 | Hex head bolt | |
| 8 | 002254493 | Handrail-left | |
| 9 | 009006370 | Hex head bolt | |
| 10 | 009104140 | Washer | |
| 11 | 009087580 | Locknut | |
| 12 | 003601560 | Support | |
| 13 | 003601681 | Splash guard | |
| 14 | 009006140 | Hex head bolt | |
| 15 | 003023550 | Coupling socket-3-pole | |
| 16 | 003032482 | Instantanequs cut-out switch | |
| 17 | 002199140 | Switch protection | |
| 18 | 009082080 | Hex nut | |
| 19 | 009099061 | Detent edged washer | |
| 20 | 002289420 | Switch protection | |
| 21 | 009030451 | Allen screw | |
| 22 | 009006560 | Hex head bolt | |
| 23 | 002249932 | Platform retainer | |
| 24 | 009106040 | Washer | |
| 25 | 002257401 | Guard plate-left | |
| 26 | 002257392 | Guard plate-left | |
| 27 | 009106030 | Washer | |
| 28 | 009087060 | Locknut | |
| 29 | 002257421 | Screwing angle | |
| 30 | 002177922 | Guard plate-right | |
| 31 | 002288231 | Cover-right | |
| 32 | 002155290 | Platform-right | |
| 33 | 002254964 | Handrail-right | |
| 34 | 009099091 | Detent edged washer | |
| 35 | 009006360 | Hex head bolt | |
| 36 | 009353330 | Bearing bush | |
| 37 | 009242340 | Guidance sleeve | |
| 38 | 009240700 | Screwless corrugatend tube | |
| 39 | 003035812 | Work light | |
| 39 | 009247670 | Bulb | |
| 40 | 003023540 | Coupling socket-4-pole | |
| 41 | 003032240 | Blind angle mirror-heated | |
| 42 | 009385040 | Rear view mirror | |
| 42 | 003025360 | Rear view mirror-right, heated | |
| 43 | 003032250 | Саblе-rеаr viеw mirrоr | |
| 44 | 003030840 | Plug-10-pole | |
| 45 | 009251110 | Edge protection-Id.-no.= 1m | |
| 46 | 003032134 | Lighting-left | |
| 47 | 003023560 | Coupling socket-2-pole | |
| 48 | 009247090 | Singel filament buld | |
| 49 | 003032290 | Sidе light | |
| 49 | 200807640 | Pane-white | |
| 49 | 200807650 | Pane-red | |
| 49 | 009247360 | Singel filament buld |
