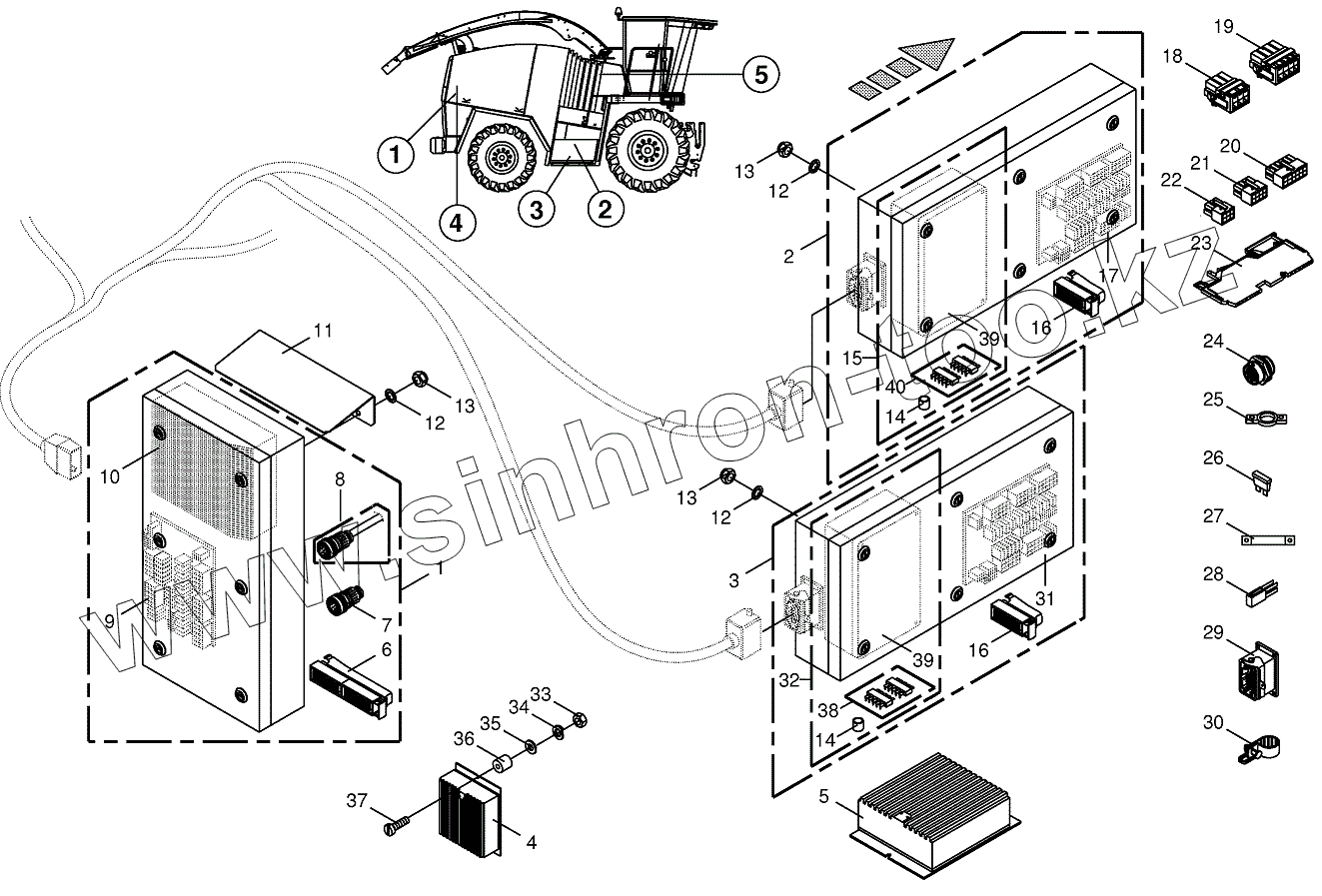

Secondary distributor (SD1,SD2,SD3)
Wir.loom conn. SD1,SD2,SDЗ,hydr. block
Wir.loom conn. SD1,SD2,SDЗ,hydr. block
Wiring loom SD1,sensors,senders
Wiring harness - control boх
Wiring loom - cab
Wiring loom conn. chopping drum 502,503
Wiring Harness - chopping aggregate
Wiring Harness - valve lock
Wiring loom - hydraulic pumps
Wiring Harness - lighting
Wiring harness - auxiliary hydraulics
Backlash-alarm impeller fan
CAN - printer
CropControl
Moisture measurement
Several wiring looms
Several wiring looms
Several wiring looms
Battery and ground сale
Lighting I returning horn - back
Fire extinguisher
Central lubrication
Spare parts case for central lubrication -Vogel
Р.Т.О shafts-roller drive
P.Т.О shafts-drive-Pick-up
Р.Т.О shafts-roller gear-below
Warning signs
General information labels
Label - Electric part
1
1
2
2
3
3
4
4
5
5
6
7
8
9
9
9
10
11
12
12
12
13
13
13
14
14
15
16
16
17
17
17
18
19
20
21
22
23
24
25
26
26
26
27
28
29
30
30
30
30
31
31
31
32
33
34
35
36
37
38
39
39
40
Позиция на иллюстрации
Заводской номер детали
Название детали
1
003031574
Distribution device 1
2
003031585
Distribution device 2
3
200803210
Distribution device 3
4
003034600
Dios exit-module
5
200803090
Automatic pilot-incl. software
6
003026450
Plug-56-pole
7
003026460
Plug-14-pole
8
003038422
Plug-Smartdrive
9
003028482
Circuit board-incl. software
9
003027302
Circuit board
9
003041001
Software
10
003028463
Travel control
11
002168890
Cover plate
12
009099081
Detent edged washer
13
009087060
Locknut
14
003034010
Battery
15
003028609
Job computer
16
003023620
Plug-42-pole
17
003028491
Circuit board-incl. software
17
003027302
Circuit board
17
003041100
Software
18
003028000
Plug-6-pole
19
003028010
Plug-8-pole
20
003027990
Plug-12-pole
21
003027980
Plug-8-pole
22
003027970
Plug-6-pole
23
003033720
Four conductor terminals
24
003024301
Socket-31-pole
25
003035930
Bend protection grommet
26
003020740
Flat fuse
26
003021940
Flat fuse
26
003020760
Flat fuse
27
003034230
Grounding streak
28
003039530
Jumper
29
003030990
Attaching housing-cpl.
30
009240710
Screwless corrugatend tube
30
009240700
Screwless corrugatend tube
30
009240690
Screwless corrugatend tube
30
009240680
Screwless corrugatend tube
31
200803250
Circuit board-incl. software
31
003027302
Circuit board
31
200803240
Software
32
200803261
Job computer
33
009080061
Hex nut
34
009100010
Spring washer
35
009103250
Washer
36
009242020
Rubber pad
37
009034220
Allen screw
38
003038209
Flash with software
39
003034002
Job computer
40
003038108
Flash with software
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
