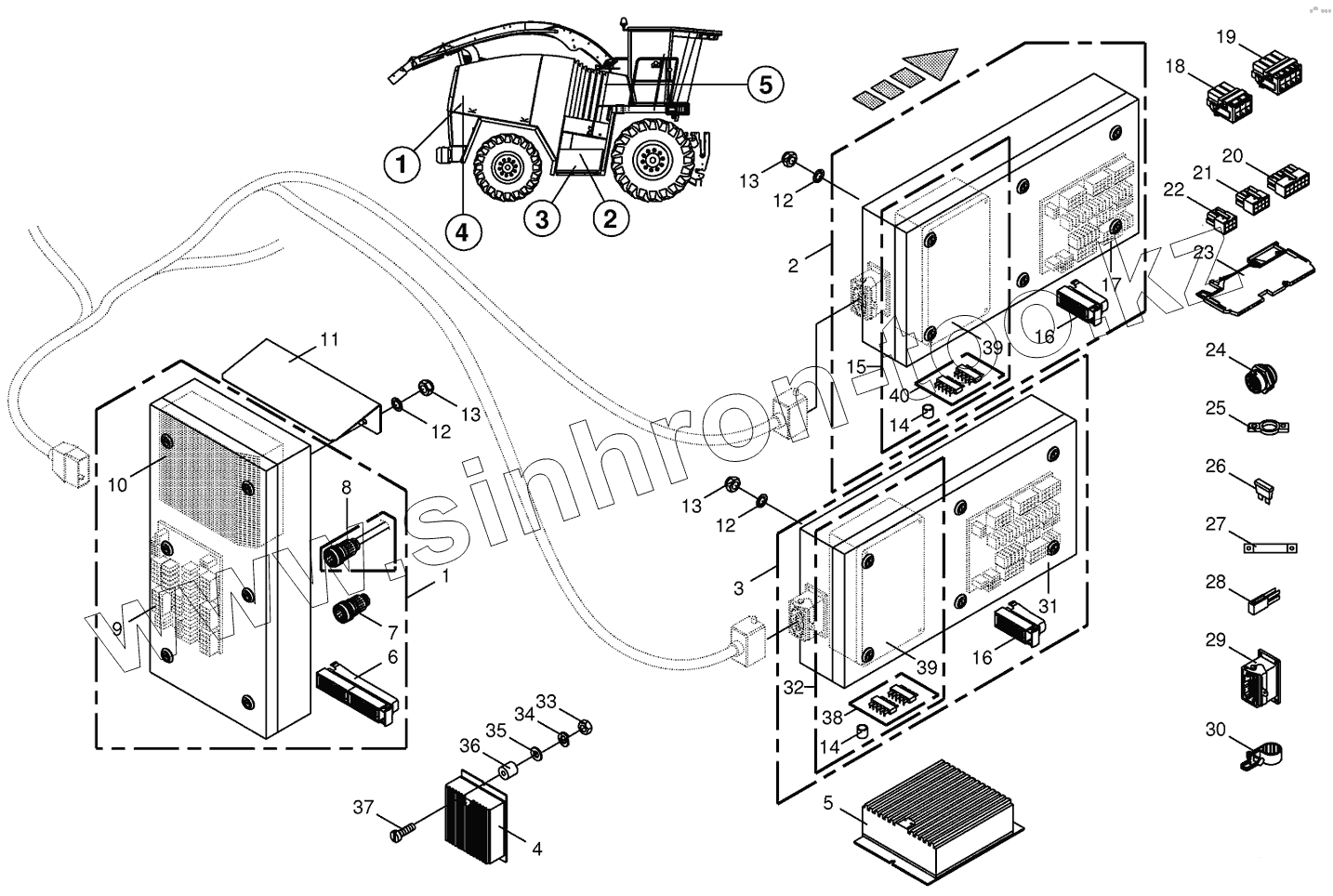

Secondary distributor (SD1,SD2,SD3)
Каталог запасных частей к технике: KRONE BIG-X-650. Secondary distributor (SD1,SD2,SD3)
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
AGCO
Amity
CASE IH
DongFeng
Fortschritt
Foton
Franz Kleine
Gaspardo
Great Plains
KRONE
KUHN
Lemken
Lovol
MacDon
Massey Ferguson
New Holland
TIGARBO
Vaderstad
Versatile
Wirax
Агро
Агротехмаш
Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш»)
БЭМЗ
ВгТЗ
Воронежсельмаш
ВТЗ
Гомсельмаш
ДКЗ
ЗАО "Техника-сервис"
ЗиД
КЗК
Кировец-Ландтехник
Клевер
Красная Звезда
Лидагропроммаш
Лидсельмаш
ЛТЗ
Машстройхолдинг
Минитракторы
Мордовагромаш
МТЗ
Навигатор-Новое машиностроение
Нефтекамский автозавод
ПТЗ
Ремком
РСМ
Сибсельмаш
ТеКЗ
ТКЗ
ХЗТСШ
ХТЗ
ЮМЗ
Модель
Не выбрано
280CV-Q, 320CV-Q, 280CRI-Q (2013)
280CV-Q, 320CV-Q, 280CRI-Q (2013)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
AFL243RS (2013)
AM 203CV, AM 243CV, AM 283CV (2018)
AM 203CV, AM 243CV, AM 283CV (2018)
AM 203CV, AM243CV, AM283CV (2018)
AM 203CV, AM243CV, AM283CV (2018)
AM 243 (2018)
AM 243CV (2018)
AM 243CV (2018)
AM 243CV, AM283CV (2018)
AM 283 (2018)
AM 283CV (2018)
BiG X 500 (2018)
BiG X V8, BiG X V12 (2018)
BIG-M-400 (2016)
BIG-M-420 (2016)
BIG-M-420 (2016)
BIG-M-I (2016)
BIG-M-I (2016)
BIG-M-I (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-X-1000 (2016)
BIG-X-1000 (2016)
BIG-X-1100 (2016)
BIG-X-480 (2016)
BIG-X-480 (2017)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-530 (2016)
BIG-X-530 (2017)
BIG-X-580 (2016)
BIG-X-580 (2017)
BIG-X-600 (2016)
BIG-X-600 (2016)
BIG-X-600 (2016)
BIG-X-630 (2016)
BIG-X-630 (2017)
BIG-X-650 (2010)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-700 (2010)
BIG-X-700 (2013)
BIG-X-700 (2013)
BIG-X-700-1 (2013)
BIG-X-700-1 (2013)
BIG-X-700-1 (2016)
BIG-X-700-1 (2016)
BIG-X-700-1 (2016)
BIG-X-800 (2016)
BIG-X-800 (2016)
BIG-X-800/1000 (2013)
BIG-X-850-1 (2018)
BIG-X-850-1/1100-1 (2013)
BIG-X-850-1/1100-1 (2013)
BIG-X-850/1100 (2013)
BIG-X-V8/BIG-X-V12 (2013)
BIG-X-V8/BIG-X-V12 (2013)
BIG-X-V8/BIG-X-V12 (2013)
Easycollect (2018)
EasyCut F360M (2018)
EasyFlow 300, 380 (2012)
EasyFlow 3000, 3800 (2013)
EasyFlow 3000, 3800 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EC 27/32 (2013)
EC 28/32 (2013)
EC 28/32 (2013)
EC 28/32 (2013)
EC 28/32CV (2013)
EC 28/32CV (2013)
EC 28/32CV (2013)
EC 28/32M (2013)
EC 28/32M (2013)
EC 28/32P (2013)
EC 28/32P (2013)
EC 28/32P (2013)
EC 28M (2013)
EC 32CRI (2013)
EC 32CRI (2013)
EC 32CRI (2013)
EC 32CV (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC F280 (2018)
EC F280 / F320 (2013)
EC F280 M (2013)
EC F280/320/360 (2013)
EC F320 (2018)
EC F320 M (2013)
EC F320 M (2013)
EC F320CV (2013)
EC F320M/F360M (2013)
EC F360 (2018)
EC R280 (2013)
EC R320 (2013)
EC R360 (2013)
EC R400 (2018)
EC-9000 (2008)
EC270CV/320CV (2013)
EC280/320 (2013)
EC280/320 (2013)
EC280/320 (2013)
EC280CV-Q/320CV-Q (2013)
EC280CV/320CV (2013)
EC280CV/320CV/280CR (2013)
EC280CV/320CV/C280CRI (2013)
EC28CV/32CV/32CV-F (2013)
EC28CV/C32CV/32CV-F (2013)
EC32CV/32CV-F (2013)
EColl.6000,7500,6000FP (2013)
EColl.6000,7500,9000,6000F (2013)
EColl.6000,7500,9000,6000F/FP (2013)
EColl.6000,7500,9000,6000F/FP (2013)
EColl.6000-7500-9000-6000CL/JD (2013)
ECollect 753, 903, 1053 (2013)
ECollect753, 903, 1053 (2013)
ECollect753, 903, 1053 (2013)
ECR280CV/320CV (2012)
KW 8.50-8 (2018)
KWT 7.70-6X7, KWT 8.50-8, KWT 10.50-8X7 (2018)
X-Disc 6200 (2013)
X-Disc 6200 (2013)
Схема
>
Не выбрано
Feeder
Feeder Housing with support foot
Grain collecting plate/slotted cover
Lower feed rollers
Lower feed roller bearing
Top feed rollers
Top feed roller bearing
Cover- Feeder Housing
Auxiliary gearbox/Drive
Roller gearbox part 1
Roller gearbox part 2
P.T.O shafts
Top roller gearbox
Oscillating levers/Tension spring
Pivoting frame/linkage
Lateral flotation system
Lateral flotation system/Locking mech
Angle sensor- Pivoting frame
Chopping aggregate-cpl.
Chopping drum support
Chopping drum support- mounting parts
Husk
Chopping drum
Chopping drum bearing/counter bearing
Tensioning device- main drive
Belt guide- main drive
Angle sensor- chopping drum
Shear bar adjustment
Grinding installation frame- mounting parts
Sharpening
Sharpening device drive
Transfer channel
Grass channel
Cracker duct-pivoting
Wearing plates-HD parts
Grain conditioner cpl.
Cracker housing
Roller basin
Roller front
Roller back
Adjustment mandril
E-motor and
Pulley for changing directions
Cracker drive/tensioning device
Rope winch/Installation car
Discharge accelerator- 12 paddle
Discharge accelerator housinge
Auger-gearbox
Duct nozzle
Crop flow-HD parts
Mounting parts discharge chute rotation
Upper discharge chute with wear plates
Upper discharge chute "short" with wear plates
Upper discharge chute-HD parts
Discharge flap-end piece
Discharge chute extension 10-row
Discharge chute extension 12-row
Upper discharge chute- mounting parts
Camera surveillance/Rear view mirror
Cab- mounting parts/electric parts
Cab- control panel (roof)/circuit board
Cab- glazing
Glass wiper
Steering columm
Wear parts- driver's seat
Cab- Sound deadening
Cab- Cab lining, aerial
Rear blind/lateral blind
Control box
Control switsches
Frame/trailer hitch/ascending ladder
Tank protection
Cab access left/platform right
Tool box- pivoting
Panelling frame/Cladding-front top
Panelling frame/Cladding-back top
Battery box
Mudguard
Warning panel
Front panel/Headlight
Cladding-lateral
Cladding-back
Tyres
Steering axle rocker arm
Hydraulic parking brake
Hand pump
Steering axle cpl.
Variable disqlacement pump
Hydraulic tank/suction lines
Housing line/oil cooler
Traction drive pump
Traction drive wheel engine
Oil leckage pipes/return lines- front
Hydraulics- speed range shifting
Oil leckage pipes/return lines- back
Charge pressure lines- front
Charge pressure lines- back
Hydraulics- front attachment/feed rollers
Hydraulics- sieve drive
Valve block with support- work hydraulics
Hydraulic steering system
Hydraulic brakes
Hydraulics- pump 3 times/storage chorging valve
Hydraulics- lift
Hydraulics- lift 12/14 row
Hydraulics cpl.- discharge chute
Hydraulics- front attachment
Hydraulics- sharpening device/transv. ground following
Lines main clutch
Hydraulics- additive connection back
Hydraulics- additive connection back
Additive connection for trailer
Gear molasses pump
Diesel fuel tank
Diesel fuel pipe
Auxiliary tank
Additional tank for silage agent system
Diesel engine/Clutch/Air conditioner drive
Silencer
Motor output gear
Gear oil cooler
Fan gearbox
Ventilator wheel/Drive
Radiator frame/radiator door
Condenser for air conditioner- cpl.
Air cleaning equipment
Rotor/Air conditioner mounting
Sieve drum
Suction fan
Air pressure- Blow-out gun
Air conditioning
Evaporator
Wiring harness fastening
Secondary distributor (SD1,SD2,SD3)
Wir.loom conn. SD1,SD2,SD3,hydr. block
Wiring loom SD1,sensors,senders
Wiring harness- control box
Wiring loom- cab
Wiring loom conn. chopping drum SD2,SD3
Wiring Harness- chopping aggregate
Wiring Harness- valve block
Wiring loom- hydraulic pumps
Wiring Harness- lighting
Wiring harness- auxiliary hydraulics
Backlash-alarm impeller fan
CAN- printer
CropControl
Moisture measurement
Several wiring looms
Several wiring looms
Several wiring looms
Battery and ground cable
Lighting/returning horn- back
Installation car
Fire extinguisher
Central lubrication
Spare parts case for central lubrication-Vogel
P.T.O shafts-roller drive
P.T.O shafts-drive- Pick-up
P.T.O shafts-roller gear-below
Warning signs
General information labels
Label- Electric part
1
1
2
2
3
3
4
4
5
5
6
7
8
9
9
10
11
12
12
12
13
13
13
14
14
15
16
16
17
17
18
19
20
21
22
23
24
25
26
26
26
27
28
29
30
30
30
30
31
31
32
33
34
35
36
37
38
39
39
40
Позиция на иллюстрации
Заводской номер детали
Название детали
200806730
200806730
Housing
200803240
200803240
Software
003041100
003041100
Software
003041001
003041001
Software
003035780
003035780
Housing cover
200806740
200806740
Housing
003035780
003035780
Housing cover
200806740
200806740
Housing
003035780
003035780
Housing cover
1
003031574
Distribution device 1
2
003031585
Distribution device 2
3
200803210
Distribution device 3
4
003034600
Dios exit-module
5
200803090
Automatic pilot-incl. software
6
003026450
Plug-56-pole
7
003026460
Plug-14-pole
8
003038422
Plug-Smartdrive
9
003028482
Circuit board-incl. software
9
003027302
Circuit board
10
003028463
Travel control
11
002168890
Cover plate
12
009099081
Detent edged washer
13
009087060
Locknut
14
003034010
Battery
15
003028609
Job computer
16
003023620
Plug-42-pole
17
003028491
Circuit board-incl. software
17
003027302
Circuit board
18
003028000
Plug-6-pole
19
003028010
Plug-8-pole
20
003027990
Plug-12-pole
21
003027980
Plug-8-pole
22
003027970
Plug-6-pole
23
003033720
Four conductor terminals
24
003024301
Socket-31-pole
25
003035930
Bend protection grommet
26
003020740
Flat fuse
26
003021940
Flat fuse
26
003020760
Flat fuse
27
003034230
Grounding streak
28
003039530
Jumper
29
003030990
Attaching housing-cpl.
30
009240700
Screwless corrugatend tube
30
009240710
Screwless corrugatend tube
30
009240690
Screwless corrugatend tube
30
009240680
Screwless corrugatend tube
31
200803250
Circuit board-incl. software
31
003027302
Circuit board
32
200803261
Job computer
33
009080061
Hex nut
34
009100010
Spring washer
35
009103250
Washer
36
009242020
Rubber pad
37
009034220
Allen screw
38
003038209
Flash with software
39
003034002
Job computer
40
003038108
Flash with software
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
