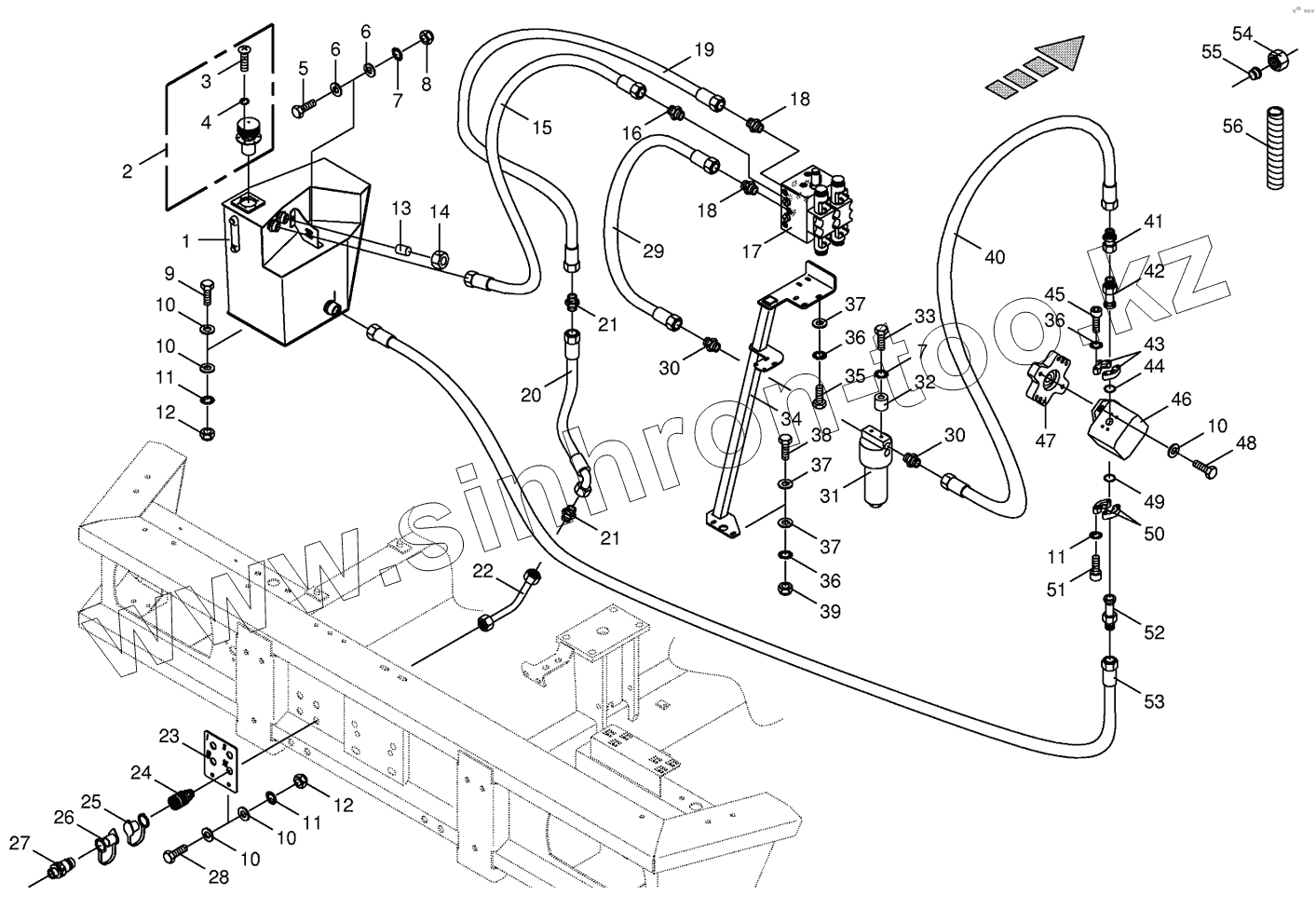

Каталог запасных частей к технике: KRONE BIG-X-650. Hydraulics- additive connection back

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
6
7
7
8
9
10
10
10
10
10
11
11
11
12
12
13
14
15
16
17
18
18
19
20
21
21
22
23
24
25
26
27
28
29
30
30
31
32
33
34
35
36
36
36
37
37
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
Позиция на иллюстрации Заводской номер детали Название детали
009376150 009376150 O-ring / pto shaft half
009197310 009197310 Filter element
009376140 009376140 O-ring
009209340 009209340 Filter element
1 200211780 Additional oil tank
2 002191690 Filler neck
3 009047690 Fillister head screw
4 009370000 O-ring
5 009006160 Hex head bolt
6 009104130 Washer
7 009099081 Detent edged washer
8 009087060 Locknut
9 009006570 Hex head bolt
10 009105061 Washer
11 009099101 Detent edged washer
12 009087010 Locknut
13 009193010 Locking cone w. O-ring
14 009208050 Nozzle disc cap
15 270004300 High pressure hose line
16 009196571 Male connector
17 270002640 Diverter valve bloc
18 009211792 Male connector
19 009209801 High pressure hose line
20 009200200 High pressure hose line
21 009211700 Connector
22 200211870 Hydraulic line-incl. nozzle disc cap, cutting ring
23 200211840 Supporting plate
24 270002660 Sleeve
25 270004530 Dust cap-red
26 270004540 Dust cap-red
27 270002650 Connector plug
28 009006560 Hex head bolt
29 270004310 High pressure hose line
30 009211741 Male connector
31 009209321 High pressure filter
32 002401872 Spacer bushing
33 009016131 Hex head bolt
34 200211830 Support
35 009006340 Hex head bolt
36 009099091 Detent edged washer
37 009104140 Washer
38 009006370 Hex head bolt
39 009087580 Locknut
40 009198670 High pressure hose line
41 009196590 Reducer fitting
42 270000710 SAE-flange adapter
43 009208571 SAE-flange section-2 halves
44 270039240 Flange gasket
45 009030020 Allen screw
46 270002280 Pump
47 270002290 Drive through mechanism
48 009003510 Hex head bolt
49 009376460 O-ring
50 009193651 SAE-flange section-2 halves
51 900000720 Allen screw
52 270000720 SAE-flange adapter
53 270004320 High pressure hose line
54 009211820 Nozzle disc cap
55 009211831 Cutting ring
56 009404780 Spiral strip-Id.-no.= 1m
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
