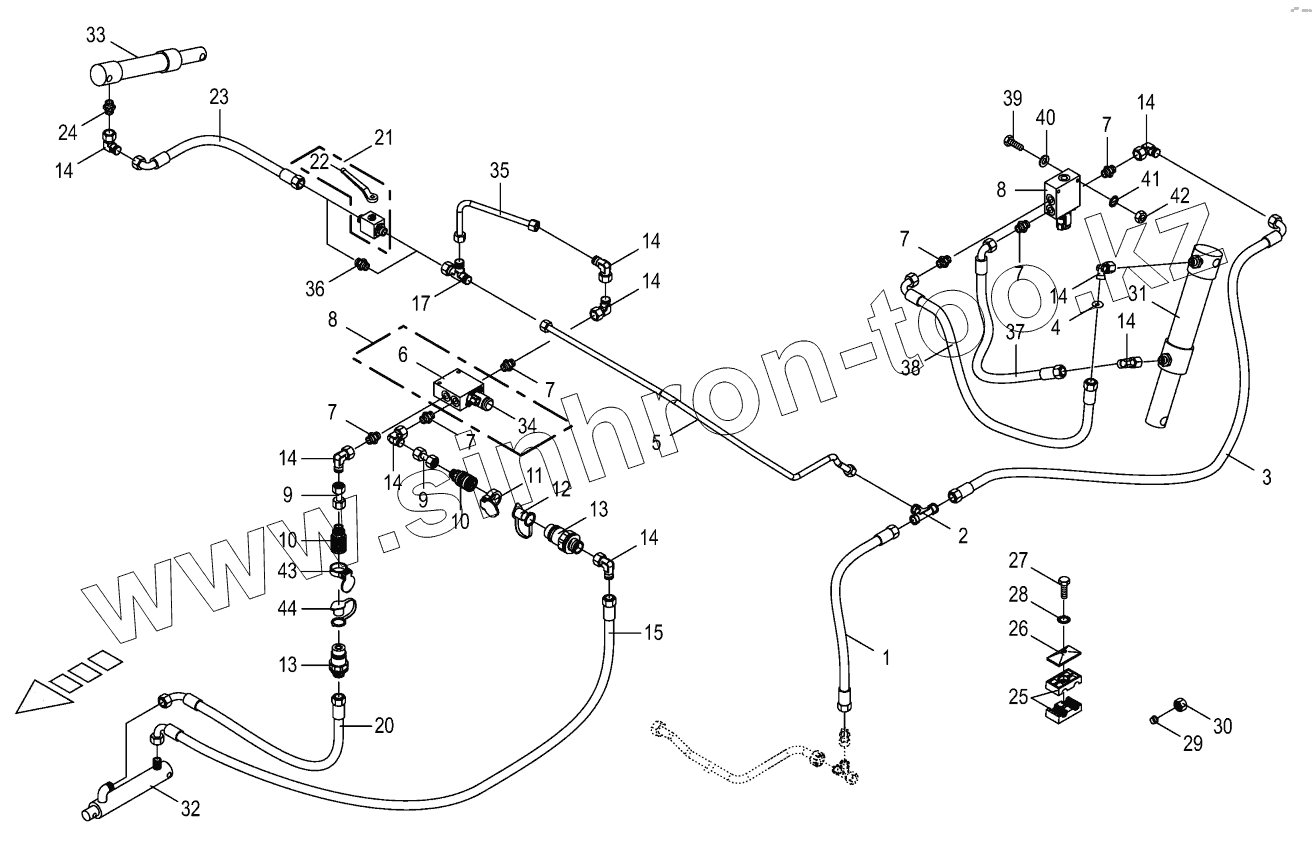

Каталог запасных частей к технике: KRONE BIG-X-600. Charge pressure line-part 2

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
7
7
7
7
7
8
8
9
9
10
10
11
12
13
13
14
14
14
14
14
14
14
14
14
15
17
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
Позиция на иллюстрации Заводской номер детали Название детали
270006090 270006090 Sealing set
270082610 270082610 Sealing set
270034060 270034060 Sealing set
1 270038410 High pressure hose line
2 009210711 T connector
3 009212581 High pressure hose line
4 003320143 Throttling disc
5 202251930 Hyd. line
6 270077920 Housing
7 009196300 Male connector
8 270077900 4/2-Directional-control valve
9 002307430 Double nipple
10 009193230 Sleeve
11 009199940 Cover-red
12 009211711 Dust cap-red
13 009193220 Connector plug
14 009210671 Angle lug
15 009200830 High pressure hose line
17 009210791 Adjustable L connection
20 270003320 High pressure hose line
21 009211222 Ball cock
22 009196640 Hand lever-incl. screw, washer
23 270071070 High pressure hose line
24 009209011 Male connector
25 009251050 Tube clamp-2 halves
26 009251340 Cover plate
27 009010092 Hex head bolt
28 009099081 Detent edged washer
29 009210461 Cutting ring
30 009212060 Nozzle disc cap
31 270092220 Нуdrаuliс суlindеr
32 270077930 Hydraulic cylinder
33 270013700 Hydraulic cylinder
34 270077910 4/2-Directional-control valve
35 200283960 Hydraulic line -incl. nozzle disc cap, cutting ring
36 009210541 Connector
37 009200950 High pressure hose line
38 270038460 High pressure hose line
39 009002440 Hex head bolt
40 009104111 Washer
41 009099061 Detent edged washer
42 009082080 Hex nut
43 009166020 Cover-blue
44 009212631 Dust cap-blue
