  5. Hydraulics - sharpening device / transv. ground following

Каталог запасных частей к технике: KRONE BIG-X-600. Hydraulics - sharpening device / transv. ground following

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
1
1
1
2
2
2
2
2
2
3
4
5
5
6
7
8
8
9
10
11
11
12
13
13
13
13
14
14
14
14
15
15
16
16
17
17
17
17
18
18
19
19
20
21
22
23
24
25
25
26
26
27
28
29
29
30
31
32
33
33
34
34
35
35
36
37
37
38
39
40
41
42
42
42
42
43
43
44
45
46
46
47
48
48
49
49
50
51
52
52

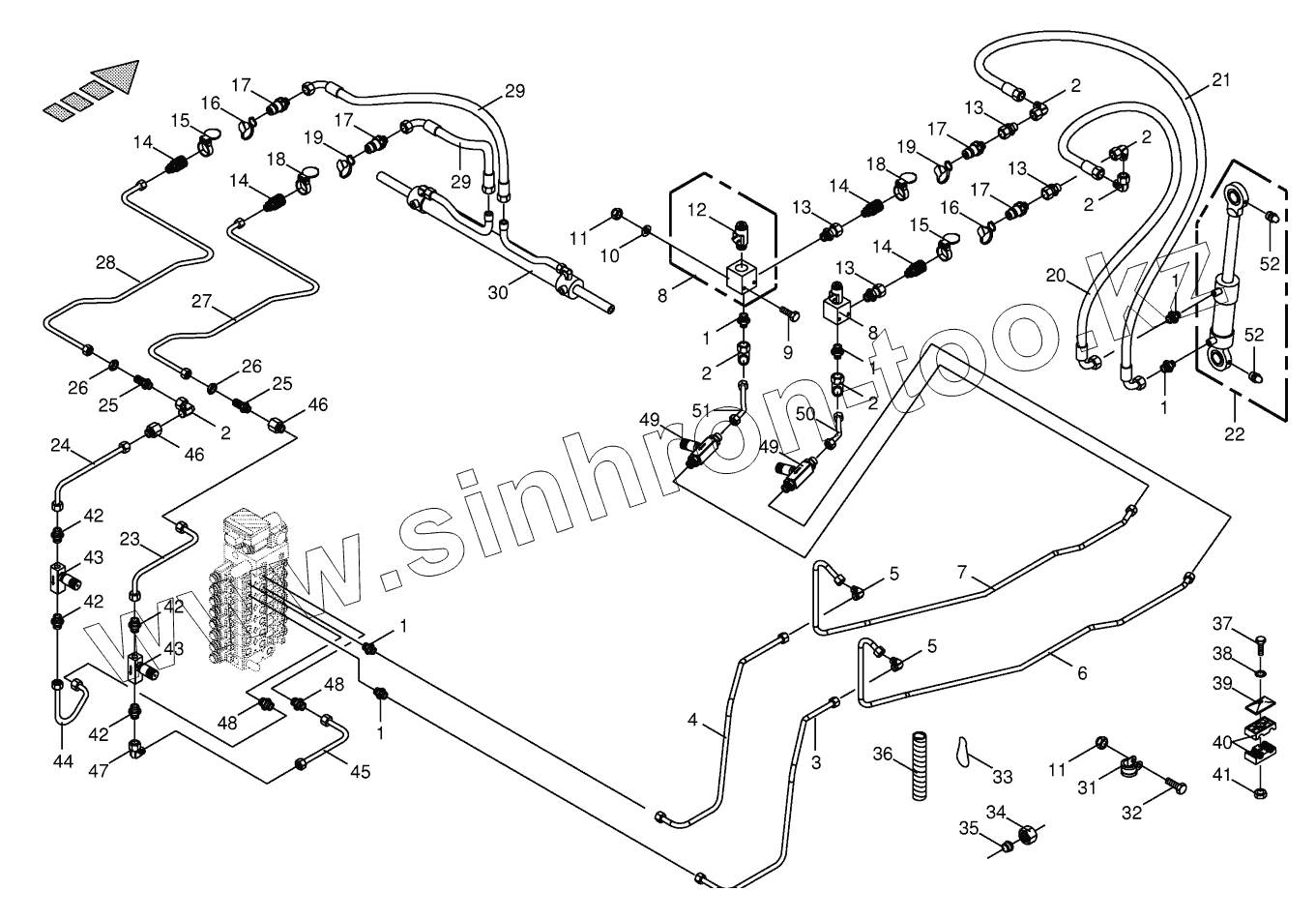

Позиция на иллюстрации Заводской номер детали Название детали
270006540 270006540 Sealing set
270064970 270064970 Sealing set
009191750 009191750 Solenoid coil
1 009209011 Male connector
2 009210671 Angle lug
3 200268160 Hydraulic line-incl. nozzle disc cap, cutting ring
4 200268140 Hydraulic line-incl. nozzle disc cap, cutting ring
5 009210661 Elbow union
6 200268150 Hydraulic line-incl. nozzle disc cap, cutting ring
7 200268130 Hydraulic line-incl. nozzle disc cap, cutting ring
8 002203601 2/2-way seated valve
9 009002641 Hex head bolt
10 009104130 Washer
11 009087060 Locknut
12 009191760 2/2-way seated valve
13 009210931 Male connector
14 009193230 Sleeve
15 009166020 Cover-blue
16 009212631 Dust cap-blue
17 009193220 Connector plug
18 009199940 Cover-red
19 009211711 Dust cap-red
20 009200930 High pressure hose line
21 009210041 High pressure hose line
22 270057641 Hydraulic cylinder
23 200217710 Hydraulic line-incl. nozzle disc cap, cutting ring
24 200217690 Hydraulic line-incl. nozzle disc cap, cutting ring
25 009210871 Straight 2-way connector
26 009085242 Hex nut-low form
27 200207200 Hydraulic line-incl. nozzle disc cap, cutting ring
28 200207210 Hydraulic line-incl. nozzle disc cap, cutting ring
29 009198640 High pressure hose line
30 009185400 Hydraulic cylinder
31 009240550 Tube clip w. rubber
32 009006170 Hex head bolt
33 009178021 Spring hook
33 009179011 Spring hook
34 009212060 Nozzle disc cap
34 009199620 Nozzle disc cap
35 009210461 Cutting ring
35 009199610 Cutting ring
36 009404780 Spiral strip-Id.-no.= 1m
37 009010421 Hex head bolt
37 009010481 Hex head bolt
38 009099081 Detent edged washer
39 009251340 Cover plate
40 009251050 Tube clamp-2 halves
41 009082100 Hex nut
42 009199640 Male connector
43 009193040 One-way restrictor-adjustable
44 200217560 Hydraulic line-incl. nozzle disc cap, cutting ring
45 200217720 Hydraulic line-incl. nozzle disc cap, cutting ring
46 009199700 Reducer fitting
47 009199650 Angle lug
48 900000480 Male connector
49 002296100 One-way restrictor
50 200246260 Hydraulic line-incl. nozzle disc cap, cutting ring
51 200246240 Hydraulic line-incl. nozzle disc cap, cutting ring
52 009191080 Grease niple
