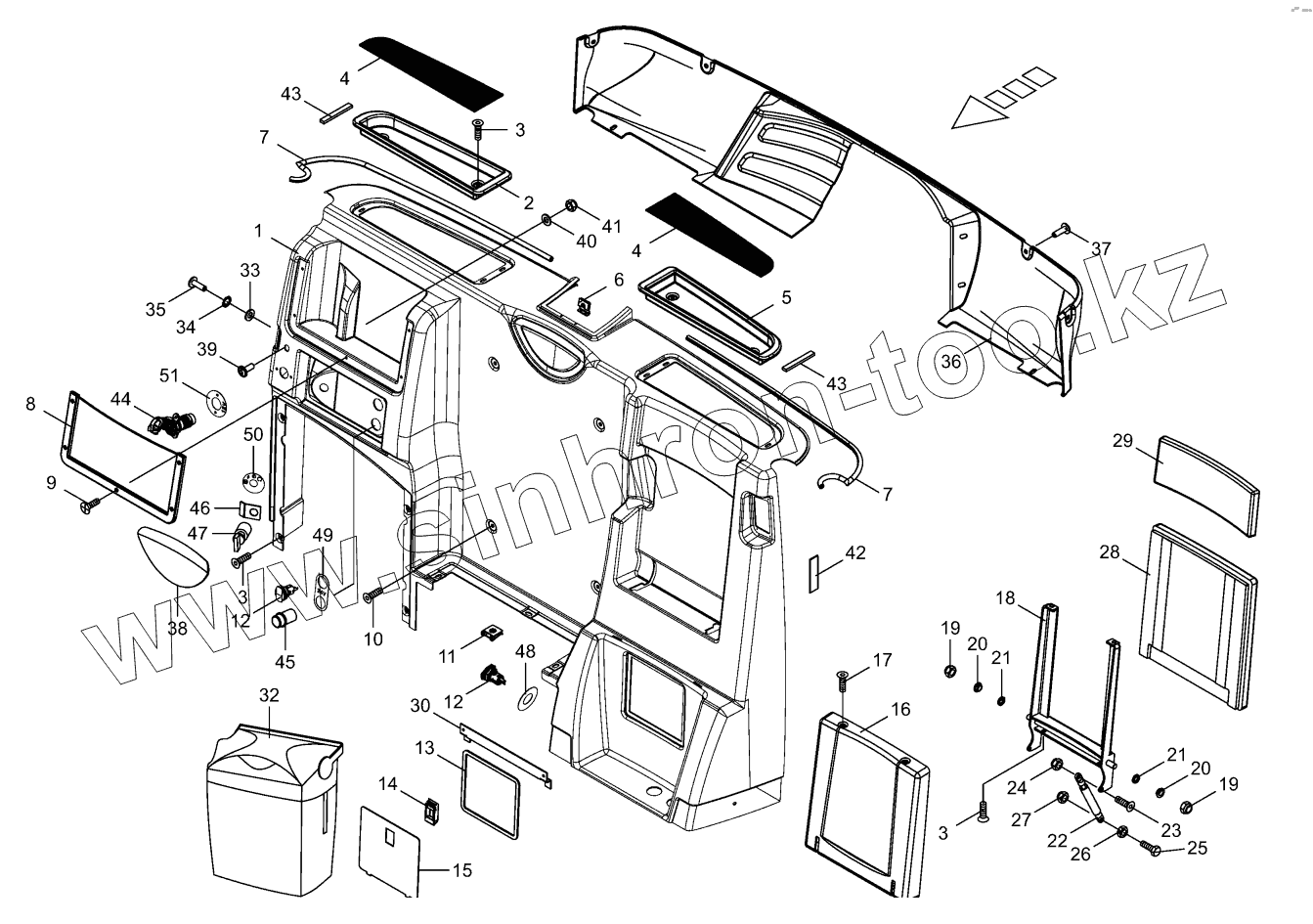

Каталог запасных частей к технике: KRONE BIG-X-580. Cab - rear covering / passenger seat

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
3
3
4
4
5
6
7
7
8
9
10
11
12
12
13
14
15
16
17
18
19
19
20
20
21
21
22
23
24
25
26
27
28
29
30
32
33
34
35
36
37
38
39
40
41
42
43
43
44
45
46
47
48
49
50
51
Позиция на иллюстрации Заводской номер детали Название детали
270104490 270104490 Backrest
270104480 270104480 Seat plate
1 204233170 Rear covering
2 200263120 Depot-right
3 200274490 Fillister head screw
4 200275610 Deposit mat
5 200263130 Depot-left
6 200275670 Sheet steel angle
7 200277470 Sponge rubber profile
8 200263110 Rack
9 200275650 Countersunkscrew
10 200275640 Fillister head screw
11 200275660 Sheet nut
12 200275630 Socket-2-pole
13 200275600 Cellular rubber
14 002204070 Spring lock
15 200275590 Cover
16 200275690 Seat plate
17 200275050 Fillister head screw
18 200275700 Steel construction
19 009087580 Locknut
20 200275680 Sliding bushing
21 200275620 Brass ring
22 200275710 Gas spring
23 009040051 Countersunkscrew
24 009087041 Locknut
25 009006160 Hex head bolt
26 009080300 Hex nut
27 009087060 Locknut
28 200263220 Plastic shell
29 200263100 Backrest
30 200278260 Supporting angle
32 270057180 Cooler
33 200274850 Washer
34 009099081 Detent edged washer
35 200275180 Fillister head screw
36 200288940 Rear wall cover
37 200277770 Fillister head screw
38 200297070 Surface schooner
39 200274480 Fillister head screw
40 009103650 Washer
41 009087020 Locknut
42 270109590 Cellular rubber 2x20 rear cov.
43 270109540 Sealing kit storage compartment
44 009246760 Socket-2-pole
45 202241370 Cigarette lighter
46 202241360 Anti-twist lock ignition key
47 003026560 Ignition switch
48 202284980 12 volts labelling power socket
49 202284730 24 volts labelling double
50 202284710 Platelet for ignition lock
51 202284740 12 volts labelling socket
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
