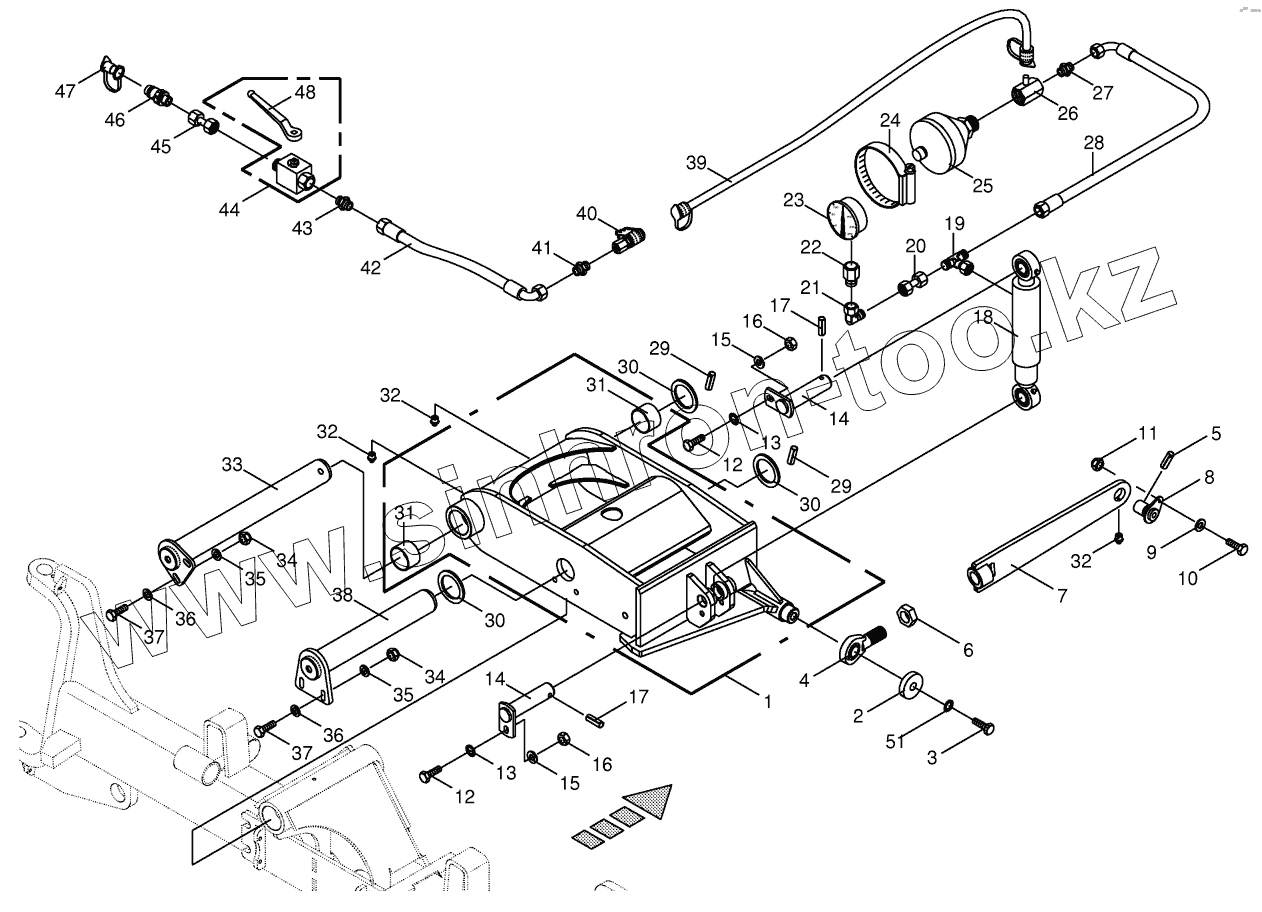

Каталог запасных частей к технике: KRONE BiG X 500. Steering axle rocker arm

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
00 918 783 2
00 219 102 1
00 918 783 2
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
14
15
15
16
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
30
30
30
30
30
30
30
31
31
32
32
32
33
34
34
35
35
36
36
37
37
38
39
40
41
42
43
44
45
46
47
48
51
Позиция на иллюстрации Заводской номер детали Название детали
00 918 783 2 00 918 783 2 Sealing set
00 219 102 1 00 219 102 1 Hydraulic cylinder
00 918 783 2 00 918 783 2 Sealing set
1 00 214 605 4 Steering axle rocker arm with bushing
2 00 221 892 0 Washer
3 00 900 678 0 Hex head bolt
4 27 003 615 0 Joint head
5 00 912 648 2 Roll pin
6 90 000 298 0 Hex nut -low form
7 20 024 387 0 Coupler
8 00 224 804 3 Poling bolt
9 00 910 413 0 Washer
10 00 900 214 0 Hex head bolt
11 00 908 706 0 Locknut
12 00 900 638 0 Hex head bolt
13 00 909 909 1 Detent edged washer
14 00 266 620 0 Pin
15 00 910 414 0 Washer
16 00 908 212 0 Hex nut
17 00 912 672 1 Roll pin
18 00 219 102 0 Hydraulic cylinder
19 00 921 077 1 T connector
20 00 230 743 0 Double nipple
21 00 921 067 1 Angle lug
22 00 920 919 0 Connector
23 00 920 914 0 Pressure guage
24 00 925 165 0 Hose clamp
25 00 921 559 0 Hydraulic - reservoir
26 00 919 362 0 Damper
27 00 919 785 1 Male connector
28 00 920 972 0 High pressure hose line
29 00 912 752 0 Roll pin
30 00 911 004 0 Shim ring
30 00 911 005 1 Shim ring
31 00 935 331 0 Bearing bush
32 00 919 105 0 Grease niple
33 00 221 839 3 Retention bolt
34 00 908 701 0 Locknut
35 00 910 506 1 Washer
36 00 910 320 0 Washer
37 00 901 451 0 Hex head bolt
38 00 221 877 3 Retention bolt
39 00 919 614 0 Measuring hose
40 27 000 662 0 Connector f.mini-test equipm.
41 00 919 302 0 Connector
42 00 920 101 0 High pressure hose line
43 90 000 048 0 Male connector
44 00 919 603 0 Ball valve
45 00 230 743 0 Double nipple
46 00 919 322 0 Connector plug
47 00 921 171 1 Dust cap -red
48 00 919 664 0 Hand lever -incl. screw, washer
51 00 909 912 1 Detent edged washer
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
