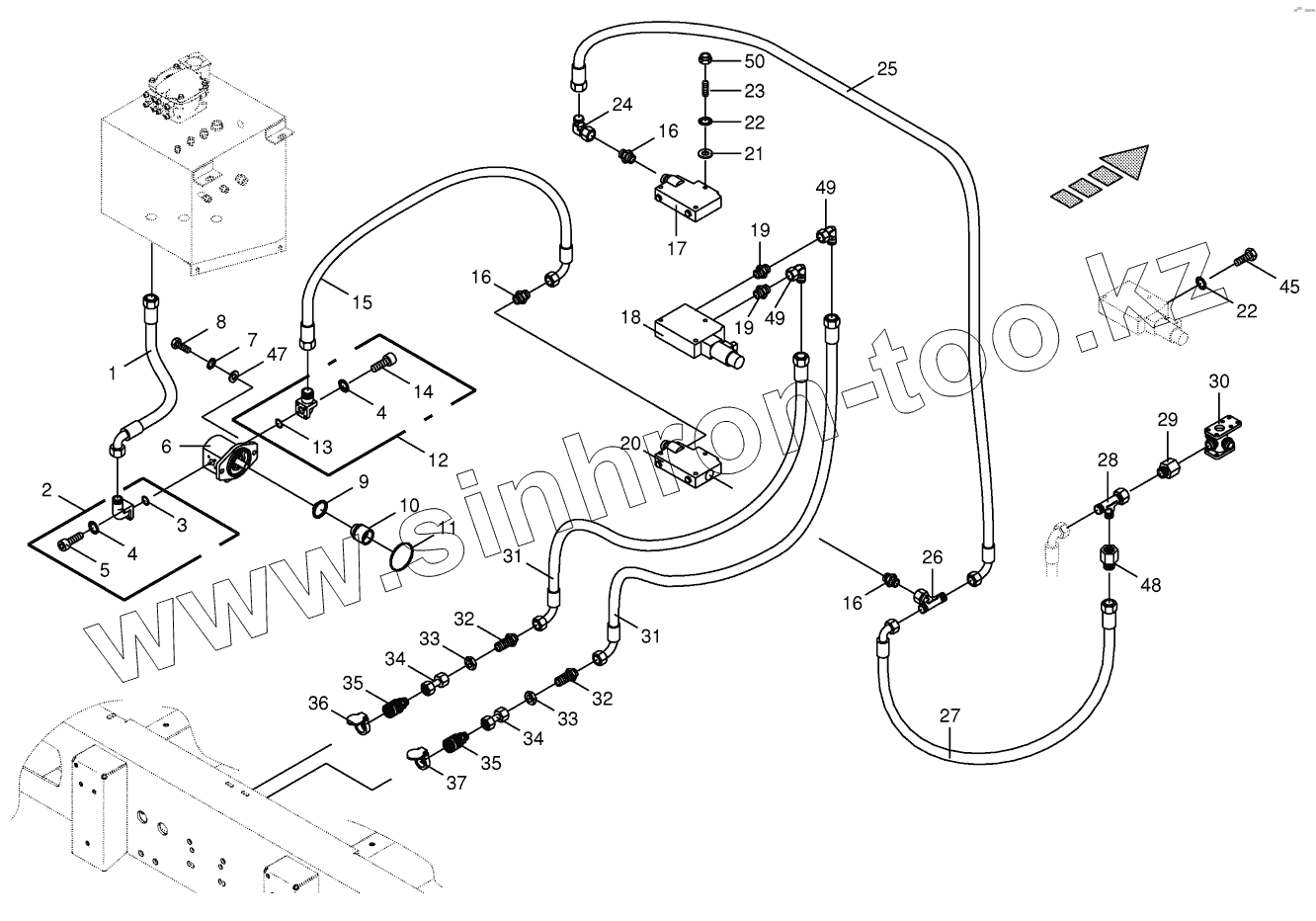

Каталог запасных частей к технике: KRONE BiG X 500. Hydraulics - additive connection back

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
27 006 765 0
27 006 666 0
27 006 664 0
00 919 116 0
00 919 180 0
00 920 832 0
1
2
3
4
4
5
5
6
7
8
9
10
11
12
13
14
14
15
16
16
16
17
18
19
19
20
21
22
22
23
24
25
26
27
28
29
30
31
31
32
32
33
33
34
34
35
35
36
37
45
47
48
49
49
50
Позиция на иллюстрации Заводской номер детали Название детали
27 006 765 0 27 006 765 0 Sealing set
27 006 666 0 27 006 666 0 Protective cap
27 006 664 0 27 006 664 0 Nozzle disc cap
00 919 116 0 00 919 116 0 Control solenoid
00 919 180 0 00 919 180 0 Repairing sets
00 920 832 0 00 920 832 0 Sealing set
1 00 919 859 0 High pressure hose line
2 00 919 757 0 Flange connection
3 00 937 628 0 O-ring
4 00 909 906 1 Detent edged washer
5 00 903 051 2 Allen screw
5 00 903 045 1 Allen screw
6 27 002 005 0 Pump
7 00 909 910 1 Detent edged washer
8 00 900 656 0 Hex head bolt
9 00 911 510 0 Circlip
10 20 026 936 0 Adapter
11 00 937 611 1 O-ring
12 00 919 756 0 Flange connection
13 00 937 629 0 O-ring
14 00 903 045 1 Allen screw
14 00 903 049 1 Allen screw
15 00 920 003 0 High pressure hose line
16 00 920 911 1 Male connector
17 00 920 821 0 End plate
18 00 919 012 0 Directional-control valve
19 00 920 901 1 Male connector
20 00 920 801 0 Connecting plate
21 00 910 603 0 Washer
22 00 909 908 1 Detent edged washer
23 90 000 545 0 Threaded rod
24 00 921 065 1 Angle lug
25 00 920 003 0 High pressure hose line
26 00 920 950 0 T connector
27 00 921 550 0 High pressure hose line
28 00 921 238 0 Adjustable L connection
29 00 919 659 0 Reducer fitting
30 00 214 760 0 Collector -radiator
31 00 920 093 0 High pressure hose line
32 00 921 087 1 Straight 2-way connector
33 00 908 524 2 Hex nut -low form
34 00 230 743 0 Double nipple
35 00 921 130 0 Sleeve
36 00 916 602 0 Cover -blue
37 00 919 994 0 Cover -red
45 00 900 612 0 Hex head bolt
47 00 910 506 1 Washer
48 00 921 184 0 Reducer fitting
49 00 921 067 1 Angle lug
50 00 908 706 0 Locknut
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
