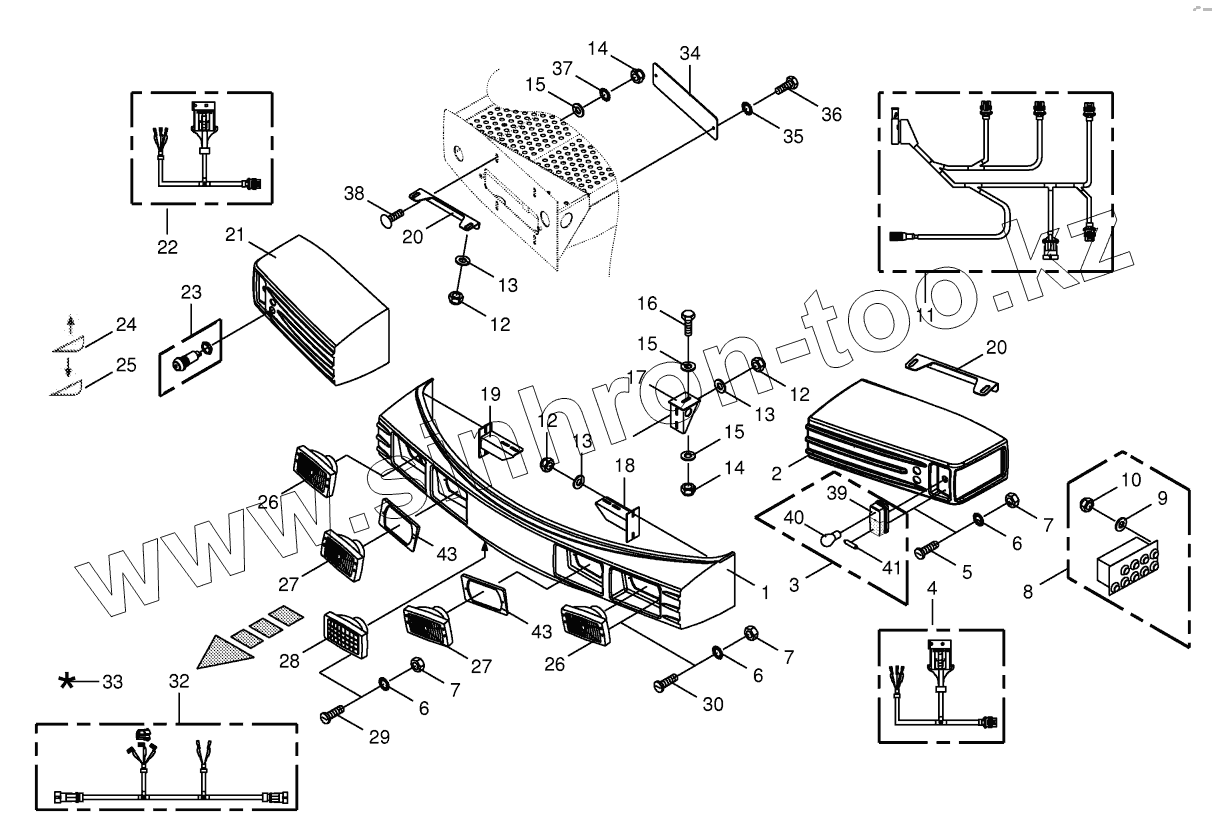

Каталог запасных частей к технике: KRONE BiG X 500. Front panel / Headlight

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
00 924 714 0
00 924 714 0
00 924 688 0
00 924 688 0
00 924 688 0
90 000 556 0
1
2
3
4
5
6
6
6
7
7
7
8
9
10
11
12
12
12
13
13
13
14
14
15
15
15
16
17
18
19
20
20
21
22
23
24
25
26
26
27
27
28
29
30
32
33
34
35
36
37
38
38
39
40
41
43
43
Позиция на иллюстрации Заводской номер детали Название детали
00 924 714 0 00 924 714 0 Bulb
00 924 688 0 00 924 688 0 Bulb
00 924 688 0 00 924 688 0 Bulb
90 000 556 0 90 000 556 0 Allen screw
1 00 223 021 3 Front buffle
2 20 020 130 0 Front guard -left
3 00 924 636 1 Flashing light with side light
4 20 080 495 0 Wiring harness -left
5 00 903 425 1 Allen screw
6 00 910 001 0 Spring washer
7 00 908 006 1 Hex nut
8 20 080 302 1 Operation manual opera 2013/ 15 with sw
9 00 910 365 0 Washer
10 00 908 702 0 Locknut
11 00 305 038 1 Wiring harness -hand operation
12 00 908 706 0 Locknut
13 00 910 603 0 Washer
14 00 908 758 0 Locknut
15 00 910 353 0 Washer
16 00 900 636 0 Hex head bolt
17 00 225 389 1 Support -middle
18 00 222 979 1 Support -left
19 00 222 980 2 Support -right
20 00 217 545 3 Fastening angle
21 20 020 131 0 Front guard -right
22 20 080 496 0 Wiring harness -right
23 00 302 723 0 Feeler -yellow
24 00 303 417 0 Tag -lift lifting gear
25 00 303 418 0 Tag -lower lifting gear
26 00 924 744 0 Headlight -outside
27 00 924 637 1 Headlight -middle
28 00 924 750 0 Work light
29 00 903 427 1 Allen screw
30 90 000 441 0 Allen screw
32 00 303 193 4 Wiring harness -middle
33 00 940 375 0 Repairing set for plastics - beige
34 00 227 913 2 Cover
35 00 909 908 1 Detent edged washer
36 00 900 614 0 Hex head bolt
37 00 909 909 1 Detent edged washer
38 00 904 850 1 Coach bolt
38 00 904 745 1 Coach bolt
39 20 080 761 0 Pane
40 00 924 693 0 Singel filament buld
41 00 924 709 0 Singel filament buld
43 20 024 493 0 Key
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
