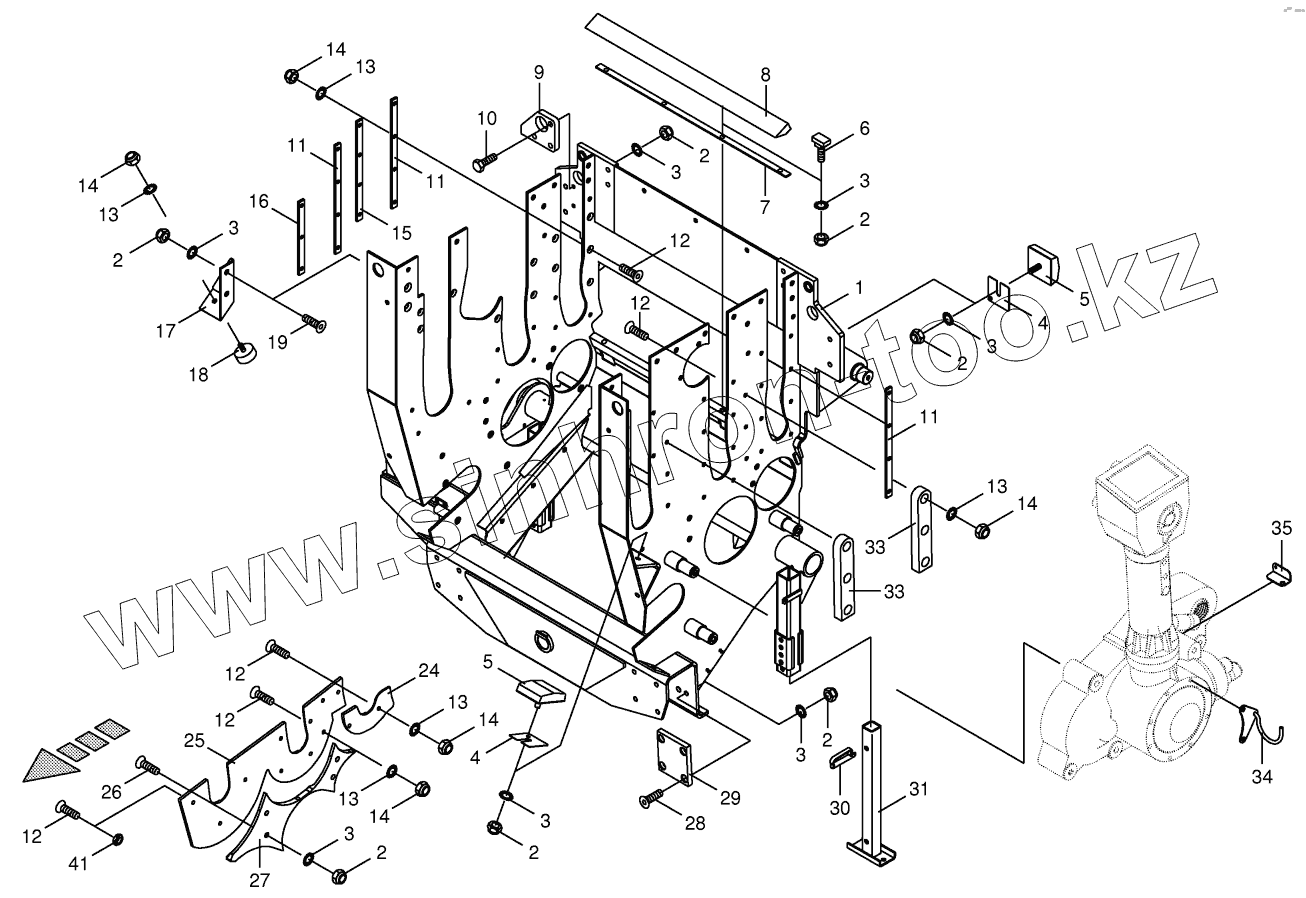

Каталог запасных частей к технике: KRONE BiG X 500. Feeder Housing with support foot
20 023 269 1
20 022 649 0
20 023 340 0
20 023 341 0
20 022 653 0
20 022 991 0
00 904 047 3
00 904 047 3
00 904 047 3
00 904 047 3
00 904 047 3
00 904 045 3
00 904 045 3
00 904 045 3
00 904 045 3
00 904 045 3
00 904 010 1
00 904 010 1
00 904 010 1
00 904 010 1
00 904 010 1
1
2
2
2
2
2
2
2
3
3
3
3
3
3
3
4
4
5
5
6
7
8
9
10
11
11
11
12
12
12
12
12
13
13
13
13
13
14
14
14
14
14
15
16
17
18
19
24
25
26
27
28
29
30
31
33
33
34
35
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 20 023 269 1 | 20 023 269 1 | Formed part -right | |
| 20 022 649 0 | 20 022 649 0 | Wearing plate -right front | |
| 20 023 340 0 | 20 023 340 0 | Wearing plate -back right, HD | |
| 20 023 341 0 | 20 023 341 0 | Wearing plate -back left, HD | |
| 20 022 653 0 | 20 022 653 0 | Wearing plate -back right | |
| 20 022 991 0 | 20 022 991 0 | Limit stop -left front | |
| 00 904 047 3 | 00 904 047 3 | Countersunkscrew | |
| 00 904 045 3 | 00 904 045 3 | Countersunkscrew | |
| 00 904 010 1 | 00 904 010 1 | Countersunkscrew | |
| 1 | 20 022 696 4 | Base frame | |
| 2 | 00 908 701 0 | Locknut | |
| 3 | 00 909 910 1 | Detent edged washer | |
| 4 | 00 217 511 1 | Enclosure | |
| 5 | 00 924 218 0 | Rubber pad | |
| 6 | 90 000 344 0 | T-slot bolt | |
| 7 | 20 023 704 0 | Spacer bar | |
| 8 | 20 024 357 2 | Scraper | |
| 9 | 00 216 642 0 | Limit stop -back right | |
| 10 | 00 900 656 0 | Hex head bolt | |
| 11 | 20 023 273 1 | Guide | |
| 12 | 00 904 043 3 | Countersunkscrew | |
| 13 | 00 909 909 1 | Detent edged washer | |
| 14 | 00 908 758 0 | Locknut | |
| 15 | 20 023 274 1 | Guide | |
| 16 | 20 023 275 1 | Guide | |
| 17 | 00 216 641 1 | Limit stop -right front | |
| 18 | 00 924 260 1 | Rubber pad | |
| 19 | 00 904 062 2 | Countersunkscrew | |
| 24 | 20 022 654 0 | Wearing plate -back left | |
| 25 | 20 022 650 0 | Wearing plate -left front | |
| 26 | 00 904 065 3 | Countersunkscrew | |
| 27 | 20 023 268 1 | Formed part -left | |
| 28 | 00 904 064 0 | Countersunkscrew | |
| 29 | 00 221 338 1 | Sliding plate | |
| 30 | 00 917 013 0 | Spring stick bolt | |
| 31 | 00 217 856 2 | Telescope stand | |
| 33 | 00 216 309 0 | Slide block | |
| 34 | 00 217 886 1 | Pto drive shaft support | |
| 35 | 00 216 344 0 | Angle | |
| 41 | 00 908 500 0 | Hex nut -low form |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
