  5. Discharge accelerator housinge -spring-mounted

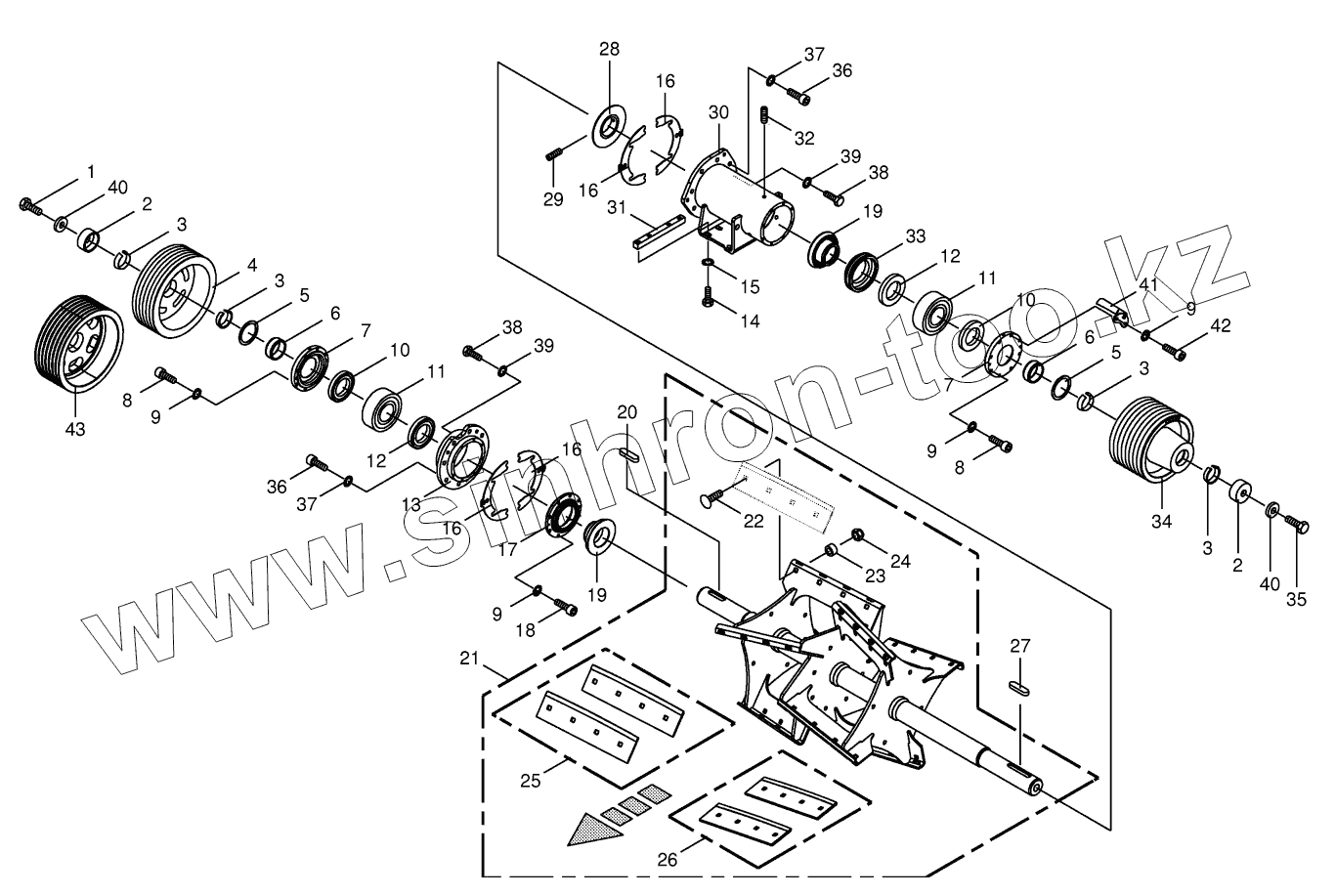

Каталог запасных частей к технике: KRONE BiG X 500. Discharge accelerator housinge -spring-mounted

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
20 024 710 0
00 904 047 3
00 904 047 3
20 023 922 1
1
2
2
3
3
3
3
8
8
9
9
9
9
10
10
11
11
12
12
13
14
15
16
16
16
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
31
32
33
34
35
36
36
37
37
38
38
39
39
40
40
41
42
43
Позиция на иллюстрации Заводской номер детали Название детали
20 024 710 0 20 024 710 0 Spring guide -left
00 904 047 3 00 904 047 3 Countersunkscrew
20 023 922 1 20 023 922 1 Scraper -HD optional
1 00 215 804 4 Housing
2 00 901 460 0 Hex head bolt
3 00 909 910 1 Detent edged washer
8 00 219 987 2 Cover -right
9 00 219 984 1 Cover -left
10 00 909 908 1 Detent edged washer
11 00 900 614 0 Hex head bolt
12 00 900 612 0 Hex head bolt
13 00 215 699 1 Clamping block
14 00 909 912 1 Detent edged washer
15 00 900 353 1 Hex head bolt
16 00 904 024 1 Countersunkscrew
17 00 224 044 2 Threaded bar
18 00 215 803 1 Stripper
19 00 904 045 3 Countersunkscrew
20 00 221 972 1 Support bar
21 20 024 845 0 Slider channel
22 20 024 847 0 End plate
23 20 024 846 0 Clamping plate
24 00 906 132 0 Winged screw
25 00 215 723 3 Wearing plate -left
26 00 215 722 3 Wearing plate -right
27 00 904 062 2 Countersunkscrew
28 20 025 997 1 Wearing plate
29 20 027 297 1 Rear wall discharge accelerator
31 00 910 414 0 Washer
32 00 909 909 1 Detent edged washer
33 00 908 758 0 Locknut
34 27 008 088 0 Rubber profile -Id.-no.= 1m
35 20 020 252 0 Angle bracket
36 20 025 486 0 Cover cpl
37 00 924 251 0 Retaining washer
38 00 910 340 0 Washer
39 27 011 786 0 Lock journal
40 00 223 391 0 Rubber profile -Id.-no.= 1m
41 20 024 828 0 Spring guide -right
42 00 900 636 0 Hex head bolt
43 27 005 385 0 Rubber pad
44 20 024 831 1 Drawbar
45 00 450 143 0 Pressure spring
46 00 281 790 5 Bushing
47 20 024 830 1 Joint bolt
48 00 912 562 2 Roll pin
49 20 024 829 0 Spring support
50 00 901 433 0 Hex head bolt
51 00 910 510 2 Washer
52 90 000 121 0 Washer
53 00 908 212 0 Hex nut
54 27 006 909 0 Spring bolt
55 20 027 611 0 Rubber plate
56 00 900 638 0 Hex head bolt
57 00 910 361 1 Washer
58 20 221 005 0 Plate
