  5. Chopping drum support - mounting parts

Каталог запасных частей к технике: KRONE BiG X 500. Chopping drum support - mounting parts

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
27 008 261 0
1
1
2
3
3
3
3
3
4
5
6
7
8
9
10
11
11
12
13
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
28
28
29
29
29
29
30
31
32
32
33
33
33
34
35
36
37
38
39
40
41
42
43
44
45
45
46
46
46
47
48

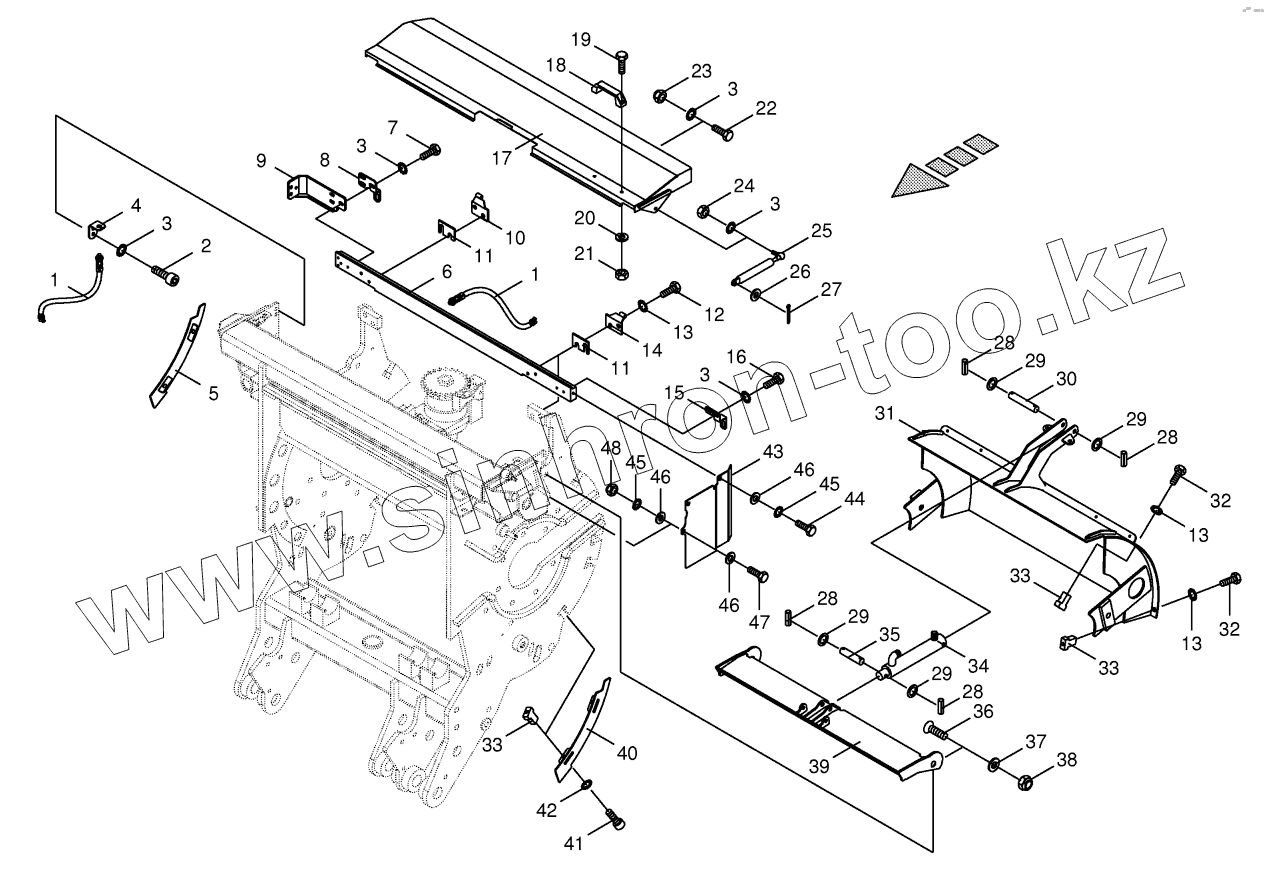

Позиция на иллюстрации Заводской номер детали Название детали
27 008 261 0 27 008 261 0 Sealing set
1 00 302 409 2 Namur sensor
2 00 900 634 0 Hex head bolt
3 00 909 908 1 Detent edged washer
4 20 221 002 0 Sensor support
5 20 024 511 1 Sealing plate -right
6 20 023 346 0 Guide rail
7 00 900 617 0 Hex head bolt
8 20 023 344 0 Sensor support -right
9 20 023 727 0 Adjuster support
10 00 215 416 0 Flap support -right
11 20 020 386 0 Enclosure
12 00 900 658 0 Hex head bolt
13 00 909 910 1 Detent edged washer
14 00 215 413 0 Flap support -left
15 20 023 345 0 Sensor support -left
16 00 900 616 0 Hex head bolt
17 20 028 969 0 Grinding flap
18 00 924 915 0 Hand grip
19 00 900 608 0 Hex head bolt
20 00 910 411 1 Washer
21 00 908 208 0 Hex nut
22 00 901 008 1 Hex head bolt
23 00 908 706 0 Locknut
24 00 908 210 0 Hex nut
25 00 938 696 0 Gas spring
26 00 910 413 0 Washer
27 00 912 046 1 Cotter pin
28 00 912 562 2 Roll pin
29 00 910 803 0 Shim ring
30 00 215 455 0 Pin
31 00 215 346 0 Cover
32 00 901 454 0 Hex head bolt
33 20 024 509 0 Threaded piece
34 27 007 793 0 Hydraulic cylinder
35 00 215 454 0 Pin
36 90 000 111 0 Countersunkscrew
37 00 910 303 0 Washer
38 00 908 719 0 Locknut
39 00 215 448 3 Grinding flap
40 20 024 514 1 Sealing plate -left
41 00 903 142 1 Allen screw
42 00 909 911 0 Detent edged washer
43 20 223 892 0 Guard plate grinding device
44 00 900 632 0 Hex head bolt
45 00 909 909 1 Detent edged washer
46 00 910 414 0 Washer
47 00 900 637 0 Hex head bolt
48 00 908 758 0 Locknut
49 00 909 907 0 Detent edged washer
