Каталог запасных частей к технике: KRONE BiG X 500. Chopping aggregate -cpl. without blades

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано 280CV-Q, 320CV-Q, 280CRI-Q (2013) 280CV-Q, 320CV-Q, 280CRI-Q (2013) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) AFL243RS (2013) AM 203CV, AM 243CV, AM 283CV (2018) AM 203CV, AM 243CV, AM 283CV (2018) AM 203CV, AM243CV, AM283CV (2018) AM 203CV, AM243CV, AM283CV (2018) AM 243 (2018) AM 243CV (2018) AM 243CV (2018) AM 243CV, AM283CV (2018) AM 283 (2018) AM 283CV (2018) BiG X 500 (2018) BiG X V8, BiG X V12 (2018) BIG-M-400 (2016) BIG-M-420 (2016) BIG-M-420 (2016) BIG-M-I (2016) BIG-M-I (2016) BIG-M-I (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-X-1000 (2016) BIG-X-1000 (2016) BIG-X-1100 (2016) BIG-X-480 (2016) BIG-X-480 (2017) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-530 (2016) BIG-X-530 (2017) BIG-X-580 (2016) BIG-X-580 (2017) BIG-X-600 (2016) BIG-X-600 (2016) BIG-X-600 (2016) BIG-X-630 (2016) BIG-X-630 (2017) BIG-X-650 (2010) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-700 (2010) BIG-X-700 (2013) BIG-X-700 (2013) BIG-X-700-1 (2013) BIG-X-700-1 (2013) BIG-X-700-1 (2016) BIG-X-700-1 (2016) BIG-X-700-1 (2016) BIG-X-800 (2016) BIG-X-800 (2016) BIG-X-800/1000 (2013) BIG-X-850-1 (2018) BIG-X-850-1/1100-1 (2013) BIG-X-850-1/1100-1 (2013) BIG-X-850/1100 (2013) BIG-X-V8/BIG-X-V12 (2013) BIG-X-V8/BIG-X-V12 (2013) BIG-X-V8/BIG-X-V12 (2013) Easycollect (2018) EasyCut F360M (2018) EasyFlow 300, 380 (2012) EasyFlow 3000, 3800 (2013) EasyFlow 3000, 3800 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EC 27/32 (2013) EC 28/32 (2013) EC 28/32 (2013) EC 28/32 (2013) EC 28/32CV (2013) EC 28/32CV (2013) EC 28/32CV (2013) EC 28/32M (2013) EC 28/32M (2013) EC 28/32P (2013) EC 28/32P (2013) EC 28/32P (2013) EC 28M (2013) EC 32CRI (2013) EC 32CRI (2013) EC 32CRI (2013) EC 32CV (2013) EC 360/400 (2013) EC 360/400 (2013) EC 360/400 (2013) EC 360/400 (2013) EC F280 (2018) EC F280 / F320 (2013) EC F280 M (2013) EC F280/320/360 (2013) EC F320 (2018) EC F320 M (2013) EC F320 M (2013) EC F320CV (2013) EC F320M/F360M (2013) EC F360 (2018) EC R280 (2013) EC R320 (2013) EC R360 (2013) EC R400 (2018) EC-9000 (2008) EC270CV/320CV (2013) EC280/320 (2013) EC280/320 (2013) EC280/320 (2013) EC280CV-Q/320CV-Q (2013) EC280CV/320CV (2013) EC280CV/320CV/280CR (2013) EC280CV/320CV/C280CRI (2013) EC28CV/32CV/32CV-F (2013) EC28CV/C32CV/32CV-F (2013) EC32CV/32CV-F (2013) EColl.6000,7500,6000FP (2013) EColl.6000,7500,9000,6000F (2013) EColl.6000,7500,9000,6000F/FP (2013) EColl.6000,7500,9000,6000F/FP (2013) EColl.6000-7500-9000-6000CL/JD (2013) ECollect 753, 903, 1053 (2013) ECollect753, 903, 1053 (2013) ECollect753, 903, 1053 (2013) ECR280CV/320CV (2012) KW 8.50-8 (2018) KWT 7.70-6X7, KWT 8.50-8, KWT 10.50-8X7 (2018) X-Disc 6200 (2013) X-Disc 6200 (2013)

Схема > Не выбрано Feeder Feeder Housing with support foot Grain collecting plate / slotted cover Lower feed rollers Lower feed roller bearing Top feed rollers Top feed roller bearing Cover- Feeder Housing Auxiliary gearbox / Drive Roller gearbox part 1 Roller gearbox part 2 P.T.O shafts Top roller gearbox Oscillating levers/Tension spring Pivoting frame / linkage Lateral flotation system Lateral flotation system/Locking mech. Angle sensor- Pivoting frame Chopping aggregate -cpl. without blades Chopping drum support Chopping drum support - mounting parts Drum base -spring-mounted Husk / friction ground -spring-mounted Chopping drum Chopping drum bearing / counter bearing Tensioning device- main drive Belt guide - main drive Angle sensor - chopping drum Shear bar adjustment Sharpening Sharpening device drive Transfer channel -spring-mounted Grass channel -spring-mounted Grain conditioner cpl. / cracker duct -spring-mounted Cracker housing - mounting parts -spring-mounted Cracker housing - mounting parts -disc corn conditioner Roller front Disc roller -front Roller back Disc roller -back E-Motor und Spannspille Pulley for changing directions Cracker drive / tensioning device Rope winch / Installation car Rope winch / Installation car Discharge accelerator / bearing Discharge accelerator housinge -spring-mounted Auger-gearbox 856001 - 875000 Auger-gearbox 875001 - 874830 Duct nozzle Mounting parts discharge chute rotation Channel union -HD parts Discharge chute assembl. Upper discharge chute with wear plates Upper discharge chute "short" with wear plates Discharge flap-end piece Discharge chute extension 10-row Discharge chute extension 12-row Upper discharge chute - mounting parts Discharge chute extension 14-row Upper discharge chute - mounting parts 14-row Camera surveillance / Rear view mirror ForageCam Cab - mounting parts / electric parts Cab - control panel (roof) / circuit board Cab - glazing Glass wiper Steering columm Wear parts - driver's seat Cab - Sound deadening Cab - Cab lining, aerial Rear blind / lateral blind Control box mounting parts -top Control box / controls eletronic Frame / trailer hitch / ascending ladder Tank protection Cab access left / platform right Additional tread Tool box - pivoting Panelling frame / Cladding -front top Panelling frame / Cladding -back top Battery box Mudguard / warning panel Fold-away warning panel Front panel / Headlight Cladding -lateral Cladding -back Tyres Steering axle rocker arm Hydraulic parking brake Steering axle Variable disqlacement pumps Hydraulic tank / suction lines Hand pump Housing line / oil cooler Traction drive pump Traction drive wheel engine Oil leckage pipes / return lines - front Hydraulics - speed range shifting Oil leckage pipes / return lines - back Charge pressure lines - front Charge pressure lines - back Hydraulics - front attachment / feed rollers Charge pressure lines - back Valve block with support- work hydraulics Hydraulic steering system Hydraulic brakes Hydraulics - pump 2 times / storage chorging valve Hydraulics - lift Hydraulics - lift 12/14 row Hydraulics cpl. - discharge chute Hydraulics - discharge chute - 14-row Hydraulics - front attachment Hydraulics - sharpening device / transv. ground following Lines main clutch Hydraulics - additive connection back Additive connection for trailer Hydraulics - additive connection back Gear molasses pump Diesel fuel tank Diesel fuel pipe Auxiliary tank Additional tank for silage agent system Silage agent system / Wiring harness Regulated silage agent dosing Diesel engine Clutch / Silencer Motor output gear Hydraulic four-surface clutch Fan gearbox Ventilator wheel / Drive Radiator frame / radiator door Condenser for air conditioner - cpl. Air cleaning equipment Rotor / Air conditioner mounting Sieve drum Suction fan Air pressure - Blow-out gun Air pressure - Feeder Air conditioning Evaporator Wiring harness fastening Wiring harness - control box Wiring harness - below the cabin Wiring Harness - lateral left Wiring Harness - chopping aggregate / backlash-alarm Wiring Harness - valve block Wiring loom - hydraulic pumps Wiring Harness - engine Wiring Harness - rear / drive valve Wiring harness - auxiliary hydraulics Wiring Harness - lighting Printer CropControl-optional Moisture measurement NIR - Moisture measurement RockProtect-optional Several wiring looms Several wiring looms Indicator / parking light commutation Battery and ground cable Lighting / returning horn - back Additional axis Hydraulics - additional axis Hydraulic panel - additional axis Electronics - additional axis Installation car Fire extinguisher Central lubrication -Vogel Spare parts case for central lubrication -Vogel Central lubrication -BEKA - MAX Pump for central lubrication-BEKA - MAX Spare parts case for central lubrication -BEKA MAX P.T.O shafts -roller drive P.T.O shafts -drive - Pick-up P.T.O shafts -roller gear -below Warning signs General information labels Label - Circuit board

1

1

1

2

3

4

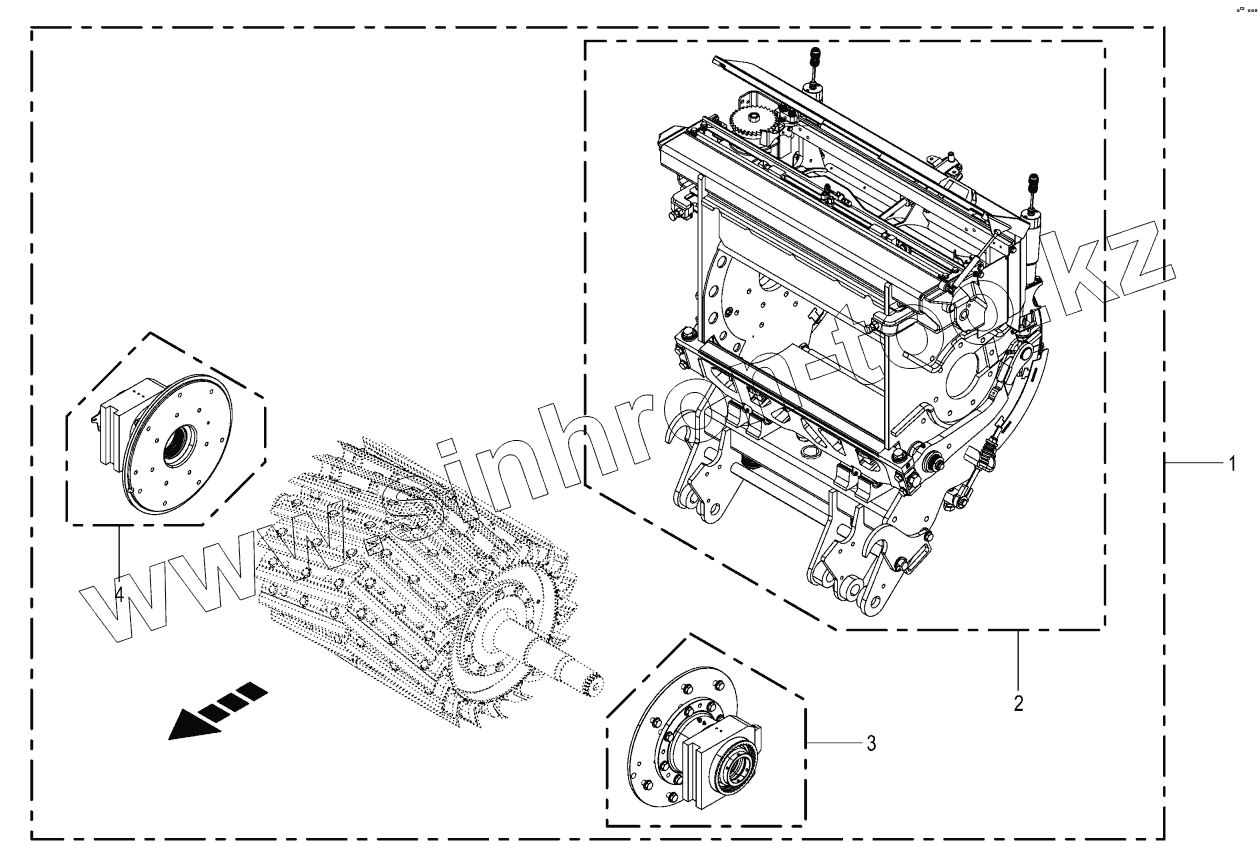

Позиция на иллюстрации	Заводской номер детали		Название детали
1	20 025 413 2		Chop unit 20 grass uni spr moun.
1	20 025 414 2		Chop unit 28 dum bl uni spr moun
1	20 021 497 1		Chop. unit 40 m. blades assem.
2	20 221 243 3		Mount assembled foraging unit
3	00 214 220 0		Drum bearing lh. assembl.
4	00 215 475 0		Drum bearing rh. assembl.

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
